STM32U545xx
Package information
279

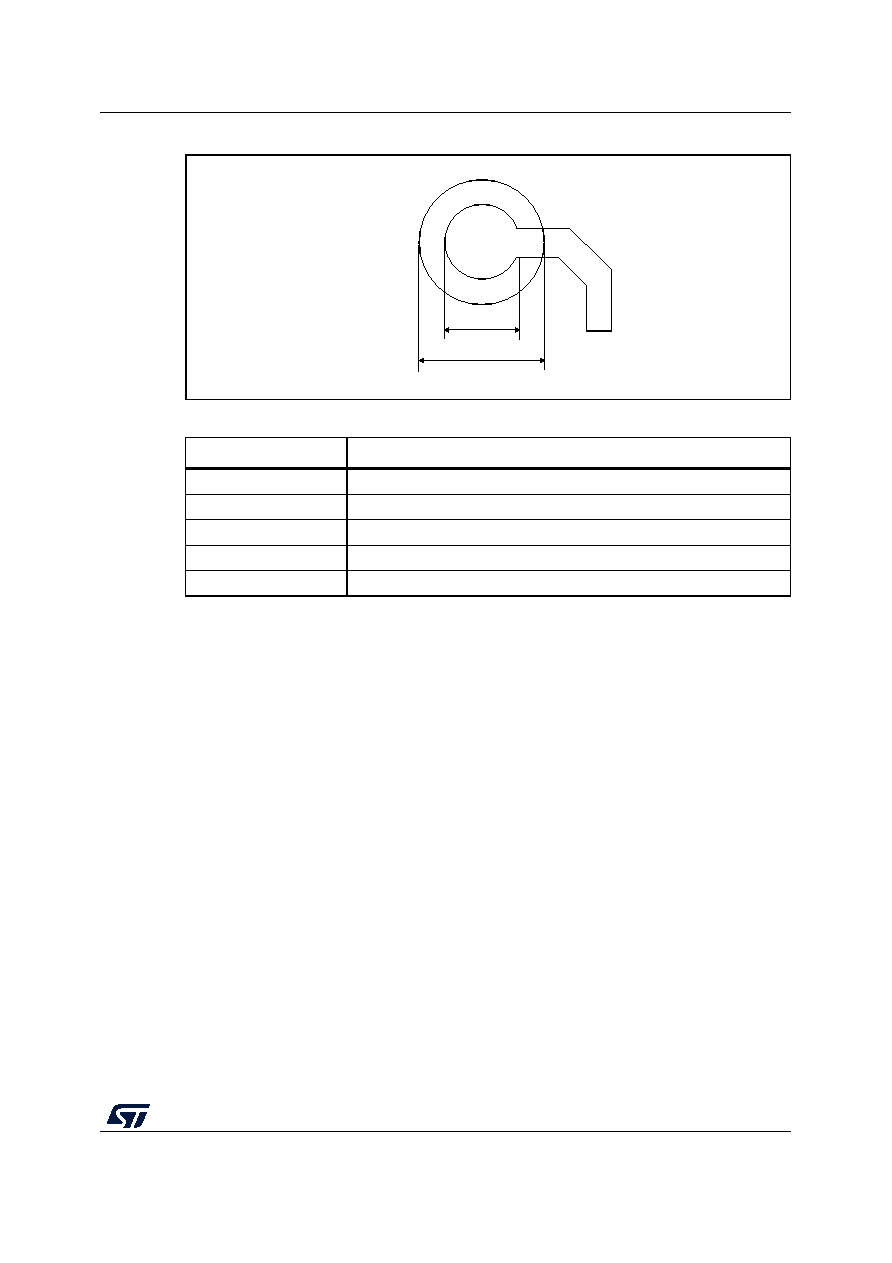

Figure 69. WLCSP56 - Recommended footprint
Table 140. WLCSP56 - Recommended PCB design rules
Dimension
Recommended values
Pitch
0.400 mm
Dpad
0,250 mm
Dsm
0.325 mm typ. (depends on soldermask registration tolerance)
Stencil opening
0.325 mm
Stencil thickness
0.100 mm
BGA_WLCSP_FT_V1
Dsm
Dpad
