B.
In GPMC_WAIT[j], j is equal to 0 or 1.
Figure 6-28. GPMC and NOR Flash—Synchronous Burst Write (GPMCFCLKDIVIDER = 0)
GPMC_CLK
GPMC_CSn[i]
GMPC_BE0n_CLE
GPMC_BE1n
GPMC_A[27:17]
GPMC_AD[15:0]
GPMC_ADVn_ALE
GPMC_OEn_REn
GPMC_WAIT[j]
Valid
Valid
Address (MSB)
Address (LSB)
D0
D1
D2
D3
F4
F6
F4
F2
F8
F8
F10
F13
F12
F12
F11
F9
F7
F3
F0
F1
F1
F5
F6
F7
GPMC_04
A.
In GPMC_CSn[i], i is equal to 0, 1, 2 or 3.
B.
In GPMC_WAIT[j], j is equal to 0 or 1.

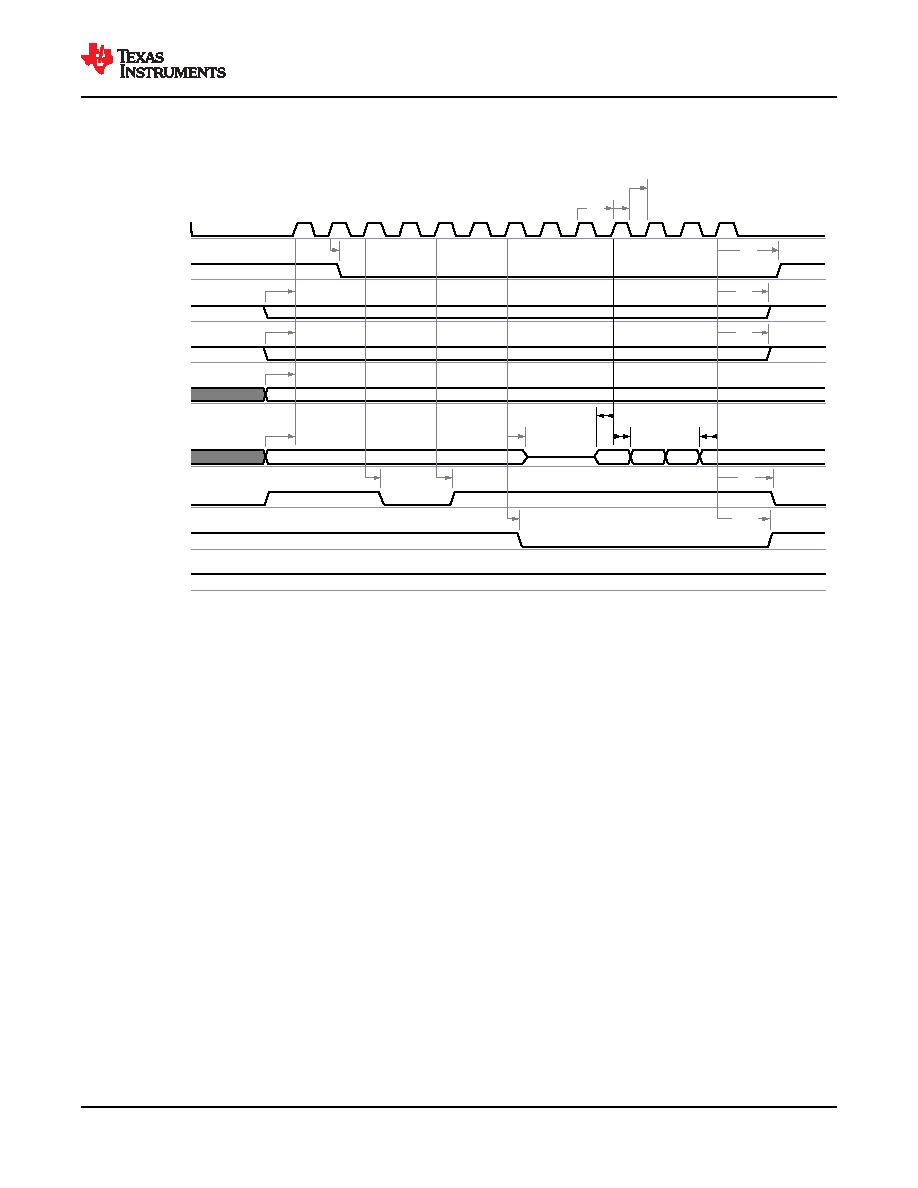

Figure 6-29. GPMC and Multiplexed NOR Flash — Synchronous Burst Read
www.ti.com
AM2612, AM2611, AM2611-Q1, AM2612-Q1
SPRSPA7C – SEPTEMBER 2024 – REVISED JULY 2025
Copyright © 2025 Texas Instruments Incorporated
Submit Document Feedback
131
Product Folder Links: AM2612 AM2611 AM2611-Q1 AM2612-Q1
