RGMII[x]_TXC

(A)

RGMII[x]_TD[3:0]

(B)

RGMII[x] TX_CTL

(B)

RGMII9

1st Half-byte

TXERR

TXEN

2nd Half-byte

RGMII7

RGMII8

RGMII6

RGMII10

TXC is delayed internally before being driven to the RGMII[x]_TXC pin. This internal delay is by default enabled after POR.

Data and control information is received using both edges of the clocks. RGMII[x]_TD[3:0] carries data bits 3-0 on the rising edge of

RGMII[x]_TXC and data bits 7-4 on the falling edge of RGMII[x]_TXC. Similarly, RGMII[x]_TX_CTL carries TXEN on rising edge of

RGMII[x]_TXC and TXERR on falling edge of RGMII[x]_TXC.

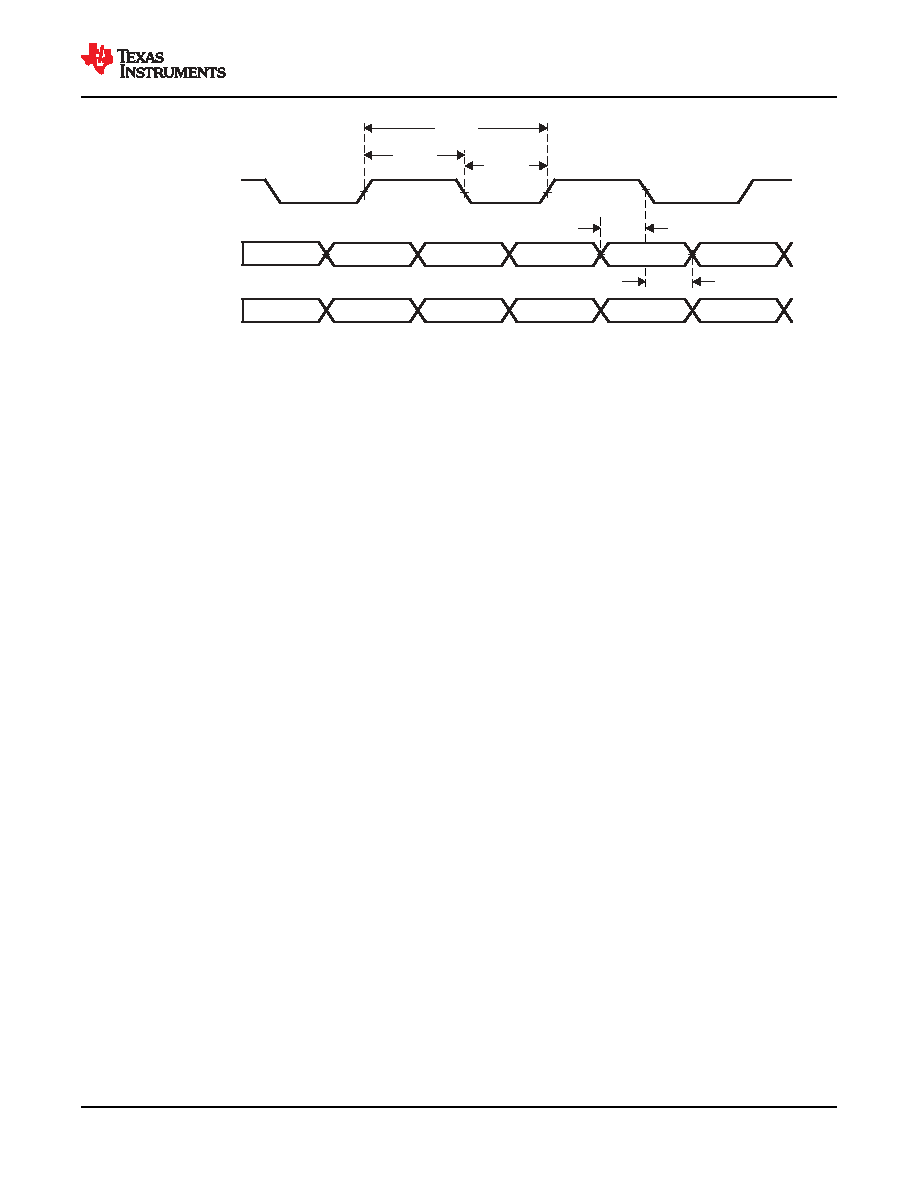

Figure 6-12. CPSW RGMII[x]_TXC, RGMII[x]_TD[3:0], and RGMII[x]_TX_CTL Switching Characteristics -

RGMII Mode
