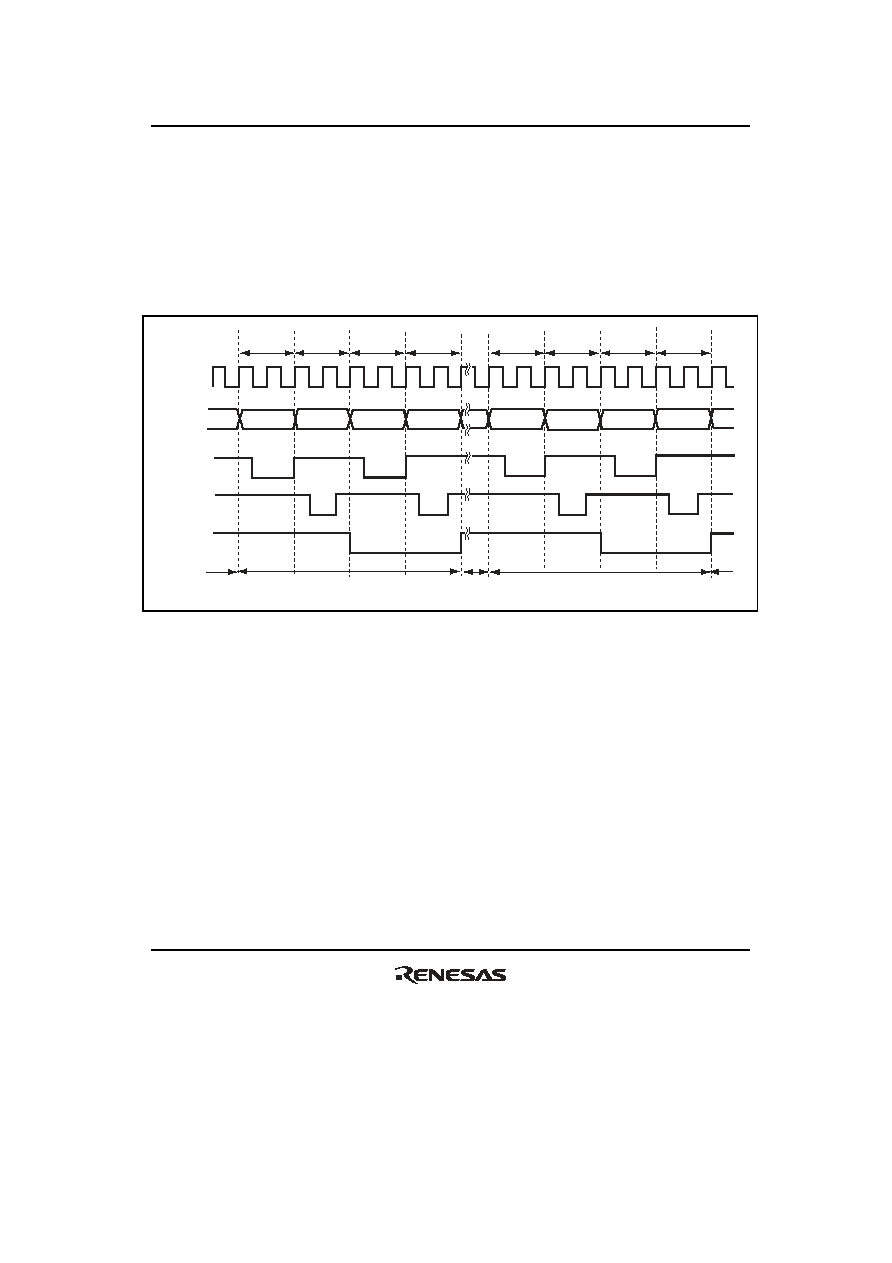

465 / 1504 page  Section 10 DMA Controller (DMAC) Rev. 2.00 Sep. 24, 2008 Page 433 of 1468 REJ09B0412-0200 (3) Block Transfer Mode In block transfer mode, the bus is released every time a 1-block size of transfers at a single transfer request is completed. In figure 10.28, the TEND signal output is enabled and data is transferred in words from the external 16-bit 2-state access space to the external 16-bit 2-state access space in block transfer mode. DMA read cycle DMA read cycle DMA write cycle Address bus DMA write cycle DMA read cycle DMA read cycle DMA write cycle DMA write cycle B φ RD LHWR, LLWR TEND Bus released Bus released Bus released Last block transfer cycle Block transfer Figure 10.28 Example of Transfer in Block Transfer Mode |
|
