Section 12 Data Transfer Controller (DTC)
Rev. 2.00 Sep. 24, 2008 Page 585 of 1468
REJ09B0412-0200
Clock
Address
DTC activation
request
DTC request
RW
R
W
Vector
read
Transfer
information
read
Data
transfer
Transfer
information
write
Transfer
information
read
Data
transfer
Transfer
information
write

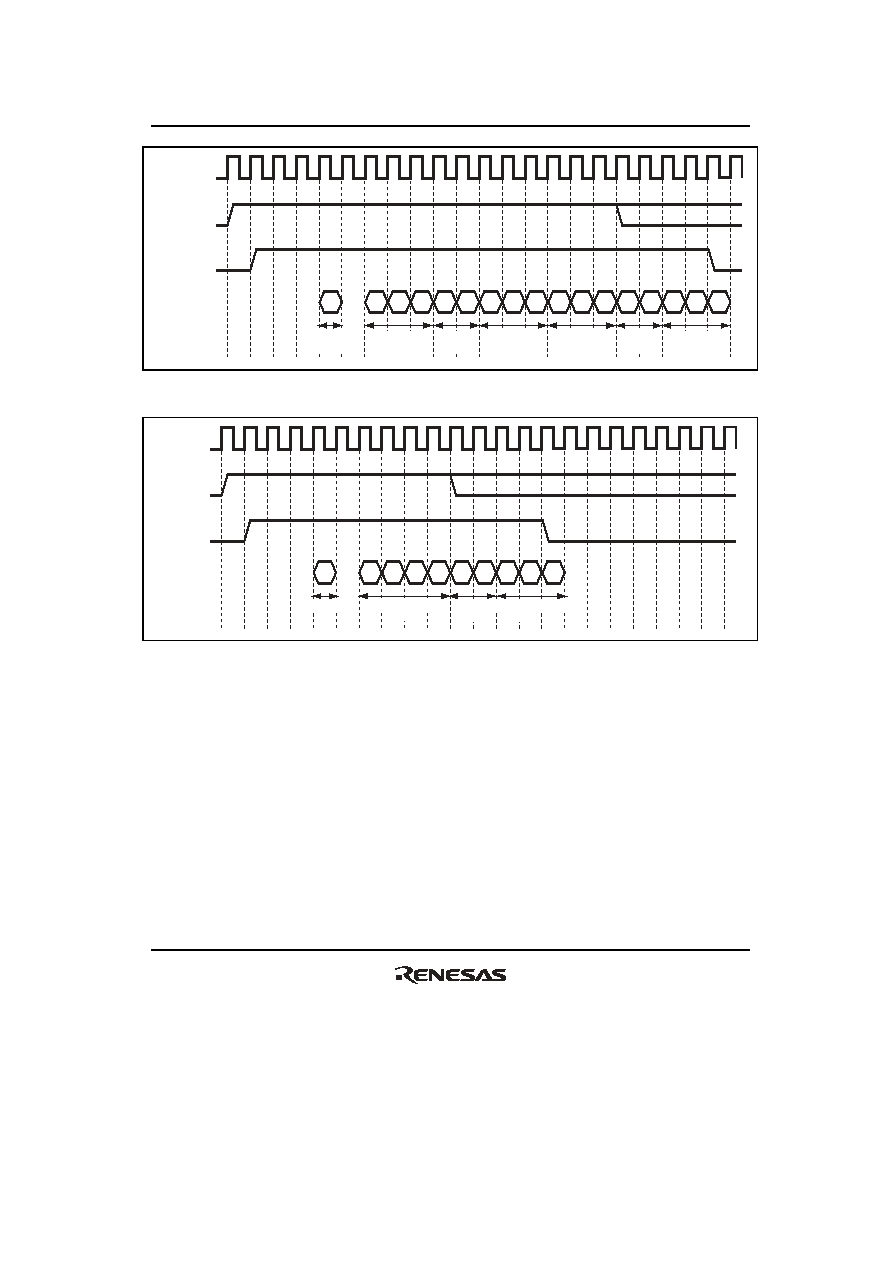

Figure 12.13 DTC Operation Timing (Example of Short Address Mode in Chain Transfer)
Clock
Address
DTC activation
request
DTC request
R
W
Vector read
Transfer information
read
Data
transfer
Transfer information
write
Figure 12.14 DTC Operation Timing
(Example of Full Address Mode in Normal Transfer Mode or Repeat Transfer Mode)
