Section 3 MCU Operating Modes
Rev. 2.00 Sep. 24, 2008 Page 89 of 1468
REJ09B0412-0200
External address space
On-chip ROM
Mode 6
On-chip ROM enabled
extended mode
(Advanced mode)
External address space
External address space
Access prohibited area
On-chip RAM/
External address space
*
2
On-chip I/O registers
On-chip I/O registers
Reserved area*
1
H'000000
H'100000
H'FEE000
H'FD9000
H'FDC000
H'FFEA00
H'FFFF00
H'FFFF20
H'FFFFFF
H'FEC000
External address space
H'FFC000
1.
Do not access the reserved area.
2.
This area is specified as the external address space by clearing the RAME bit in SYSCR to 0.
Notes:

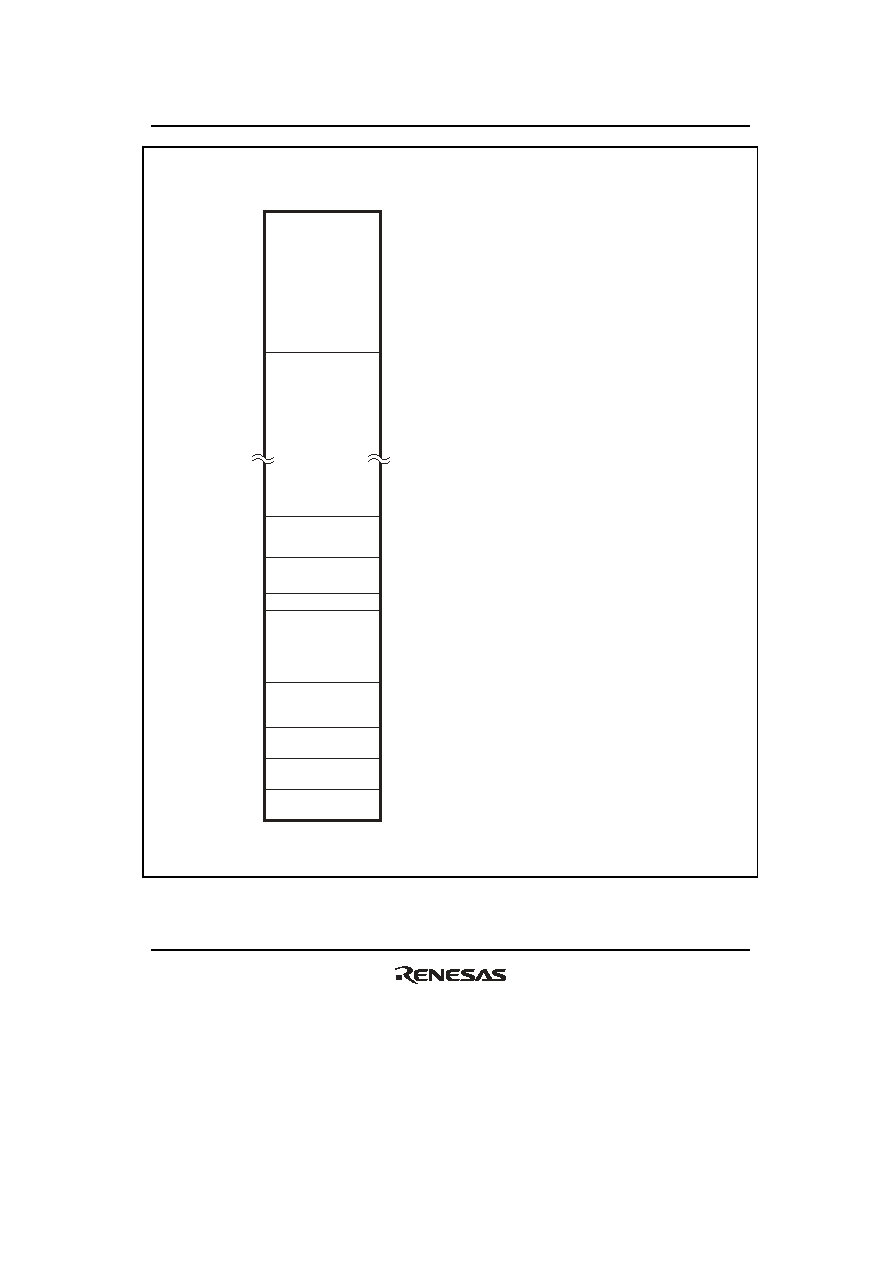

Figure 3.1 Address Map in Each Operating Mode of H8SX/1668R and H8SX/1668M (2)
