Spiegazioni elettronici CMOS QUAD 3-STATE DIFFERENTIAL LINE RECEIVER

ST34C86 Datasheet (PDF)

Go To PDF Page Scarica Scheda tecnica
ST34C86 Datasheet PDF - STMicroelectronics

Il numero della parte ST34C86
Scarica  ST34C86 Click to download

Grandezza file   191.51 Kbytes
Page   10 Pages
Produttore elettronici  STMICROELECTRONICS [STMicroelectronics]
Homepage  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics
Spiegazioni elettronici CMOS QUAD 3-STATE DIFFERENTIAL LINE RECEIVER

ST34C86 Scheda tecnica (HTML) - STMicroelectronics

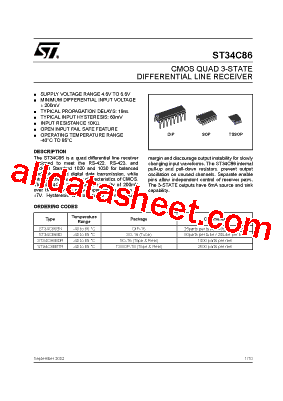

ST34C86 Datasheet HTML 1Page - STMicroelectronics ST34C86 Datasheet HTML 2Page - STMicroelectronics ST34C86 Datasheet HTML 3Page - STMicroelectronics ST34C86 Datasheet HTML 4Page - STMicroelectronics ST34C86 Datasheet HTML 5Page - STMicroelectronics ST34C86 Datasheet HTML 6Page - STMicroelectronics ST34C86 Datasheet HTML 7Page - STMicroelectronics ST34C86 Datasheet HTML 8Page - STMicroelectronics ST34C86 Datasheet HTML 9Page - STMicroelectronics ST34C86 Datasheet HTML 10Page - STMicroelectronics

ST34C86 Dettagli del prodotto

DESCRIPTION
The ST34C86 is a quad differential line receiver designed to meet the RS-422, RS-423, and Federal Standard 1020 and 1030 for balanced and unbalanced digital data transmission, while retaining the low power characteristics of CMOS. The ST34C86 has an input sensivity of 200mV over the common mode input voltage range of ±7V. Hysteresis is provided to improve noise margin and discourage output instability for slowly changing input waveforms. The ST34C86 internal pull-up and pull-down resistors. prevent output oscillation on unused channels. Separate enable pins allow independent control of receiver pairs. The 3-STATE outputs have 6mA source and sink capability.

■ SUPPLY VOLTAGE RANGE 4.5V TO 5.5V
■ MINIMUM DIFFERENTIAL INPUT VOLTAGE ± 200mV
■ TYPICAL PROPAGATION DELAYS: 19ns
■ TYPICAL INPUT HYSTERESIS: 60mV
■ INPUT RESISTANCE 10KΩ
■ OPEN INPUT FAIL SAFE FEATURE
■ OPERATING TEMPERATURE RANGE -40°C TO 85°C
