DS31256 256-Channel, High-Throughput HDLC Controller
47 of 183

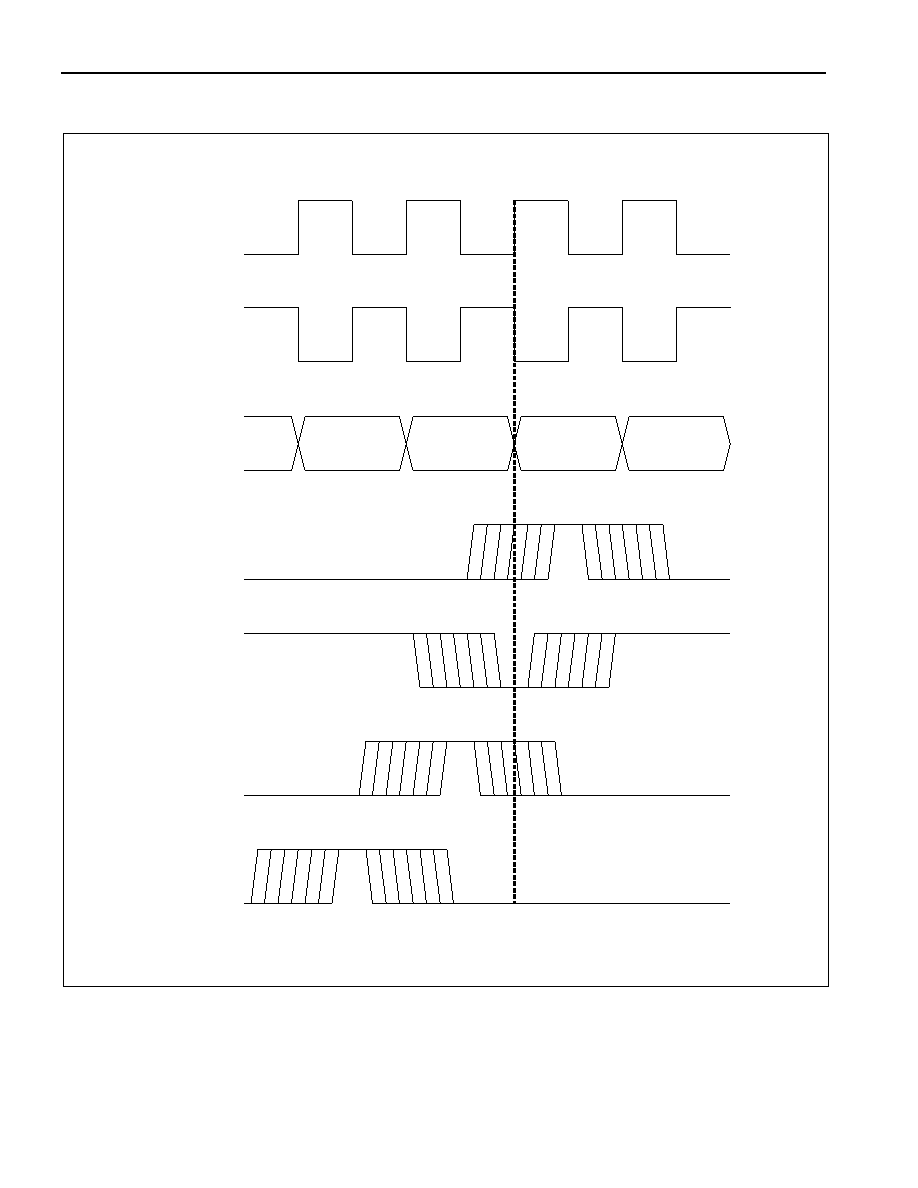

Figure 6-2. Port Timing (Channelized and Unchannelized Applications)
RC[n] / TC[n]
Normal Mode
RD[n]
TD[n]
RS[n] / TS[n]
0 Clock Early &
Not Inverted
RS[n] / TS[n]
1/2 Clock Early &
Inverted
RS[n] / TS[n]
1 Clock Early &
Not Inverted
RS[n] / TS[n]
2 Clocks Early &
Not Inverted
Bit 0
Bit 192 or 255
or 511 or 1023
Bit 1
Bit 191 or 254
or 510 or 1022
First Bit of
the Frame
Last Bit of
the Frame
RC[n] / TC[n]
Inverted Mode
tdm_tim
