AD8232
Data Sheet
Rev. B | Page 14 of 28

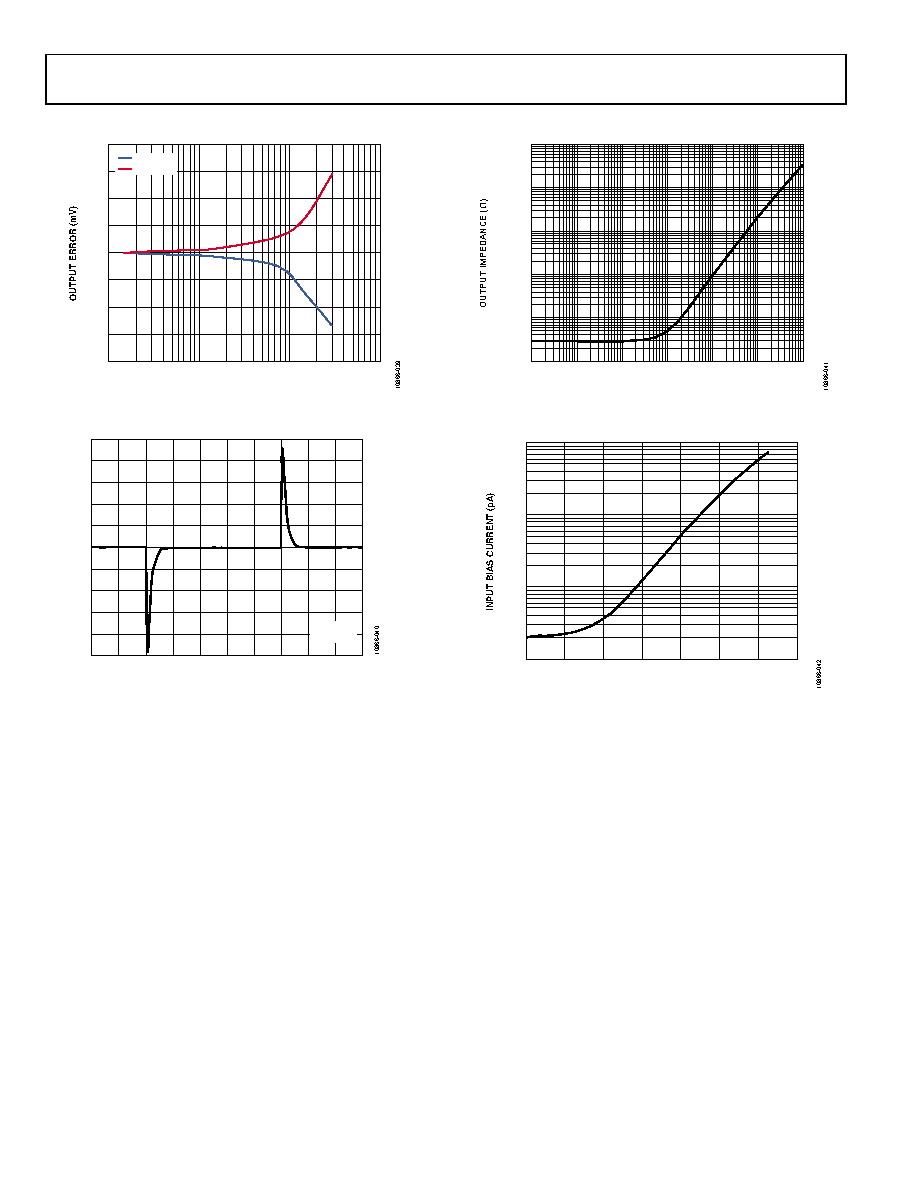

REFERENCE BUFFER PERFORMANCE CURVES
Figure 39. Reference Buffer Load Regulation
Figure 40. Reference Buffer
Load Transient Response (100 μA Load Change)
Figure 41. Reference Buffer Output Impedance vs.
Frequency
Figure 42. Reference Buffer Bias Current vs. Temperature
20
–20
0.01
10
1
0.10
LOAD CURRENT (mA)
–15
–10
–5
0
5
10
15
SOURCE
SINK
20mV/DIV
10µs/DIV
10,000.0
1,000.0
1.0
10.0
100.0
0.1
0.1
1
10
100k
10k
1k
100
FREQUENCY (Hz)
1000
100
10
1
–40
100
TEMPERATURE (°C)
–20
20
0
40
60
80
