2SC4672-R Scheda tecnica(PDF) 1 Page - Micro Commercial Components |
|
|
|||||||||||||||||||||||||||||
2SC4672-R Scheda tecnica(HTML) 1 Page - Micro Commercial Components |
|
|

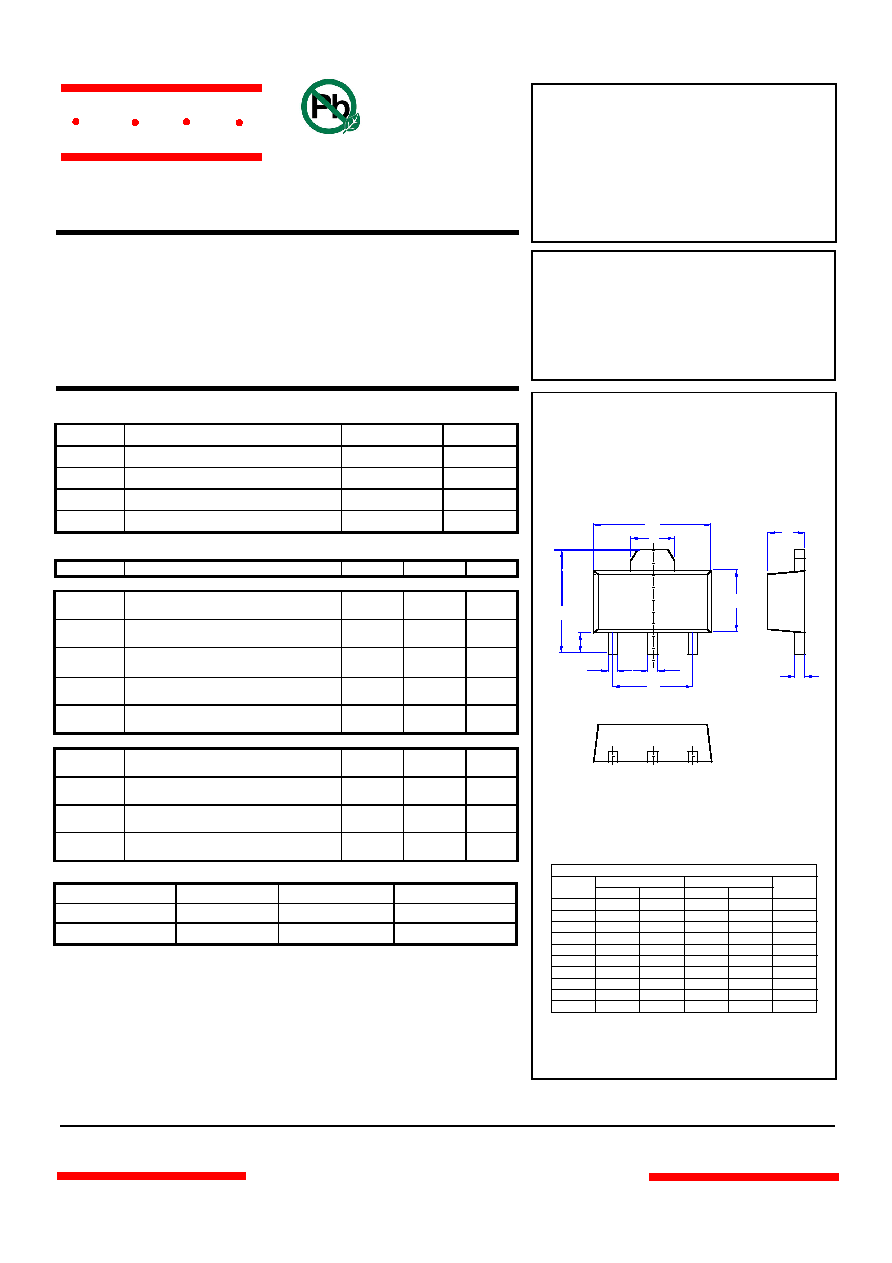

1 / 3 page  NPN Plastic-Encapsulate Transistors Features • Ideally Suited For Automatic Instertion • Untral Small Surface Mount Package SOT-89 omponents 20736 Marilla Street Chatsworth !"# $% !"# MCC Revision: B 2013/01/01 TM Micro Commercial Components www.mccsemi.com 1 of 3 Maximum Ratings @ Ta = 25 (unless otherwise noted) Symbol Parameter Value Unit IC Collector Current 2 A PD Total Device Dissipation 0.5 W TJ Junction Temperature 150 TSTG Storage Temperature Range -55 to +150 Electrical Characteristics @ 25 OC Unless Otherwise Specified Symbol Parameter Min Max Units OFF CHARACTERISTICS V(BR)CEO Collector-Emitter Breakdown Voltage (IC=1mAdc,IB=0) 50 V V(BR)CBO Collector-Base Breakdown Voltage (IC=50 µAdc,I E=0) 60 V V(BR)EBO Collector-Base Breakdown Voltage (IE=50 µAdc,I C=0) 6V ICBO Collector-Base Cutoff Current (VCB=60Vdc, IE=0) 0.1 µAdc IEBO Emitter-Base Cutoff Current (VEB=5Vdc, IC=0) 0.1 uAdc ON CHARACTERISTICS hFE DC Current Gain (IC=0.5Adc, VCE=2Vdc) 82 270 VCE(sat) Collector-Emitter Saturation Voltage (IC=1Adc, IB=50mAdc) 0.35 Vdc fT Transition Frequency (VCE=2Vdc,IC=500mAdc,f=100MHZ) 210(typ) MHZ Cob Collector Output Capacitance (VCB=10Vdc,IE=0,f=1MHZ) 25(typ) PF CLASSIFICATION OF hFE Rank P Q R Range 82-180 120-270 180~390 Marking DKP DKQ DKR 2SC4672-R 25 B A E D G H F K J C 1.55 .061 REF. 123 1.BASE 2.COLLECTOR 3.EMITTER • Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) • Epoxy meets UL 94 V-0 flammability rating • Moisure Sensitivity Level 1 2SC4672-P 2SC4672-Q Halogen free available upon request by adding suffix "-HF" • |
