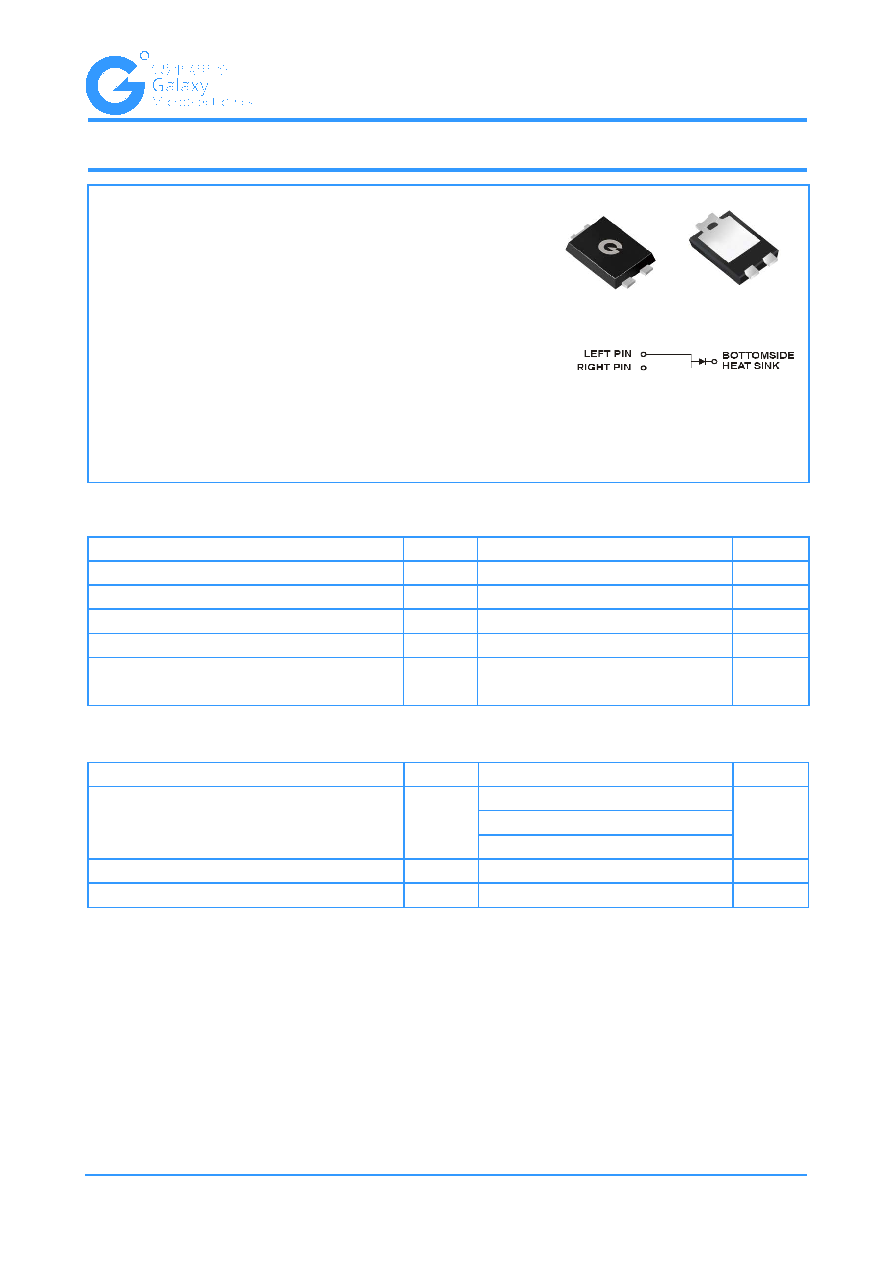

Schottky Barrier Rectifiers
D15PS50L
T2B431AA
www.gmesemi.com
Rev.B
Production specification
Features
Metal silicon junction, majority carrier conduction
High surge capability
High temperature soldering guaranteed:
260°C/10 seconds
High current capability, low forward voltage drop
RoHS Compliant
Mechanical Data
Case: TO-277B molded plastic
Molding compound, UL flammability classification rating 94V-0
Terminals: Solder plated, solderable per MIL- STD-202,Method 208
Maximum Ratings (@TA = 25°C unless otherwise specified)
Characteristic
Symbol
D15PS50L
Units
Peak repetitive reverse voltage
VRRM
50
V
RMS reverse voltage
VRMS
35
V
DC blocking voltage
VDC
50
V
Maximum average forward output current
IF(AV)
15
A
Peak forward surge current,
8.3ms single half-sine-wave
IFSM
250
A
Thermal Characteristics
Note:
1. Device mounted on PCB with 10 mm x 20 mm x 0.1mm copper pad areas
Parameter
Symbol
D15PS50L
Units
Typical thermal resistance
(Note 1)
R ΘJA
R ΘJC
R ΘJL
60
°C /W
20
15
Operating junction temperature range
TJ
- 55 ---- + 150
°C
Storage temperature range
TSTG
- 55 ---- + 150
°C
Top View
Bottom View
