Data Sheet
ADL5530
Rev. C | Page 13 of 16

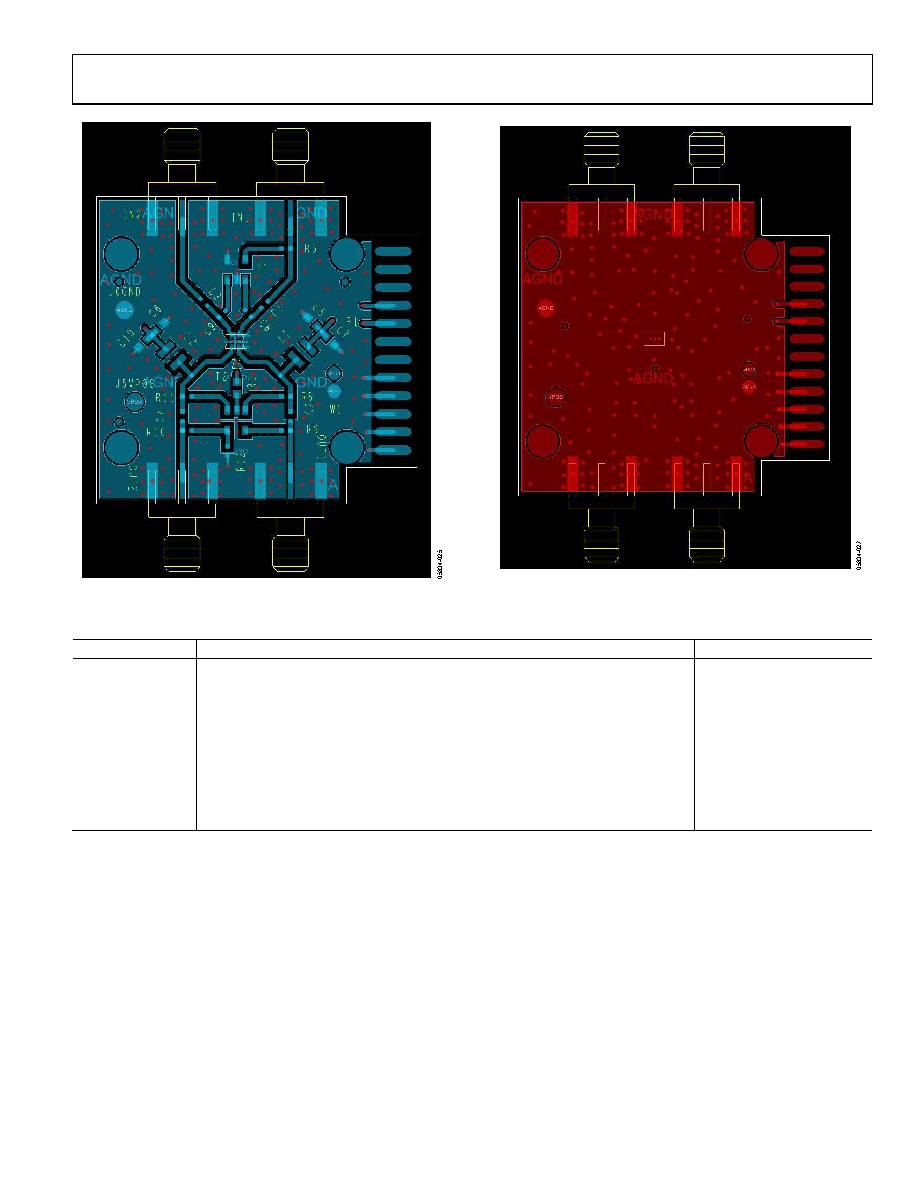

Figure 26. Evaluation Board Layout, Top Layer
Figure 27. Evaluation Board Layout, Bottom Layer
Table 6. Evaluation Board Configuration Options
Component
Function
Default Value
C1, C2
AC-coupling capacitors.
10 nF 0402
C5
Power supply decoupling capacitor.
10 nF 0603
L1
DC bias inductor.
470 nH 1008
J5, J6
Clip-on terminals for power supply.
J5 = VPOS
J6 = GND
W1
2-pin jumper for connection of ground and supply via cable.
P1
Edge connector.
P1: A1 to A5 = GND
P1: B1 to B5 = GND
P1: A8 to A9 = VPOS
P1: B8 to B9 = VPOS
