Cool-Power® ZVS Switching Regulators
Rev 1.5
Page 6 of 41
03/2018
PI352x-00
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
VS1
VS1
VS1
VS1
VS1
VS1
VS1
VS1
VS1
VS1
PGND
PGND
PGND
PGND
PGND
SYNC0
TEST5
EN
SGND
PGND
PGND
PGND
PGND
SYNC1
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
VOUT
TEST2
SGND
SGND
SGND
SGND
SGND
SGND
SGND
VOUT
VDR
TEST1
TEST3
TEST4
PWRG0
SGND
SGND
EA0
EAIN
VDIFF
VSN
VSP
TRK
COMP
1
2
3
4
5
6
7
8
9
10
11
12
13
14

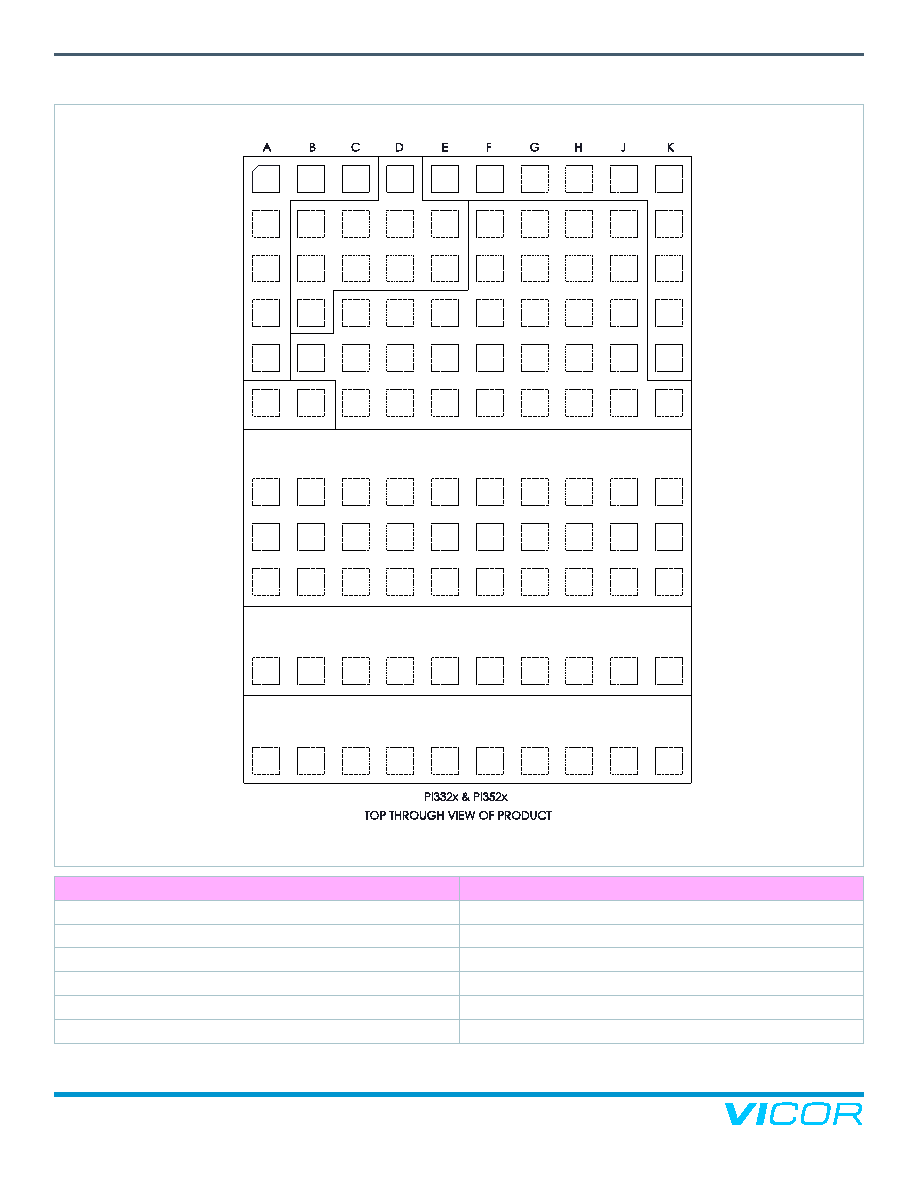

Package Pinout
Pin Block Name
Group of pins
VIN
A8-10, B8-10, C8-10, D8-10, E8-10, F8-10, G8-10, H8-10, J8-10, K8-10
VS1
A14, B14, C14, D14, E14, F14, G14, H14, J14, K14
PGND
A12, B12, C12, D12, E12, F12, G12, H12, J12, K12
PGND
B5, C4-6, D4-6, E4-6, F2-6, G2-6, H2-6, J2-6, K6
VOUT
A6, B6
SGND
B2-4, C2-3, D1-3, E2-3
