HMC565LC5

v04.0118

GaAs SMT PHEMT LOW NOISE

AMPLIFIER, 6 - 20 GHz

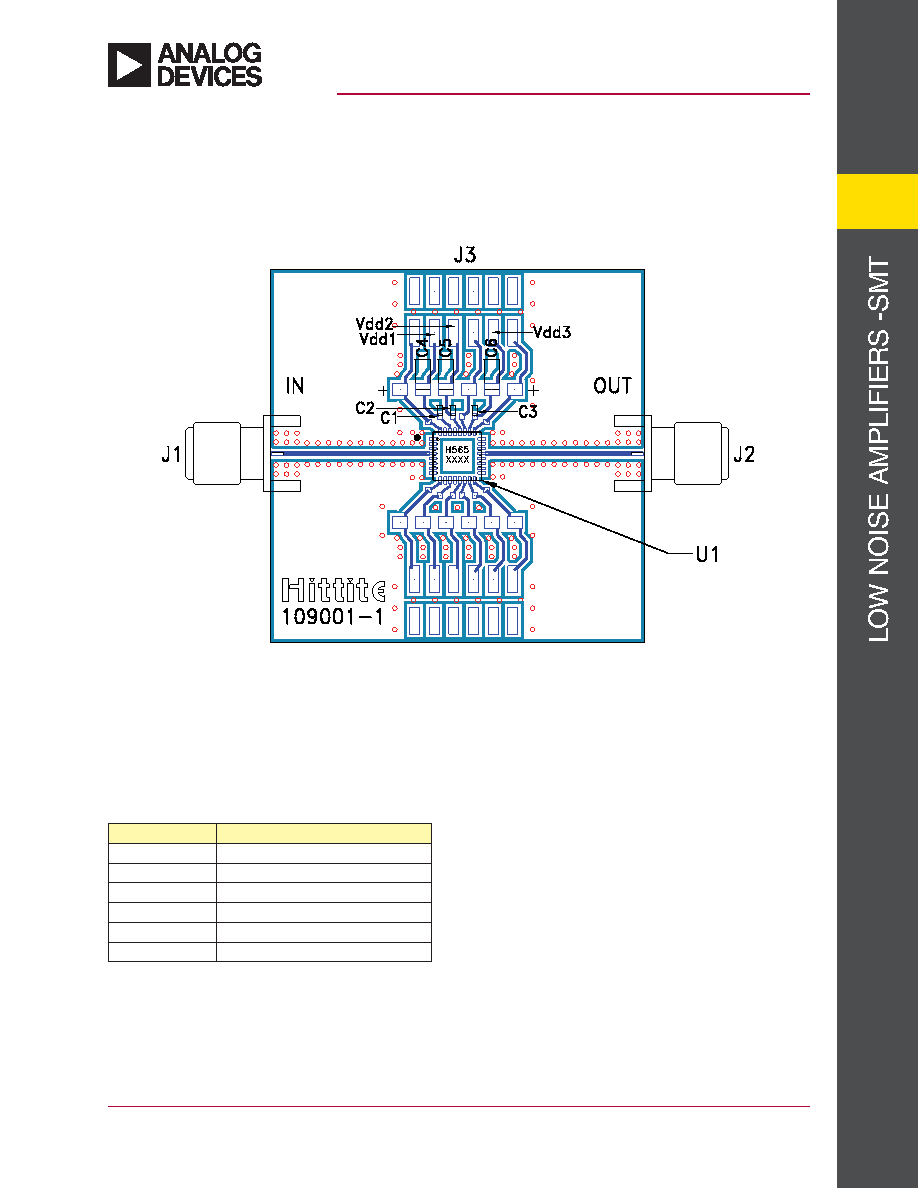

Evaluation PCB

The circuit board used in the application should use

RF circuit design techniques. Signal lines should

have 50 Ohm impedance while the package ground

leads and exposed paddle should be connected

directly to the ground plane similar to that shown.

A sufficient number of via holes should be used to

connect the top and bottom ground planes. The

evaluation board should be mounted to an appro-

priate heat sink. The evaluation circuit board shown

is available from Analog Devices upon request.

Item

Description

J1 - J2

PCB Mount K Connector

J3

2 mm DC Header

C1 - C3

100 pF Capacitor, 0402 Pkg.

C4 - C6

2.2 µF Capacitor, Tantalum

U1

HMC565LC5 Amplifier

109001 Evaluation PCB

[1] Reference this number when ordering complete evaluation PCB

[2] Circuit Board Material: Rogers 4350
