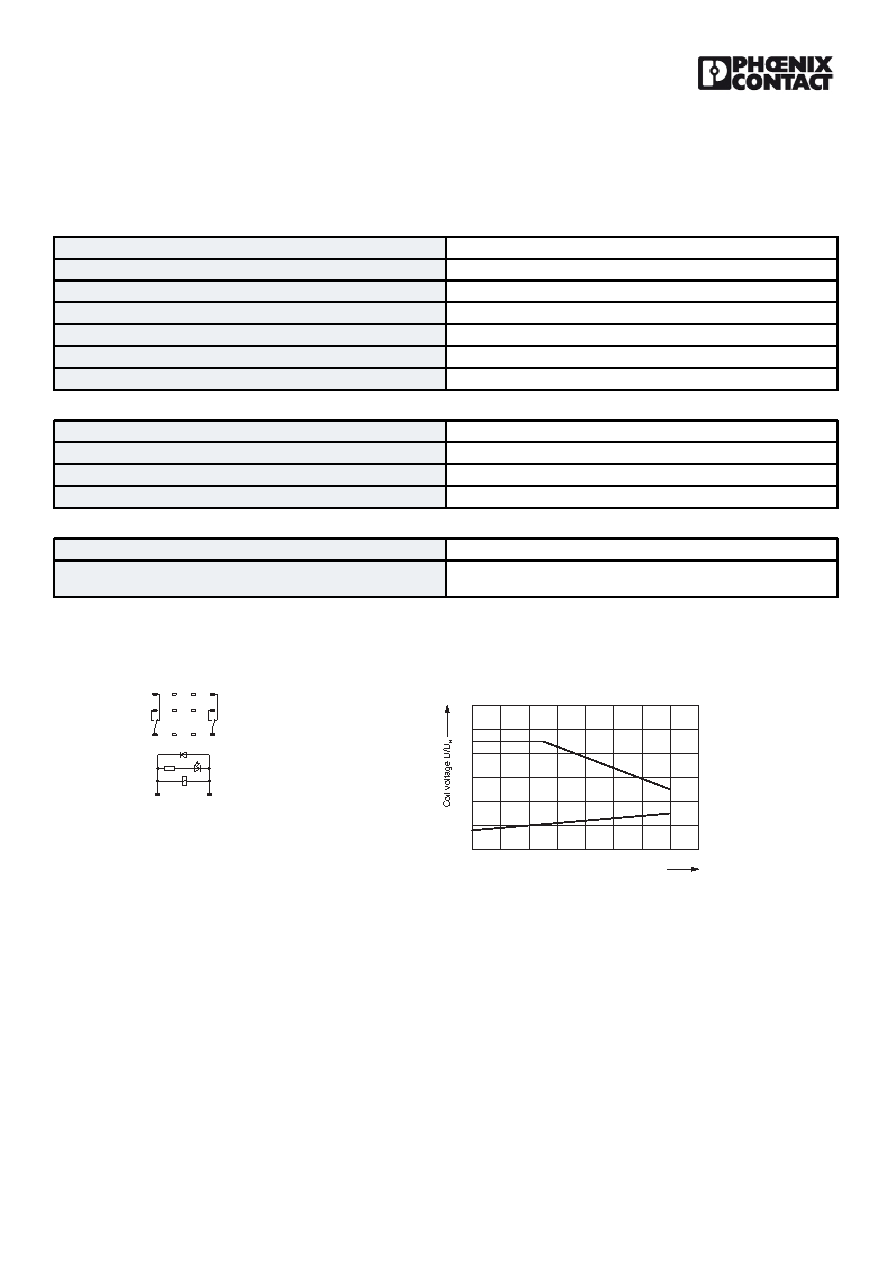

07/23/2018   Page 3 / 5
Relay Module - PR2-RSC3-LDP-24DC/2X21 - 2834643
Technical data
Connection data output side
Connection name
Contact side
Connection method
Screw connection
Stripping length
7 mm
Screw thread
M3
Conductor cross section solid
0.14 mm² ... 2.5 mm²
Conductor cross section flexible
0.14 mm² ... 2.5 mm²
Conductor cross section AWG
26 ... 14
Standards and Regulations
Standards/regulations
IEC 60664
EN 50178
Degree of pollution
3
Overvoltage category
II
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
12
42
A1+
A2-
14
44
11
41
DC coils
Diagram
Ambienttemperature[°C]
0
0,6
0,8
1
1,2
1,4
1,6
1,8
20
40
60
80
10
30
50
70
Operating voltage range of relay Tu=Tcoil



Html Pages

1 2 3 4 5


Scheda tecnica Scarica

Go To PDF Page


Link URL
