MAINSLINK

Patent Pending

36.00

88.00

30.00

Fixing Instructions:

1.

Fix the rear of the MAINSLINK enclosure to the wall using the template above.

2.

Ensure that all fixing screws are screwed flush to the enclosure.

3.

Ensure that the screw covers are put in place. These ensure water proofing and insulate the PCB

from the wall fixing screws. Screw Covers are found inside the rear of the enclosure.

4.

Once the enclosure is fixed to the wall, screw the on front plate with the PCB in place.

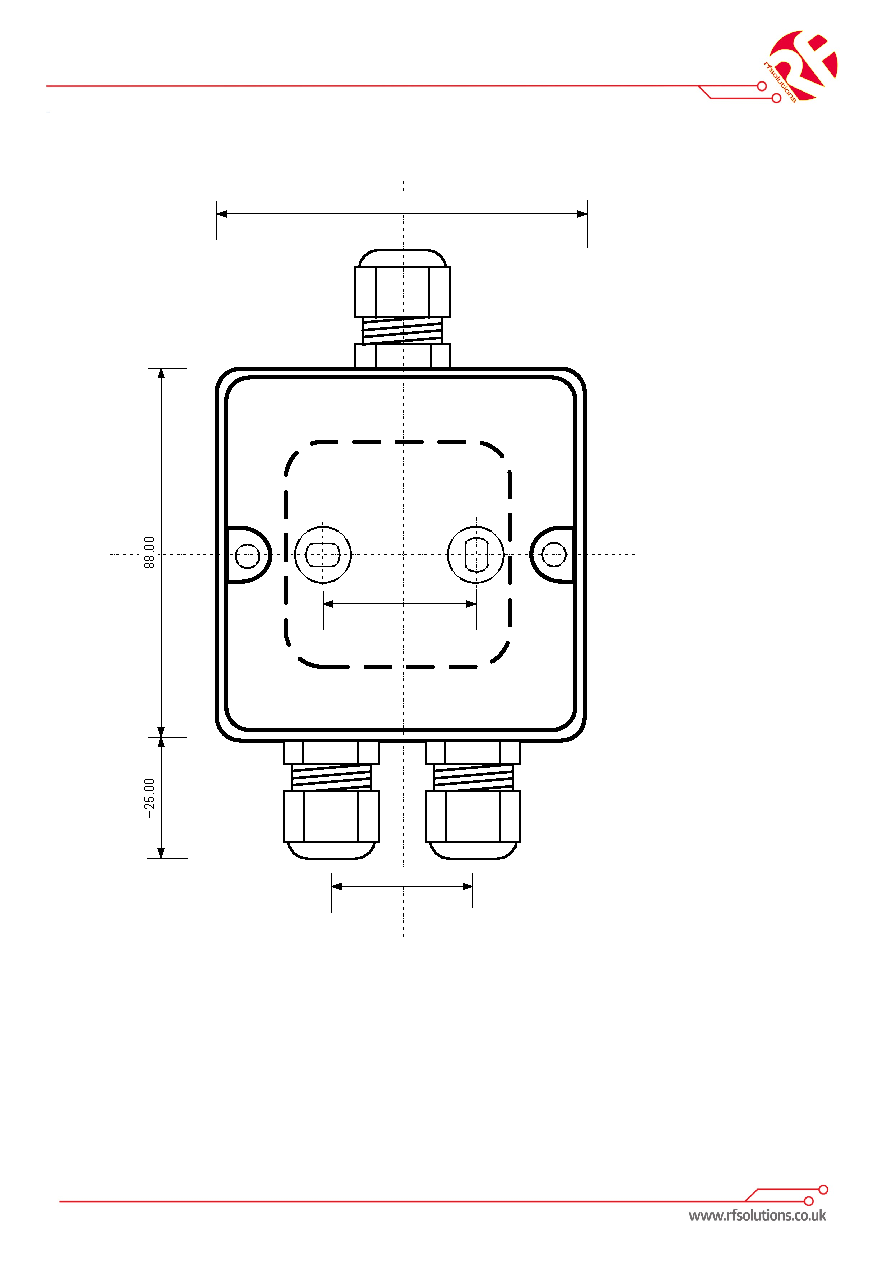

FIG 1.3 Wall Mounting

Template

All dimensions in mm

Dimensions and Wall mounting information:

MAINSLINK is a professional use product and should only be installed by a competent person.
