AD8128
Data Sheet
Rev. A | Page 8 of 12
10
–70
0.001
1k
FREQUENCY (MHz)
0.01
0.1
1
10
100
0
–10
–20
–30
–40
–50
–60
–PSR
+PSR
VOS =0V
VPEAK =0V
VGAIN =0V

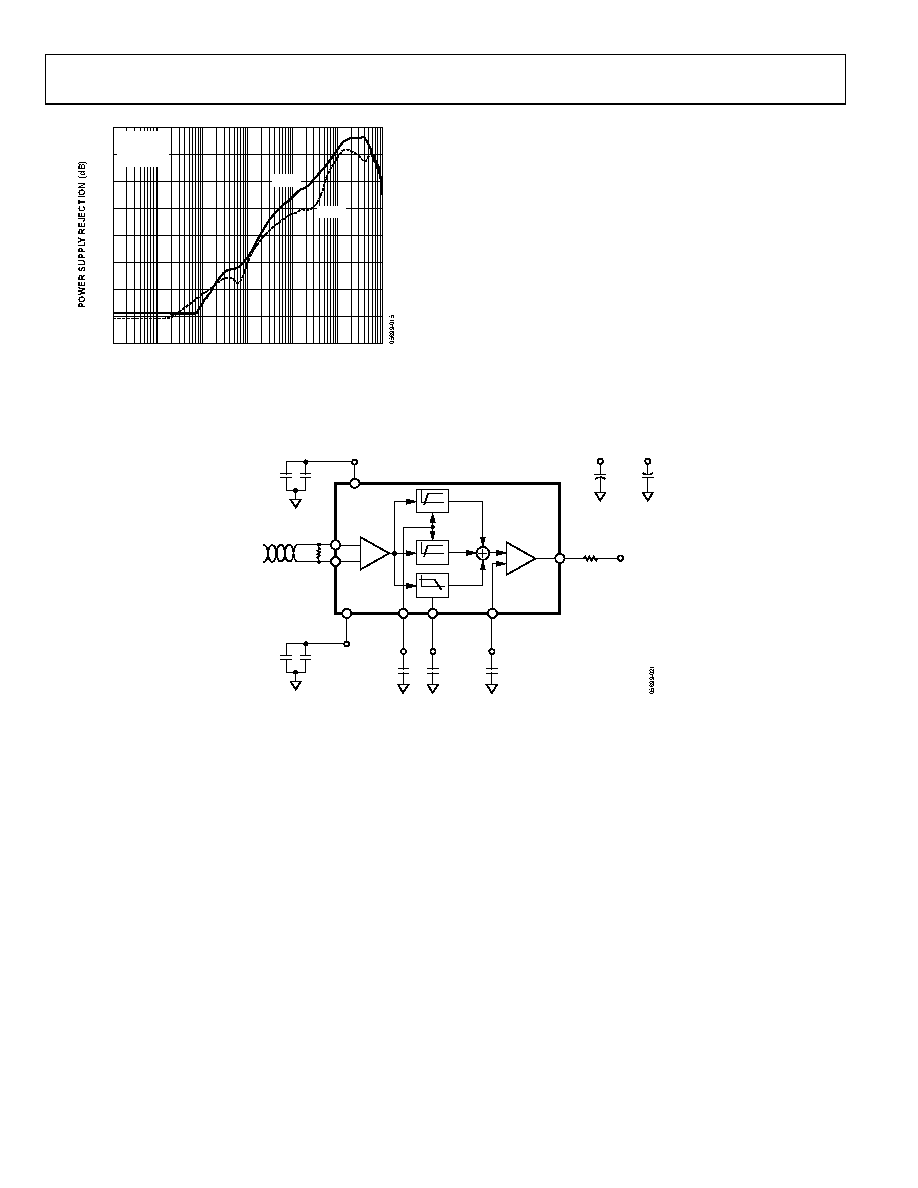

Figure 16. Power Supply Rejection vs. Frequency
TEST CIRCUIT
VOFFSET
VOFFSET
VGAIN
VGAIN
VPEAK
VPEAK
VIN+
VIN–
AD8128
HPF
HPF
LPF
+
+
VS+
VS–
1µF
10µF
10µF
0.01µF
VS+
VS+
1µF
0.01µF
0.01µF
0.01µF
0.01µF
VS–
VS–
50Ω
50Ω
CAT-5
VOUT
Figure 17.
