AD8432
Data Sheet
Rev. D | Page 6 of 32
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
2
1
3
4
5
6
18
17
16
15
14
13
INH2
INL2
COMM
IND1
INL1
INH1
GOL2
OPL2
COM2
COM1
OPL1
GOL1
AD8432
TOP VIEW
(Not to Scale)
NOTES
1. EXPOSED PAD MUST BE CONNECTED
TO GROUND.

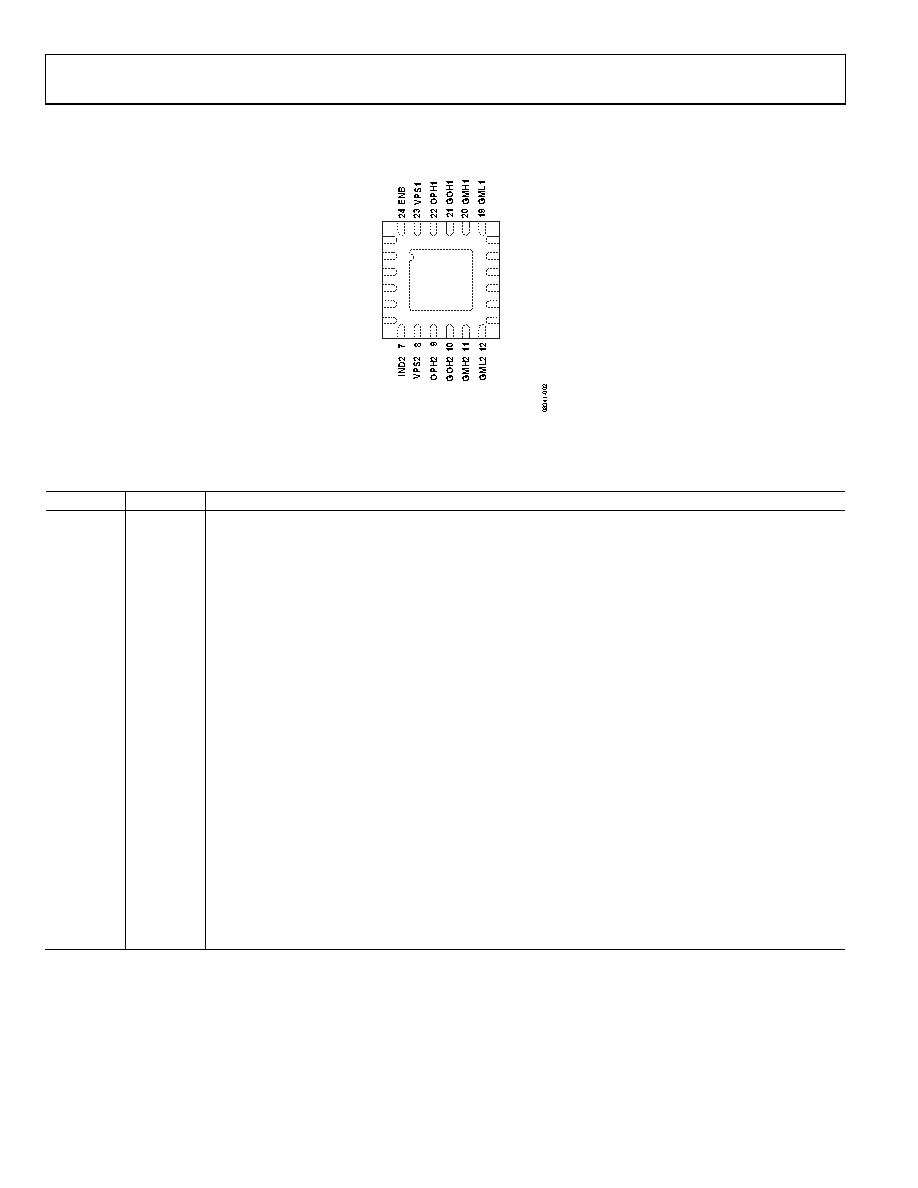

Figure 2. Pin Configuration
Table 4. Pin Function Descriptions
Pin No.
Mnemonic
Description
1
INH1
LNA1 Noninverting Input.
2
INL1
LNA1 Inverting Input (AC-Coupled to Ground).
3, 7
IND1, IND2
Integrated Input Clamping Back-to-Back Diodes.
4
COMM
Input Ground.
5
INL2
LNA2 Inverting Input (AC-Coupled to Ground).
6
INH2
LNA2 Noninverting Input.
8
VPS2
5 V Supply.
9
OPH2
Noninverting Output of LNA2.
10
GOH2
Gain Setting Pin for LNA2.
11
GMH2
Gain Setting Pin for LNA2.
12
GML2
Gain Setting Pin for LNA2.
13
GOL2
Gain Setting Pin for LNA2.
14
OPL2
Inverting Output of LNA2.
15
COM2
LNA2 Output Ground.
16
COM1
LNA1 Output Ground.
17
OPL1
Inverting Output of LNA1.
18
GOL1
Gain Setting Pin for LNA1.
19
GML1
Gain Setting Pin for LNA1.
20
GMH1
Gain Setting Pin for LNA1.
21
GOH1
Gain Setting Pin for LNA1.
22
OPH1
Noninverting Output of LNA1.
23
VPS1
5 V Supply.
24
ENB
Enable.
EPAD
Exposed pad must be connected to ground.
