ADL5240
Data Sheet
Rev. A | Page 20 of 28
LOOP PERFORMANCE
The ADL5240 can beconfigured sothateither theDSAprecedes
the amplifier (see Figure 37)or the amplifier precedesthe DSA
(see Figure 38). The performanceof the loop configurationsis
presented in Figure 20 toFigure27. To improvetheoverall return
loss, a shunt capacitor can be placed between the amplifier and
DSA. This helps to align the phases of the two blocks.
NC
VDD
NC
NC
NC
DSAOUT
NC
NC
NC
NC
VDD
DSAIN
ADL5240
NC
NC
NC
NC
SERIAL PARALLEL INTERFACE
68pF
100pF
1.2nF
470nH
VDD
VDD
0.1µF
RFOUT
RFIN
100pF
1µF
VCC
0.1µF
C1
C2
C3
C4
C5
C6
C7
L1
1
2
3
4
5
6
7
8
9 10
16
15
14
13
12
11
24
23
22
21
20
19
18
17
32 31
25
26
27
28
29
30

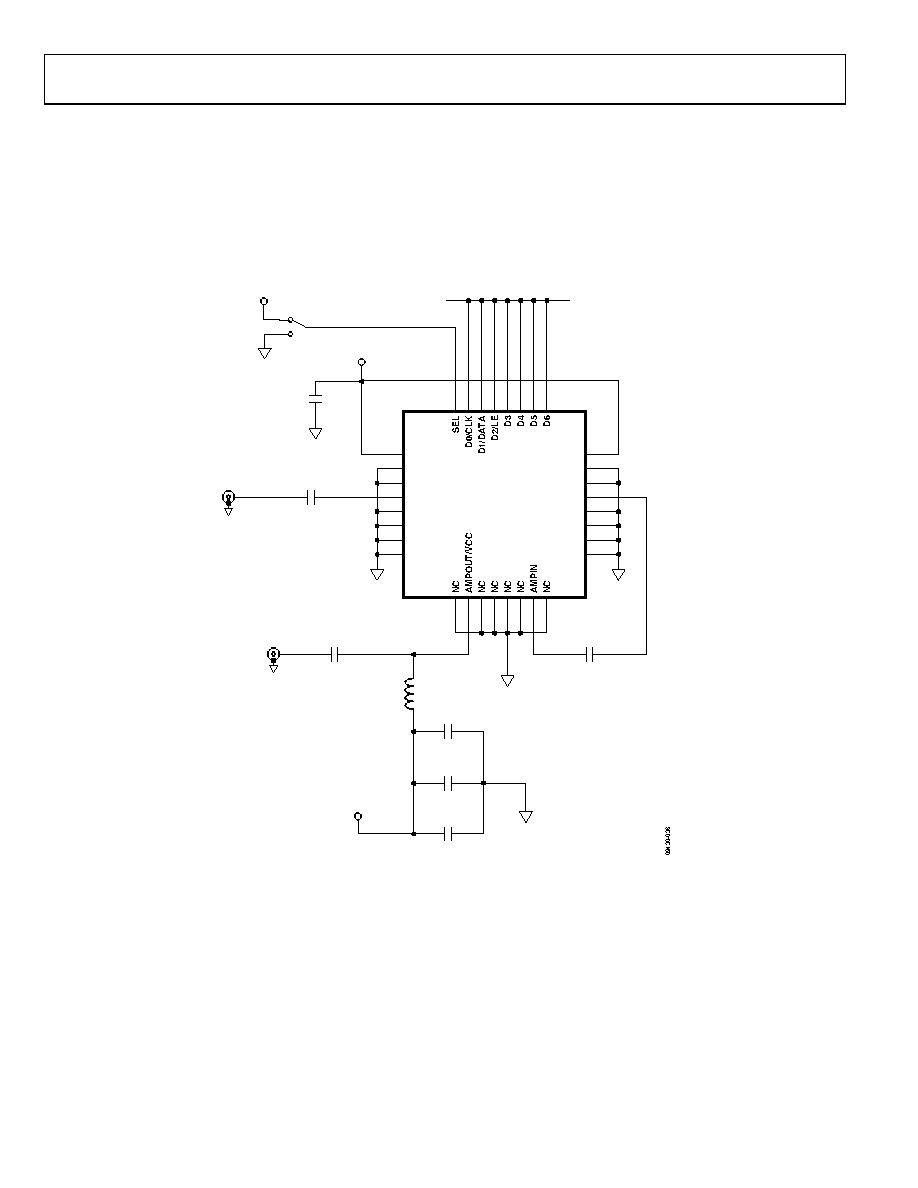

Figure 37. DSA-AMP Loop Configuration
