Data Sheet
SSM6322
Rev. 0 | Page 13 of 20
2.00
1.50
1.25
1.75
1.00
–40
–15
10
35
60
85
TEMPERATURE (°C)
VSY = ±3.3V
RL = 16Ω
RL = 32Ω
RL = 600Ω

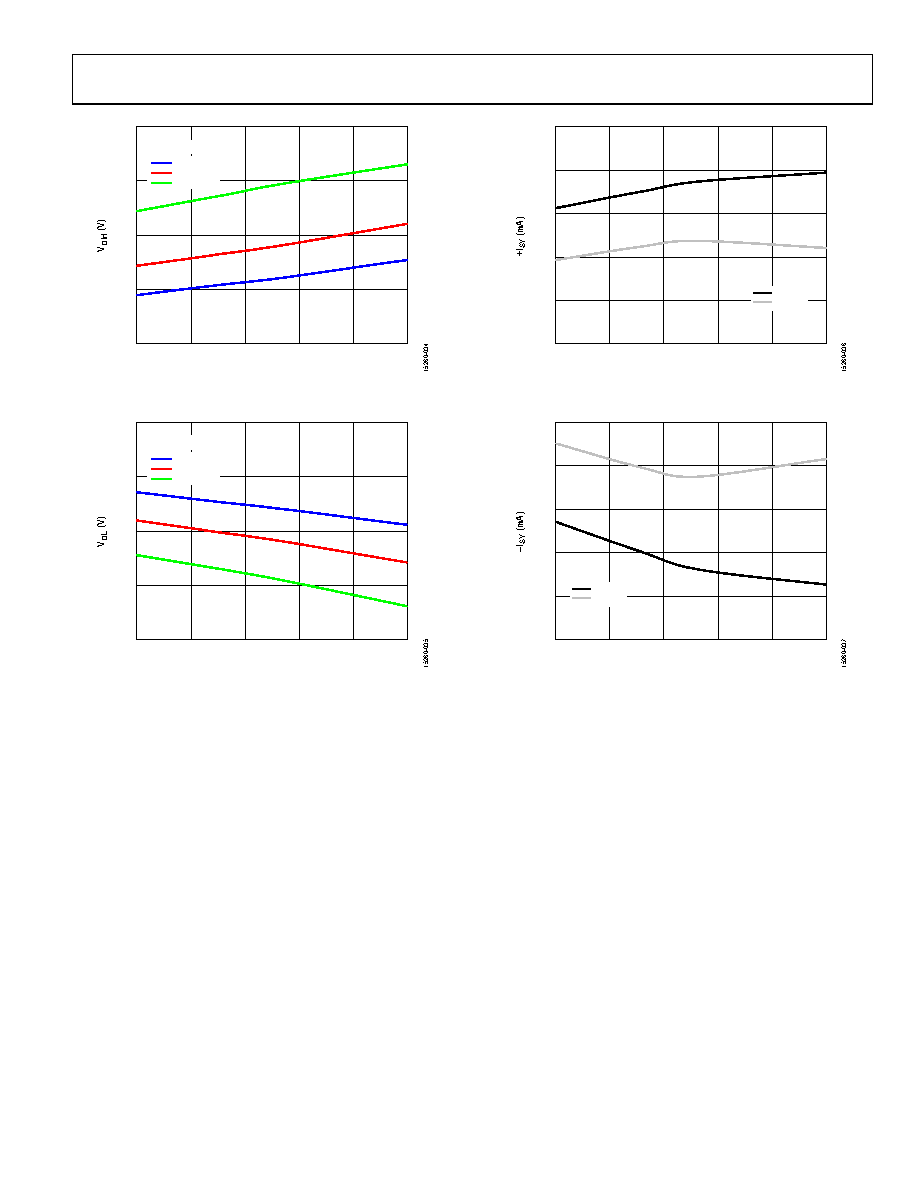

Figure 34. Output Voltage High (VOH) vs. Temperature, VSY = ±3.3 V
–1.00
–1.50
–1.75
–1.25
–2.00
–40
–15
10
35
60
85
TEMPERATURE (°C)
VSY = ±3.3V
RL = 16Ω
RL = 32Ω
RL = 600Ω
Figure 35. Output Voltage Low (VOL) vs. Temperature, VSY = ±3.3 V
6.5
5.9
5.7
6.1
6.3
5.5
–40
–15
10
35
60
85
TEMPERATURE (°C)
±5V
±3.3V
Figure 36. Supply Current (+ISY) vs. Temperature
–5.3
–5.6
–5.7
–5.5
–5.4
–5.8
–40
–15
10
35
60
85
TEMPERATURE (°C)
±5V
±3.3V
Figure 37. Supply Current (−ISY) vs. Temperature
