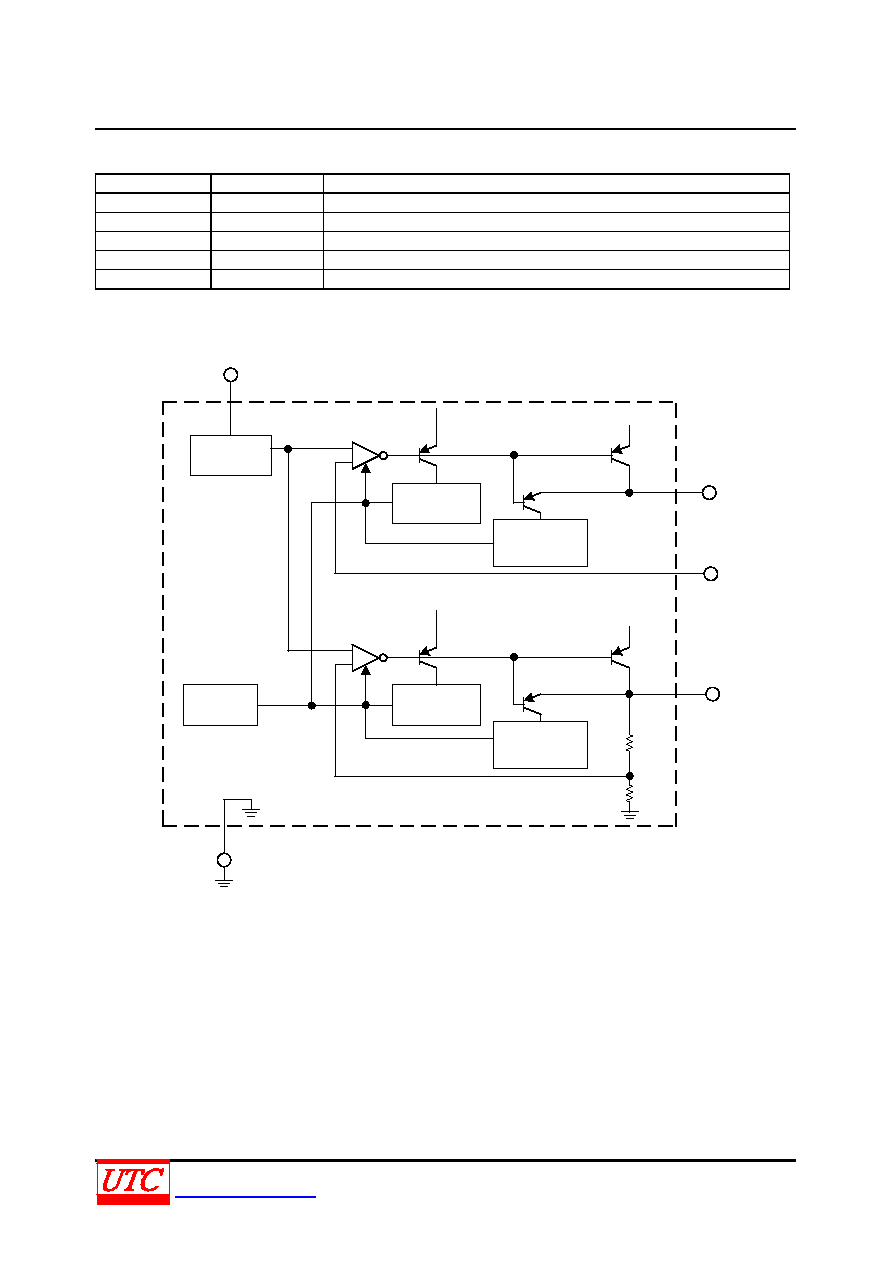

background image
UR10033
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 6
www.unisonic.com.tw
QW-R102-023.C
PIN DISCRIPTION
PIN NO.
PIN NAME
FUNCTION
1
VCC
Power Supply
2
ADJ
ADJ Output Voltage Feedback control
3
GND
Ground
4
VO1
ADJ Output
5
VO2
3.3V Output
BLOCK DIAGRAM
Reference
Voltage
Current
Limit
Sat.
Prevention
Sat.
Prevention
Thermal
Shut Down
VO2
ADJ
PIN 5
PIN 2
PIN 4
VO1
VCC
VCC
Current
Limit
VCC
VCC
VCC
PIN 1
PIN 3
GND
+
-
+
-
