UNISONIC TECHNOLOGIES CO., LTD

L4075

Preliminary

CMOS IC

www.unisonic.com.tw

1 of 5

Copyright © 2018 Unisonic Technologies Co., Ltd

QW-R125-030.b

40V LED DRIVER WITH

INTERNAL SWITCH



DESCRIPTION

The UTC L4075 is a continuous conduction mode inductive

step-down converter, designed for driving single or multiple series

connected LEDs efficiently from a voltage source higher than the

total LEDs chain voltage. The chip operates from an input supply

between 6V and 40V and provides an externally adjustable output

current of up to 400mA. Depending upon supply voltage and

external components, this can provide up to 30W of output power.

The UTC L4075 includes an integrated output switch and a

high-side output current sensing circuit, which uses an external

resistor to set the nominal average output current.

Output current can be adjusted linearly by applying an external

control signal to the ADJ pin. The ADJ pin will accept either a DC

voltage dimming or a wide range of pulsed dimming. This will

provide either a continuous or a gated output current.

Applying a voltage of 0.2V or lower to the ADJ pin can turn the

output off and switch the chip into a low current standby state.



FEATURES

* 6V~40V input voltage range

* Simple low parts count

* Internal 40V power switch

* High efficiency up to 95%

* Typical 5% output current accuracy

* Single pin on/off and brightness control using DC voltage or PWM

* Up to 1MHz switching frequency

* Protection features:

Open-circuit LED Protection

Thermal shutdown Protection



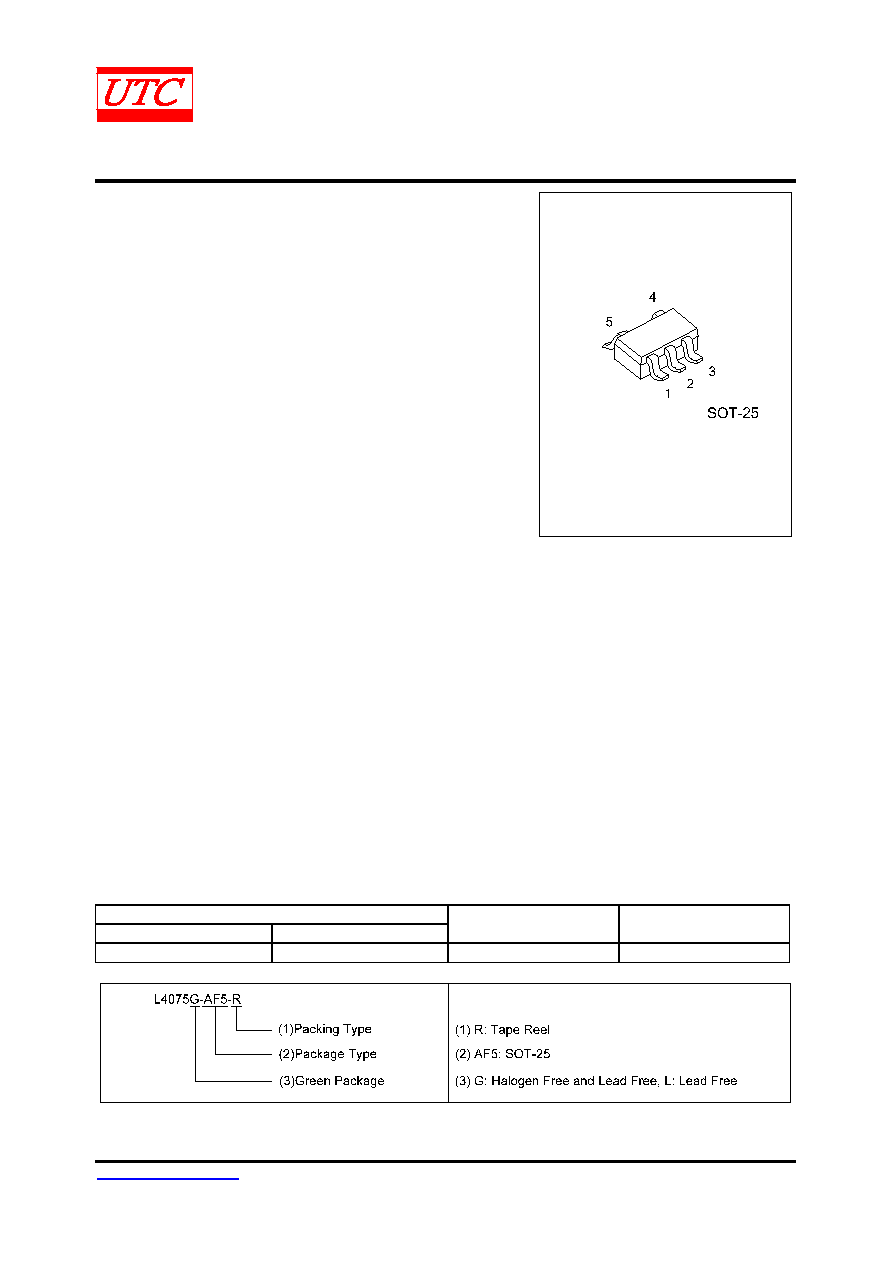

ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

Package

Packing

L4075L-AF5-R

L4075G-AF5-R

SOT-25

Tape Reel
