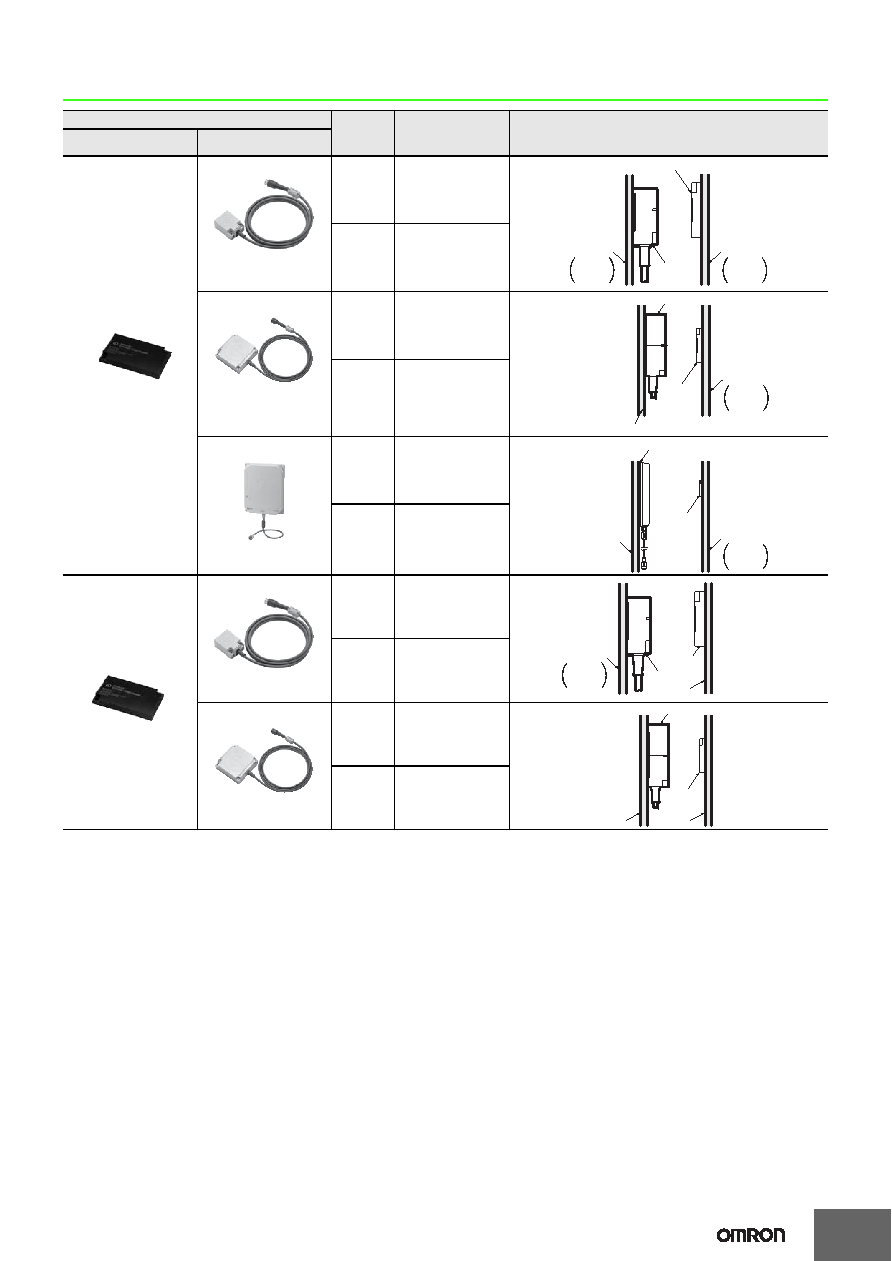

V680 Series

Note: When mounting the V680-HS65, be sure to attach the Mounting Brackets at the base of the Antenna.

The enclosed Mounting Brackets do not need to be used, however, if the mounting brackets on the Antenna are metal plates and their

dimensions are larger than the dimensions of the Antenna (100 × 100 mm).

For details, refer to the User’s Manual (Cat. No. Z248 or Z262).

V680S-D8KF68

V680-HS63

Read

distance

0 to 45.0

(axis offset ±10)

Write

distance

0 to 45.0

(axis offset ±10)

V680-HS65

Read

distance

0 to 75.0

(axis offset ±10)

Write

distance

0 to 75.0

(axis offset ±10)

V680-H01-V2

Read

distance

0 to 150.0

(axis offset ±10)

Write

distance

0 to 150.0

(axis offset ±10)

V680S-D8KF68M

V680-HS63

Read

distance

0 to 35.0

(axis offset ±10)

Write

distance

0 to 35.0

(axis offset ±10)

V680-HS65

Read

distance

0 to 55.0

(axis offset ±10)

Write

distance

0 to 55.0

(axis offset ±10)

Recommended combination

Function

Communication

range

(unit: mm)

RF Tag and Antenna mounting conditions

RF Tag

Reader Writer

V680S-D8KF68

V680-HS63

Non-metallic

Resin,

plastic,

wood, etc.

Non-metallic

Resin,

plastic,

wood, etc.

V680S-

D8KF68

V680-HS65

Non-metallic

Resin,

plastic,

wood, etc.

Metallic

V680S-

D8KF68

V680-H01-V2

Non-metallic

Resin,

plastic,

wood, etc.

Non-metallic

V680-HS63

V680S-

D8KF68M

Non-metallic

Resin,

plastic,

wood, etc.

Metallic

V680-HS65

V680S-

D8KF68M

Metallic
