1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400

fOUT (MHz)

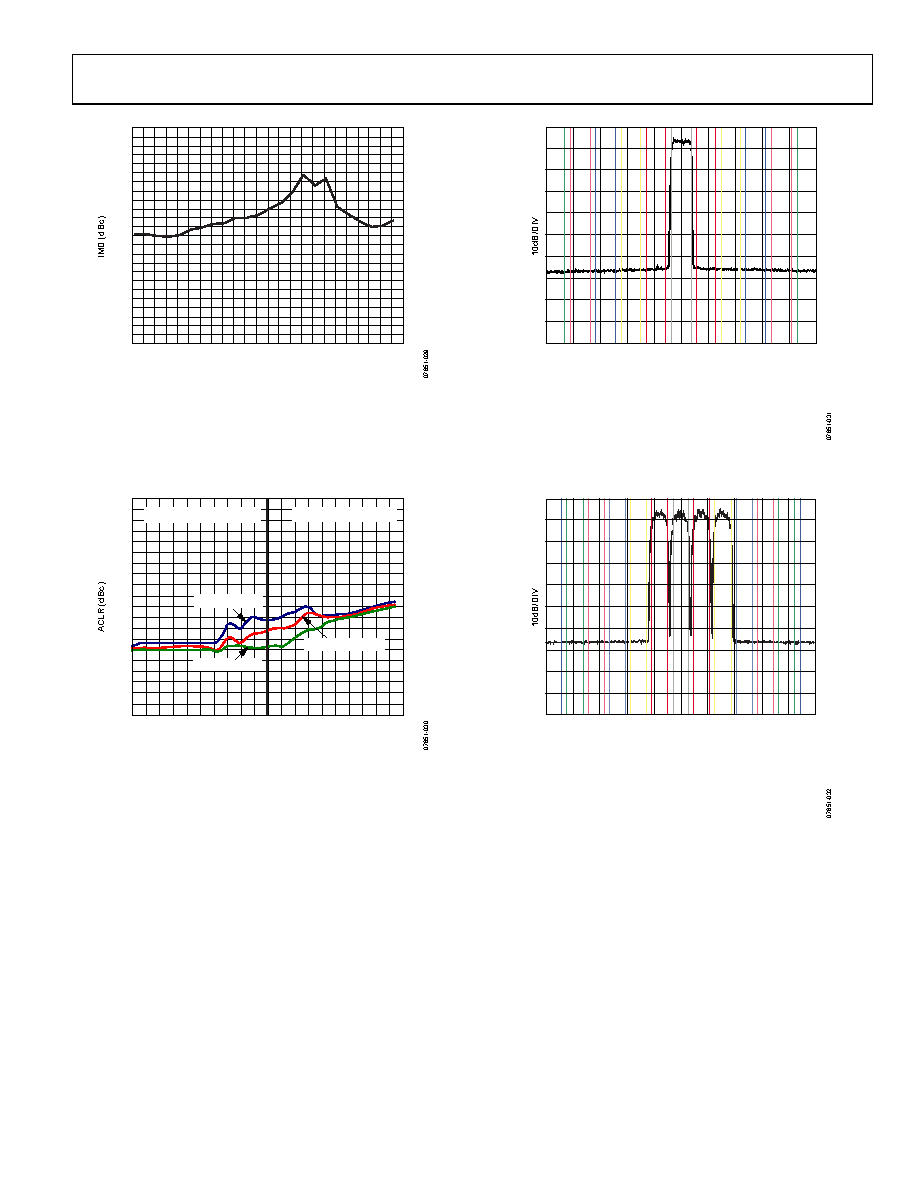

Figure 29. IMD in Mix Mode vs. fOUT at 2.4 GSPS

–90

–85

–80

–75

–70

–65

–60

–55

–50

–45

–40

1229 1475 1720 1966 2212 2458 2703 2949 3195 3441 3686

SECOND NYQUIST ZONE

THIRD NYQUIST ZONE

FIRST ADJ CH

SECOND ADJ CH

FIFTH ADJ CH

fOUT (MHz)

Figure 30. Single-Carrier WCDMA ACLR vs. fOUT at 2457.6 MSPS

VBW 300kHz

SPAN 53.84MHz

SWEEP 174.6ms (601pts)

CENTER 2.807GHz

#RES BW 30kHz

RMS RESULTS

CARRIER POWER

–24.4dBm/

3.84MHz

FREQ

OFFSET

(MHz)

REF

(MHz)

3.84

(dBc)

–64.90

–66.27

–68.44

–70.20

–70.85

(dBm)

–89.30

–90.67

–92.84

–94.60

–95.25

LOWER

(dBc)

–63.82

–65.70

–66.55

–68.95

–70.45

(dBm)

–88.22

–90.10

–90.95

–93.35

–94.85

UPPER

Figure 31. Typical Single-Carrier WCDMA ACLR Performance at 2.8 GHz,

fDAC = 2457.6 MSPS (Third Nyquist Zone)

VBW 300kHz

SPAN 63.84MHz

SWEEP 207ms (601pts)

CENTER 2.09758GHz

#RES BW 30kHz

RMS RESULTS

CARRIER POWER

–25.53dBm/

3.84MHz

FREQ

OFFSET

(MHz)

REF

(MHz)

3.84

(dBc)

0.22

–66.68

–68.01

–68.61

–68.87

–69.21

(dBm)

–25.31

–92.21

–93.53

–94.14

–94.40

–94.74

LOWER

(dBc)

0.24

0.14

–66.82

–67.83

–67.64

–68.50

(dBm)

–25.29

–25.38

–92.35

–93.36

–93.17

–94.03

UPPER

Figure 32. Typical Four-Carrier WCDMA ACLR Performance at 2.1 GHz,

fDAC = 2457.6 MSPS (Second Nyquist Zone)
