AD5624/AD5664

Data Sheet

Rev. A | Page 22 of 23

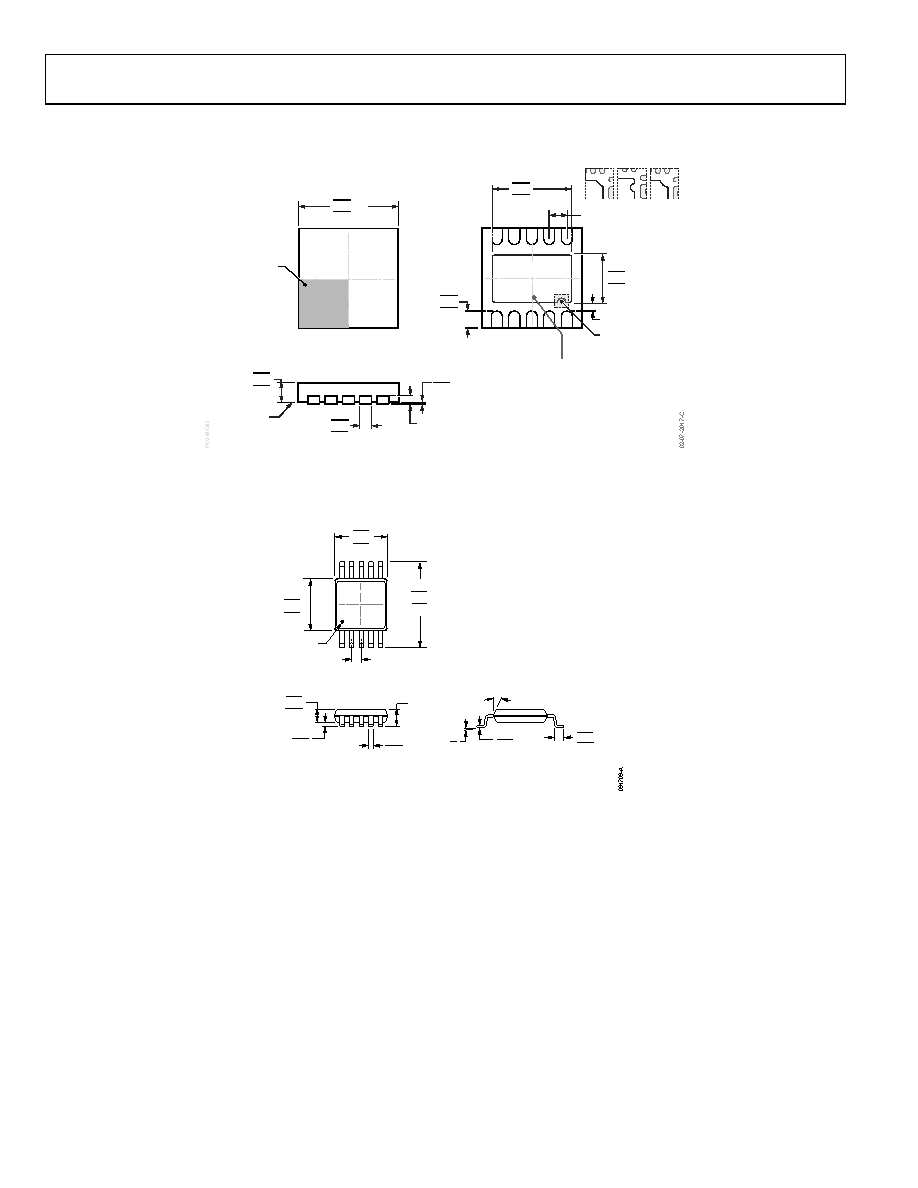

OUTLINE DIMENSIONS

2.48

2.38

2.23

0.50

0.40

0.30

0.25

0.20

PIN 1 INDEX

AREA

SEATING

PLANE

0.80

0.75

0.70

1.74

1.64

1.49

0.20 REF

0.05 MAX

0.02 NOM

0.50 BSC

EXPOSED

PAD

3.10

3.00 SQ

2.90

COPLANARITY

0.08

TOP VIEW

SIDE VIEW

BOTTOM VIE W

0.20 MIN

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

PIN 1

INDIC ATOR AREA OPTIONS

(SEE DETAIL A)

DETAIL A

(JEDEC 95)

Figure 43. 10-Lead Lead Frame Chip Scale Package [LFCSP]

3 mm × 3 mm Body and 0.75 mm Package Height

(CP-10-9)

Dimensions shown in millimeters

COMPLIANT TO JEDEC STANDARDS MO-187-BA

6°

0°

0.70

0.55

0.40

0.50 BSC

0.30

0.15

1.10 MAX

3.10

3.00

2.90

COPLANARITY

0.10

0.23

0.13

3.10

3.00

2.90

5.15

4.90

4.65

PIN 1

IDENTIFIER

15° MAX

0.95

0.85

0.75

0.15

0.05

Figure 44. 10-Lead Mini Small Outline Package [MSOP]

(RM-10)

Dimensions shown in millimeters
