F2867
LINEAR INTEGRATED CIRCUIT
UNISONIC TECHNOLOGIES CO., LTD
2 of 6
www.unisonic.com.tw
QW-R109-038.C

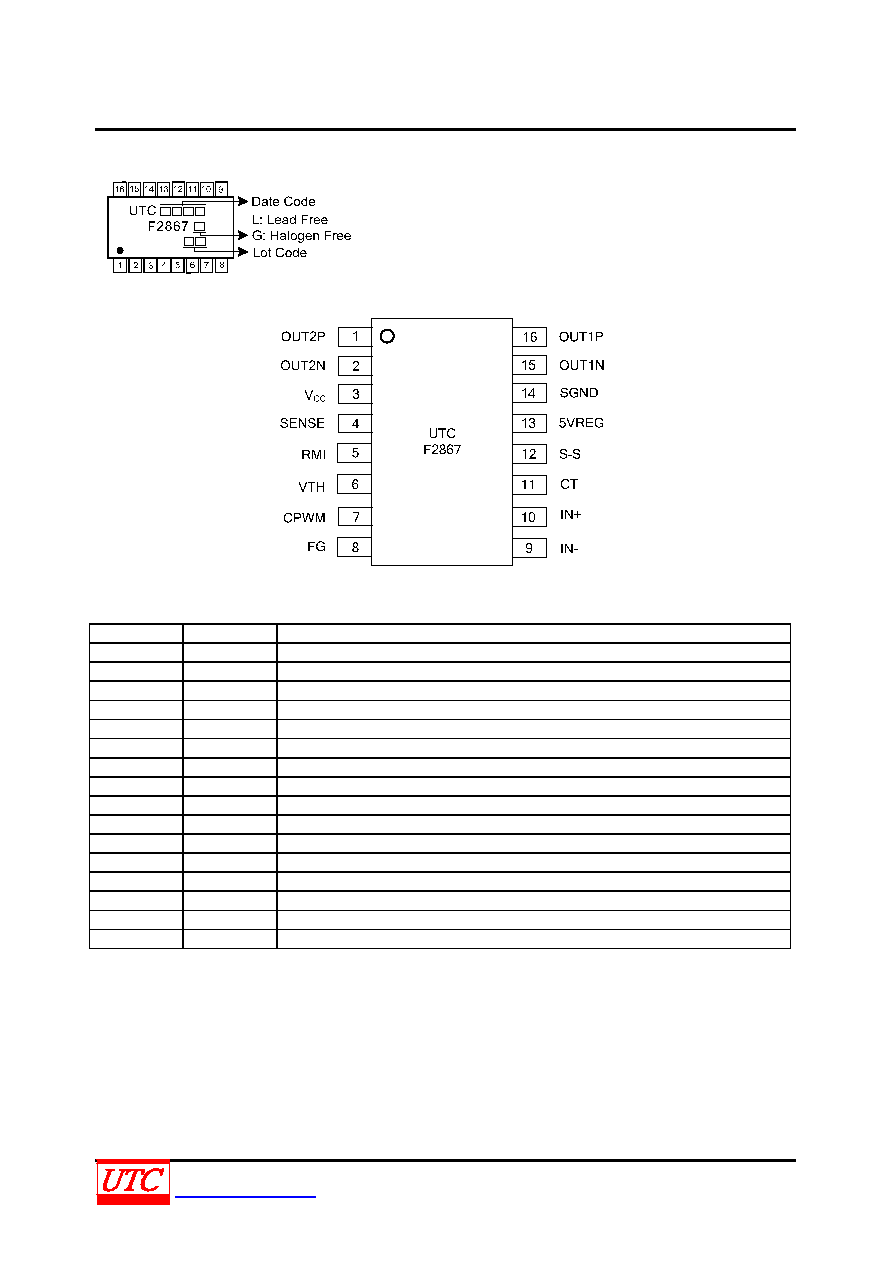

M ARK I N G
PI N CON FI GU RAT I ON
PI N DESCRI PT I ON
PIN NO.
PIN NAME
DESCRIPTION
1
OUT2P
Output2 PMOS drive
2
OUT2N
Output2 NMOS drive
3
VCC
Power supply
4
SENSE
Current limiting detection pin
5
RMI
Minimum speed setting pin
6
VTH
Speed control pin
7
CPWM
Pin to connect the capacitor for generation of the PWM basic frequency
8
FG
Rotation speed detection pin
9
IN
-
Hall signal input
10
IN
+
Hall signal input
11
CT
Pin to connect the lock detection capacitor
12
S-S
Pin to connect the soft-start setting capacitor
13
5VREG
5V reference voltage
14
SGND
Power-GND
15
OUT1N
Output1 NMOS drive
16
OUT1P
Output1 PMOS drive
