LL204
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 5
www.unisonic.com.tw
QW-R121-012.C

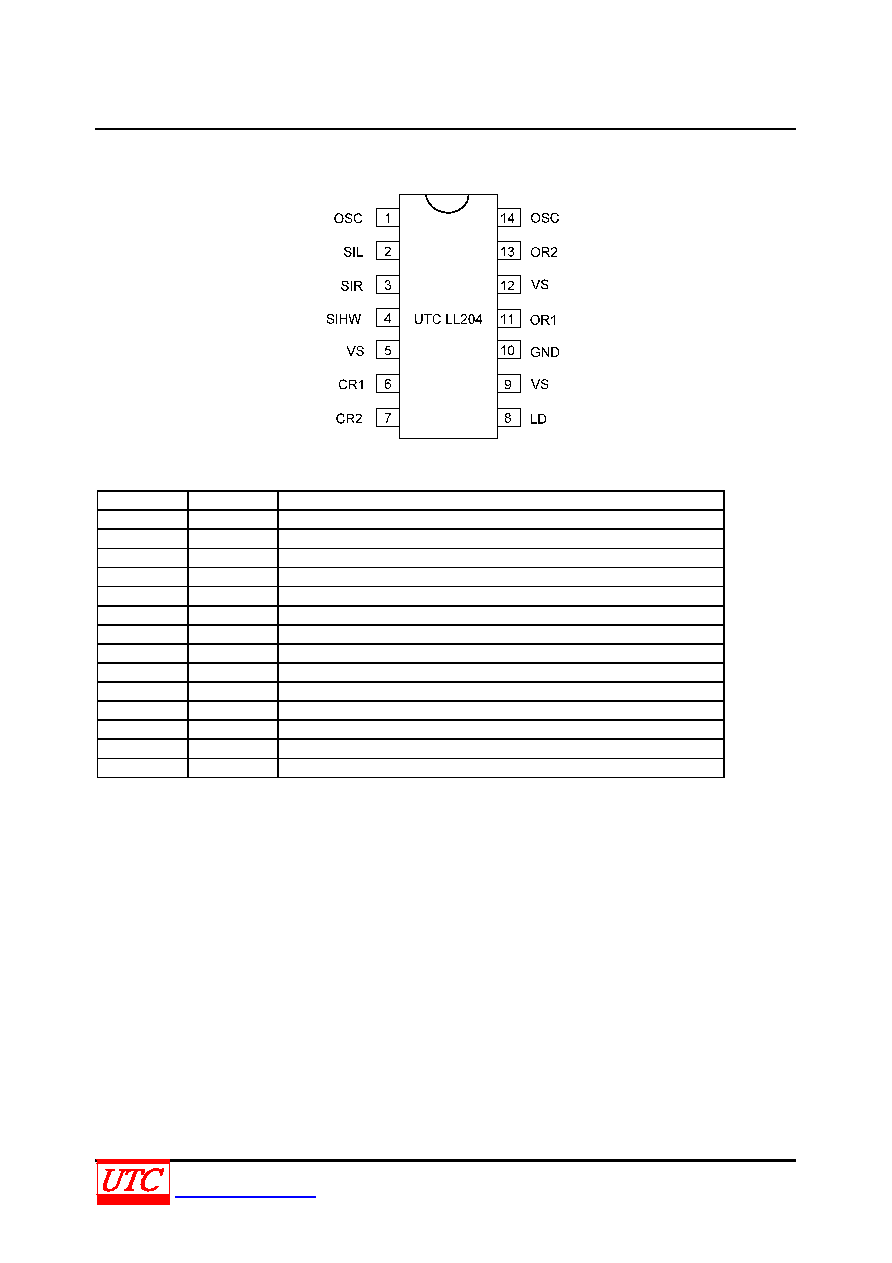

PIN CONFIGURATION
PIN DESCRIPTION
PIN No.
PIN NAME
FUNCTION
1
OSC
Oscillator
2
SIL
Start input left
3
SIR
Start input right
4
SIHW
Start input hazard warning
5
VS
VCC
6
CR1
Control input relay 1
7
CR2
Control input relay 2
8
LD
Lamp failure detection
9
VS
VCC
10
GND
Ground
11
OR1
Output relay 1
12
VS
VCC
13
OR2
Output relay 2
14
OSC
Oscillator
