SUMMIT Technology Co., Ltd.

ST-RX04-ASK

ASK Superhet Receiver Module

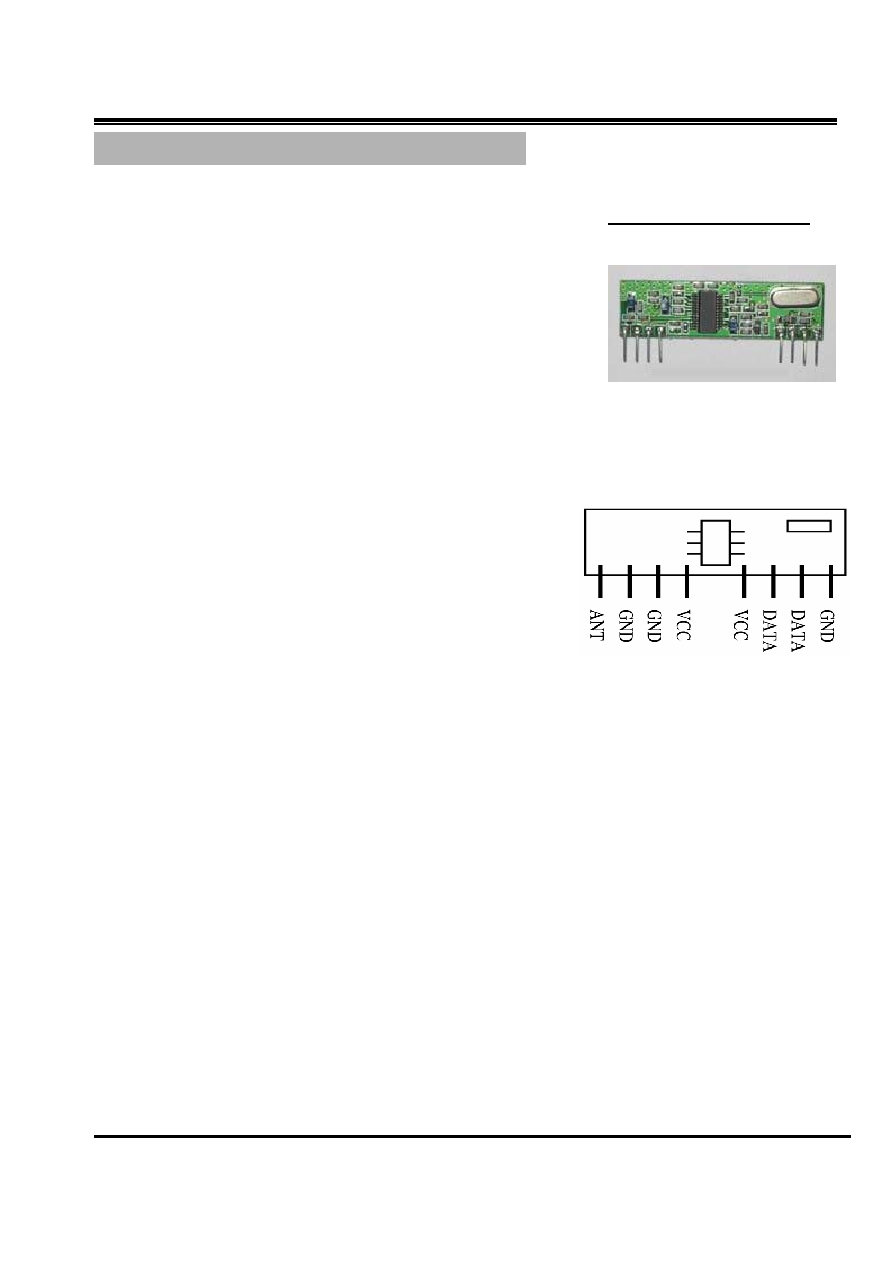

ST-RX04-ASK Receiver

315/434 MHz ASK RECEIVER

Pin Description:

General Description:

The ST- RX04-ASK is an ASK superhet receiver module

with PLL synthesizer and crystal oscillator.

The circuit shape is: PLL.

Receiver Frequency: 315 / 433.92 MHZ

Operation Voltage 5V

IF Frequency: 500k

Typical sensitivity: -105dBm

Supply Current: 2.3mA

Features

Low power consumption.

Easy for application.

On-Chip VCO with integrated PLL using crystal

oscillator reference.

Integrated IF and data filters.

Operation temperature range : ﹣10℃～＋60℃

Operation voltage : 5 Volts.

Available frequency at : 315/434 MHz

SUMMIT Technology Co., LTD.

- 1 -

Applications:

Car security system

Wireless security systems

Sensor reporting

Automation system

Remote Keyless entry
