FENG-JUI TECHNOLOGY CO., LTD

HIGH CURRENT INDUCTOR-RoHS

Your Perfect Inductor

Rev.1801

PIT04020A TYPE

●FEATURE

1. Iron powder and ferrite composite, very Low DCR and high current

2. Same as Coilcraft XAL4020 type

●Applications

1. Server, high current power supplies, DC/DC converters

2. Equipment used for automotive

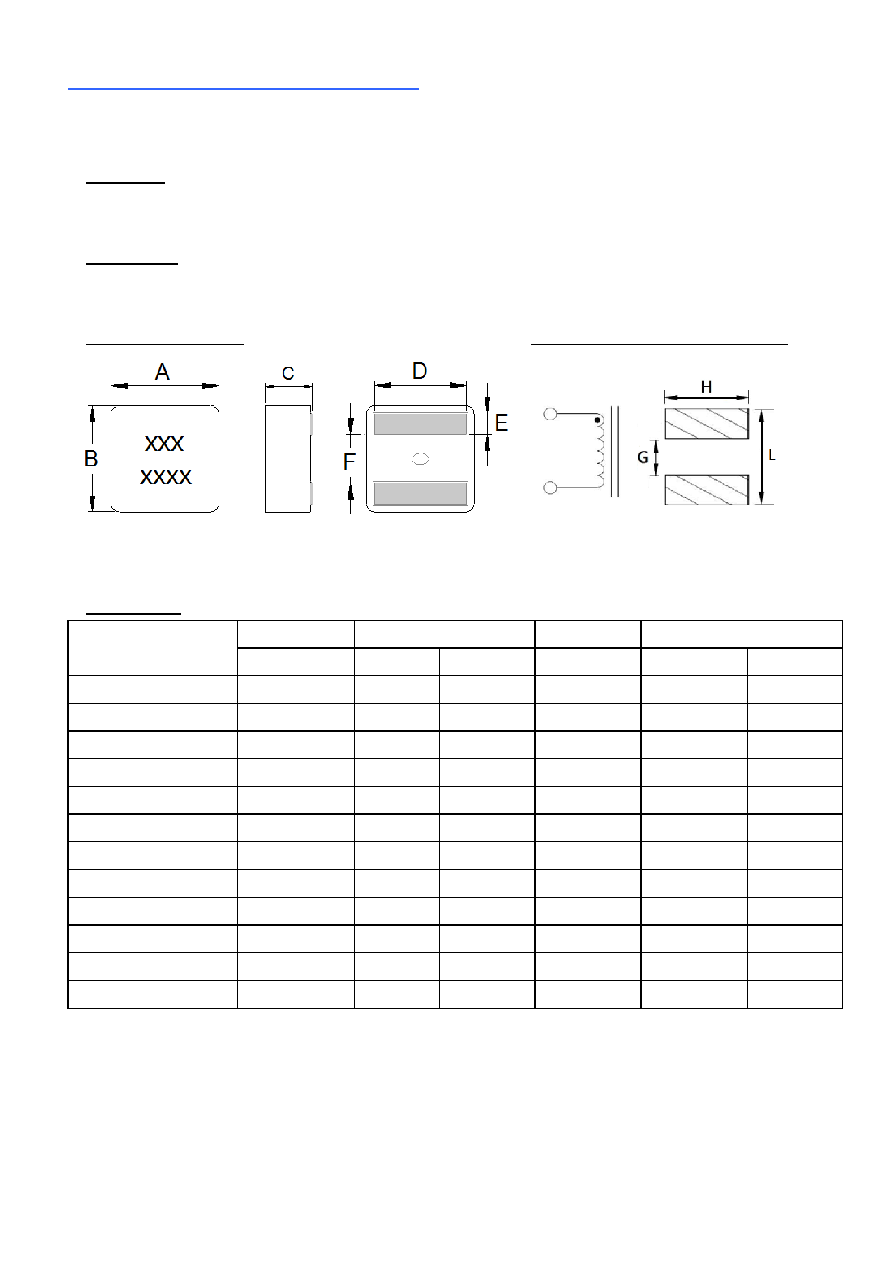

●Shape and Dimension

●Schematics and Land Patterns(mm)

A=4.10±0.20m/m ; B=4.10±0.20m/m ; C=1.90±0.2m/m. ; D=3.40±0.3m/m ;

E=0.90±0.3m/m; F=1.60±0.3m/m; G=1.40m/m ; H=3.80m/m ; L=3.40m/m

●Specification

P/N

L

RDC

Isat(A)

Irms(A) typ.

(μH)

(m

Ω) Typ

(m

Ω) Max

Typ.

△T: 20℃

△T: 40℃

PIT04020A-R10M

0.10±20%

2.2

2.42

38.0

13.5

18.0

PIT04020A-R22M

0.22±20%

4.1

4.6

19.5

13.0

16.8

PIT04020A-R36M

0.36±20%

5.6

6.3

17.0

11.0

14.5

PIT04020A-R40M

0.40±20%

6.9

7.73

15.5

10.0

14.0

PIT04020A-R56M

0.56±20%

8.4

9.30

14.0

8.5

12.0

PIT04020A-R60M

0.60±20%

8.6

9.52

13.7

8.0

11.7

PIT04020A-R72M

0.72±20%

10.4

11.6

12.0

7.6

10.5

PIT04020A-1R0M

1.00±20%

13.3

14.6

9.6

6.8

9.6

PIT04020A-1R2M

1.20±20%

16.2

17.9

9.0

6.6

9.0

PIT04020A-1R5M

1.50±20%

21.0

23.5

8.0

5.8

7.6

PIT04020A-1R8M

1.80±20%

25.0

28.0

7.5

5.2

7.0

PIT04020A-2R2M

2.20±20%

35.2

38.7

6.5

4.6

5.6

Note1. Measurement frequency of Inductance value : at 100KHz, 0.1V

Note2. Measurement ambient temperature of L, DCR and IDC : at 25℃

Note3. Isat: DC current at which the inductance drops 30%(typ) from its value without current

Note4. Inductance tolerance: M: ±20%

Note5. Packaging: Taping ; Quantity: 3000 Piece/reel
