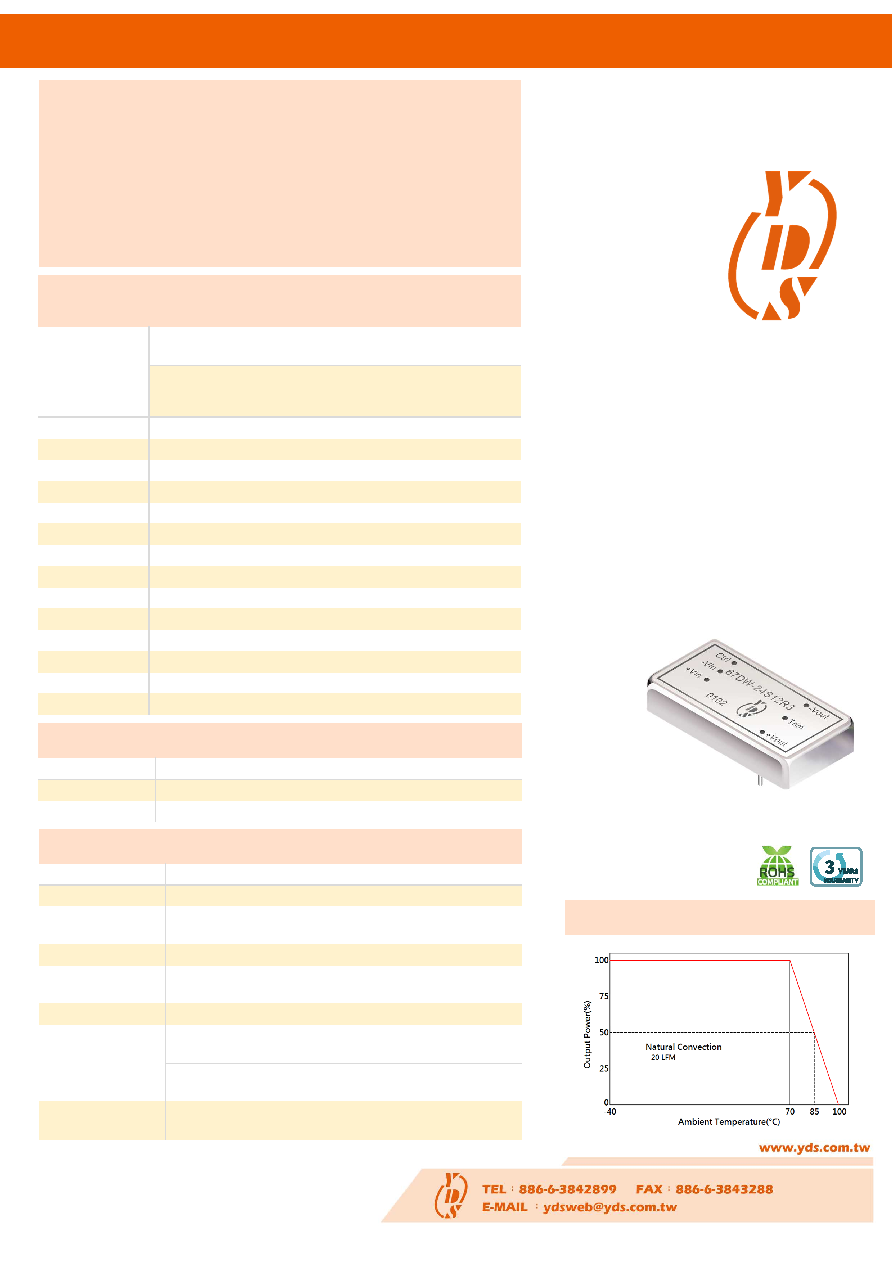

1 / 2 page  DC-DC Converter 67DW-R3 SERIES 15Watt 1.5KV Isolated 4：1 Input Voltage Range Single & Dual Output 2” x 1” YUAN DEAN SCIENTIFIC YUAN DEAN SCIENTIFIC CO.,LTD Rev:o 2018/10/31 67DW-R3 SERIES Temperature Derating Graph Input Specifications Parameters Conditions Min Typ Max Units Voltage Types 4:1 Filter Pi TYPE Specifications typical at TA=25°C, nominal input voltage and rated output current unless otherwise specified Part Number Input Voltage Input Current Output Voltage Output Current Efficiency Capacitor Load Vdc No- Load (mA TYP) Full Load (mA TYP) Vdc Full Load (mA) %TYP uF MAX 67DW-24S03R3 9-36 60 663 3.3 4000 83 3300 67DW-24S05R3 9-36 60 727 5 3000 86 3300 67DW-24S12R3 9-36 40 727 12 1250 86 330 67DW-24S15R3 9-36 20 727 15 1000 86 330 67DW-24D05R3 9-36 70 754 ±5 ±1500 83 ±2000 67DW-24D12R3 9-36 40 726 ±12 ±625 86 ±330 67DW-24D15R3 9-36 40 726 ±15 ±500 86 ±330 67DW-48S03R3 18-75 30 331 3.3 4000 83 5600 67DW-48S05R3 18-75 30 363 5 3000 86 5600 67DW-48S12R3 18-75 30 363 12 1250 86 680 67DW-48S15R3 18-75 30 363 15 1000 86 680 67DW-48D05R3 18-75 30 377 ±5 ±1500 83 ±3300 67DW-48D12R3 18-75 30 363 ±12 ±625 86 ±220 67DW-48D15R3 18-75 30 363 ±15 ±500 86 ±220 Output Specifications Parameters Conditions Min Typ Max Units Voltage Tolerance Full load@Vin(nom.) ±2 % Short Circuit Protection Hiccup, automatic recovery Line Regulation ±0.5 % Load Regulation S ingle Dual(Balance Load) ±0.5 ±1.0 % Cross Regulation Dual (25% to 100% Load) ±5 % Ripple & Noise Output:3-15V TYPES BW=DC To 20MHz 100 mVp-p Output > 15V TYPES BW=DC To 20MHz 1% of Vout mVp-p Transient response setting time 25% load step change 300 us FEATURES： 15 Watt Package 4:1Wide Input Voltage 100% Burned In High Efficiency To 86% Customized Solutions Available Remote Control:On/Off UL94V-0 Package Material Operating Temperature:-40℃ TO +85℃ 3 Years Warranty |
