FENG-JUI TECHNOLOGY CO., LTD

SMD POWER INDUCTOR-RoHS

Your Perfect Inductor

Rev.1601

WL 4532V TYPE

●FEATURE

1. Wire wound SMD inductors

2. Highly accurate dimensions and reliable

●Applications

1. Digital camera or small size LCD panel used

2. Hard Disk drives, and other electronic equipment

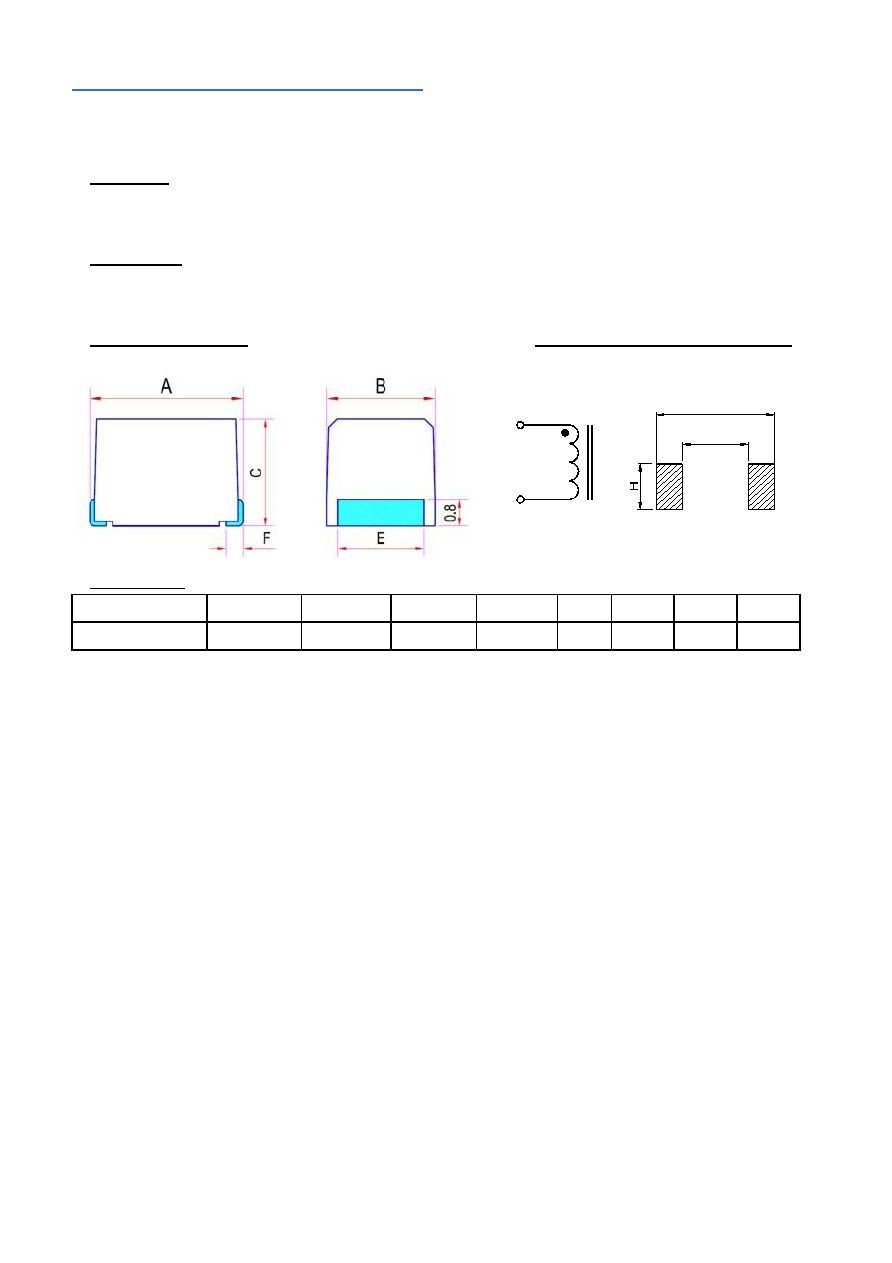

●Shape and Dimension

●Schematics and Land Patterns(mm)

●Specification

Dimension in m/m

TYPE

A

B

C

E

F

G

I

H

WL4532V(1812)

4.50±0.30

3.20±0.20

3.20±0.20 2.60±0.10

0.60

6.00

3.00

2.80

Note1. Measurement frequency of Inductance value : at electrical characteristics

Note2. Measurement ambient temperature of L, DCR and IDC : at 25℃

Note3. IDC : This indicates the value of current when the inductances is 10% lower than its initial

value at D.C. superimposition or D.C. current when at ∆t=20℃,which is lower.(Ta=20℃)

Note4. Inductance tolerance: J: ±5% ; K: ±10% ; M: ±20%

Note5. Ordering Code: TYPE NAME: WL4532V

Inductance Value: 100(10uH)

Tolerance Code: □ (see Note4)

Note6. This specification might be changed without notice due to under developing and improving.

Thank you for your understanding.

G

I
