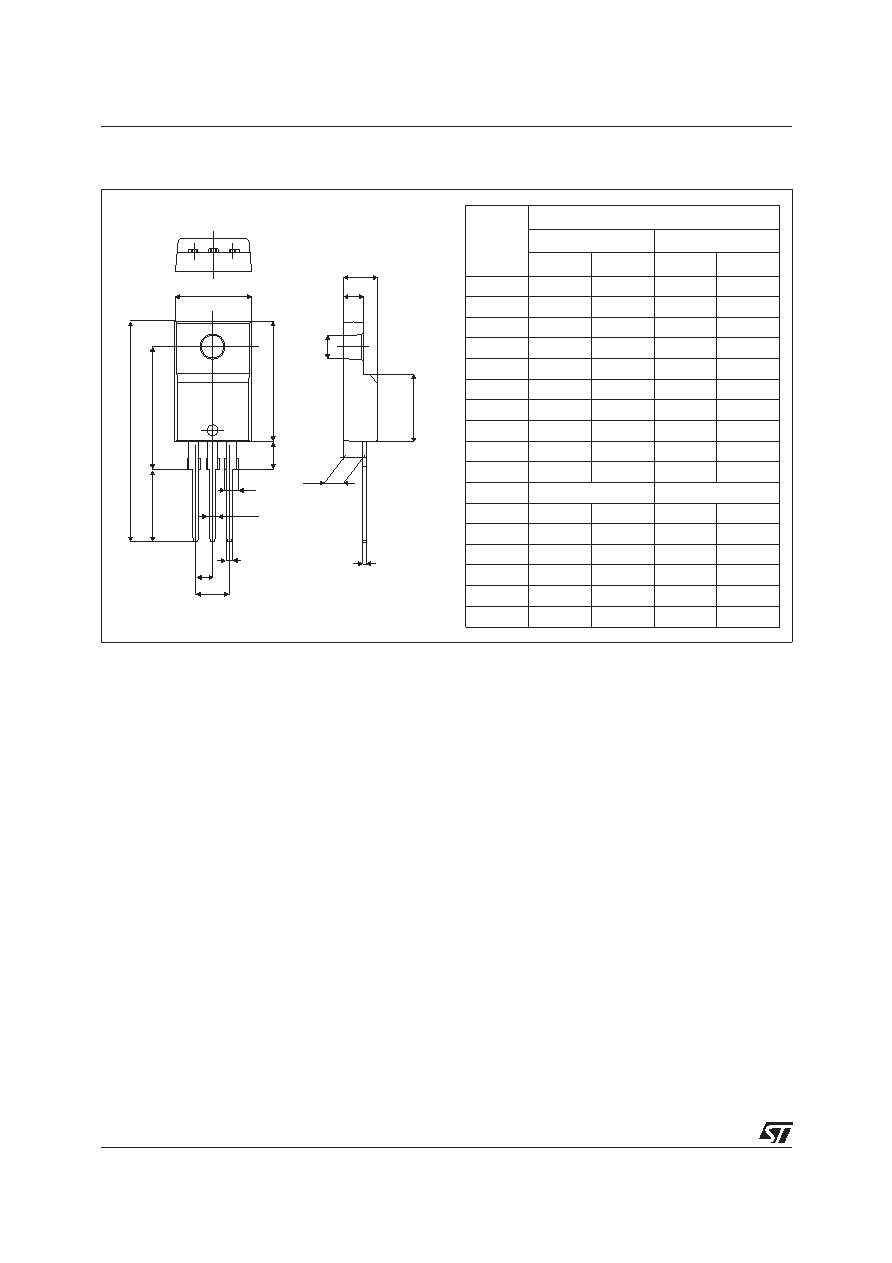

PACKAGE MECHANICAL DATA

TO-220FPAB

REF.

DIMENSIONS

Millimeters

Inches

Min.

Max.

Min.

Max.

A

4.4

4.6

0.173

0.181

B

2.5

2.7

0.098

0.106

D

2.5

2.75

0.098

0.108

E

0.45

0.70

0.018

0.027

F

0.75

1

0.030

0.039

F1

1.15

1.70

0.045

0.067

F2

1.15

1.70

0.045

0.067

G

4.95

5.20

0.195

0.205

G1

2.4

2.7

0.094

0.106

H

10

10.4

0.393

0.409

L2

16 Typ.

0.63 Typ.

L3

28.6

30.6

1.126

1.205

L4

9.8

10.6

0.386

0.417

L5

2.9

3.6

0.114

0.142

L6

15.9

16.4

0.626

0.646

L7

9.00

9.30

0.354

0.366

Dia.

3.00

3.20

0.118

0.126

H

L3

L2

L4

L6

G

G1

F

F1

L5

D

E

L7

A

B

Dia

F2

s

Cooling method : by conduction (C)

s

Recommended torque value (ISOWATT220AB, TO-220FPAB): 0.55 Nm

s

Maximum torque value (ISOWATT220AB, TO-220FPAB): 0.7 Nm

s

Recommended torque value (TO-220AB): 0.8 Nm

s

Maximum torque value (TO-220AB): 1.0 Nm

s

Epoxy meets UL94, V0
