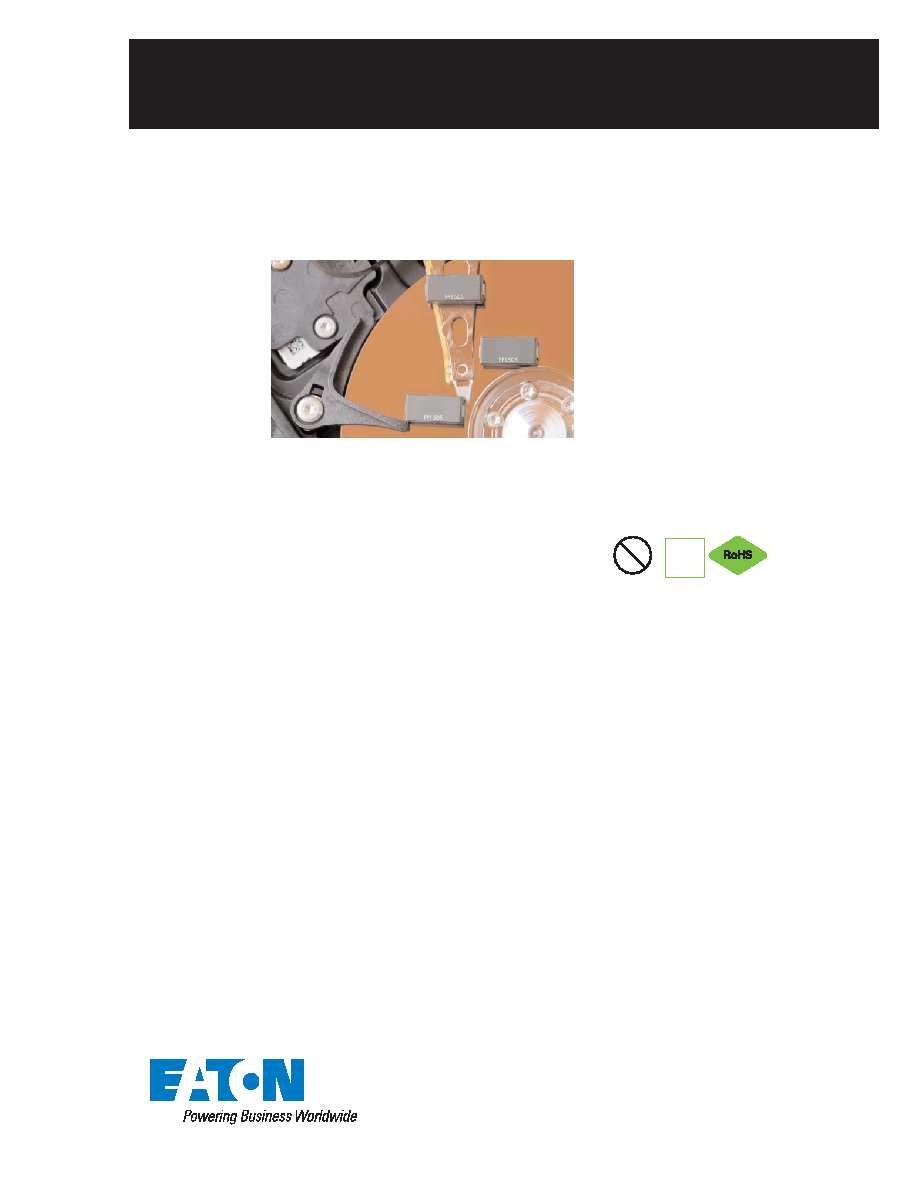

background image
Technical Data 4365
Effective July 2017
Supersedes April 2009
Product features
•
7.0 x 15.0 x 5.0mm surface mount package
•
Ferrite core material
•
High current handling capability, low core loss
•
Designed for high speed, high current switch
mode applications
•
Tight DCR tolerance for sensing circuits
•
Inductance range from 100 nH to 400 nH
•
Current range from 24 A to 105 A
•
Frequency range up to 1 MHz
Applications
•
Storage temperature range (component):
-40 °C to +125 °C
•
Operating temperature range: -40 °C to +125 °C
(ambient plus self-temperature rise)
•
Solder reflow temperature:
J-STD-020 (latest revision) compliant
FP1505
High frequency, high current power inductors
Pb HALOGEN
HF
FREE
•
Multi-phase regulators
•
Voltage Regulator Module (VRM)
•
Desktop and server VRMs and EVRDs
•
Data networking and storage systems
•
Notebook regulators
•
Graphics cards and battery power systems
•
Point of load modules
•
DCR current sensing
Environmental data
SMD Device
