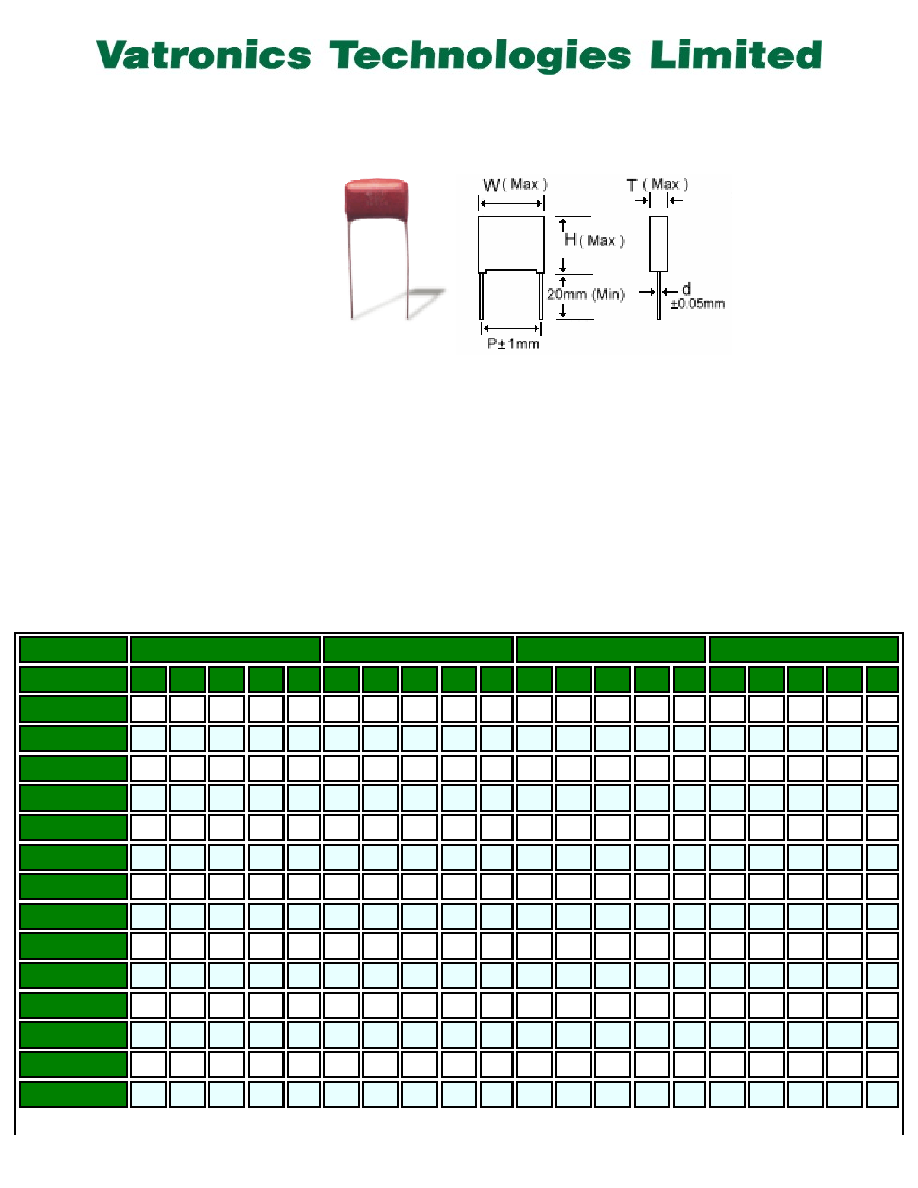

VFMP Series Film Metallized Polyester Capacitors

1. HIGH STABILITY. Capacitance / SIZE /

Rated Volt.

2. SELF-HEALING CHARACTERISTICS .

3. DIPPED EPOXY COATING

PROTECTS FROM HUMIDITY.

4. EXCELLENT FOR USED IN

COUPLING, BY-PASS, R.F.FILTERING,

AND SOLID-STATE APPLICATION

WHERE SIZE IS CRITICAL.

SPECIFICATION : ¡¡

1. OPERATING TEMPERATURE :

- 40C ~ + 85C

2. CAPACITANCE RANGE :

0.001~10uF

3. CAPACITANCE TOLERANCE :

5% , 10% , 20%

4. RATED VOLTAGE :

DC100V, 250V, 400V, 630V

5. DISSIPATION FACTOR :

1.0 % MAX AT 1KHz, 25C

6. INSULATION RESISTANCE

> 9,000M ( C 0.33uF )

> 3,000M /uF( C > 0.33uF )

¡¡

Capacitance

2A ( 100VDC )

2E ( 250VDC )

2G ( 400VDC )

2J ( 630VDC )

UF

W

H

T

P

d

W

H

T

P

d

W

H

T

P

d

W

H

T

P

d

0.001

13.0 10.0 5.5 10.0 0.6 13.0 10.0 5.5 10.0 0.6 13.0 10.0 6.0 10.0 0.6 13.0 10.5 6.0 10.0 0.6

0.0015

13.0 10.0 5.5 10.0 0.6 13.0 10.0 5.5 10.0 0.6 13.0 10.0 6.0 10.0 0.6 13.0 10.5 6.0 10.0 0.6

0.0022

13.0 10.0 5.5 10.0 0.6 13.0 10.0 5.5 10.0 0.6 13.0 10.0 6.0 10.0 0.6 13.0 10.5 6.0 10.0 0.6

0.0033

13.0 10.5 5.5 10.0 0.6 13.0 10.0 5.5 10.0 0.6 13.0 10.5 6.0 10.0 0.6 13.0 10.5 6.0 10.0 0.6

0.0047

13.0 10.5 5.5 10.0 0.6 13.0 10.0 5.5 10.0 0.6 13.0 10.5 6.0 10.0 0.6 13.0 10.5 6.0 10.0 0.6

0.0068

13.0 10.5 5.5 10.0 0.6 13.0 10.0 5.5 10.0 0.6 13.0 10.5 6.0 10.0 0.6 13.0 10.5 6.0 10.0 0.6

0.01

13.0 10.0 5.5 10.0 0.6 13.0 10.0 5.5 10.0 0.6 13.0 10.0 6.0 10.0 0.6 13.0 10.5 6.0 10.0 0.6

0.015

13.0 10.0 6.0 10.0 0.6 13.0 10.0 6.0 10.0 0.6 13.0 10.0 6.5 10.0 0.6 13.0 11.0 7.0 10.0 0.6

0.022

13.0 10.0 6.0 10.0 0.6 13.0 10.0 6.0 10.0 0.6 13.0 10.0 6.5 10.0 0.6 13.0 11.0 7.0 10.0 0.6

0.033

13.0 10.0 6.0 10.0 0.6 13.0 10.0 6.0 10.0 0.6 13.0 11.0 6.5 10.0 0.6 13.0 12.0 7.0 10.0 0.6

0.047

13.0 10.0 6.0 10.0 0.6 13.0 10.0 6.0 10.0 0.6 13.0 11.5 7.0 10.0 0.6 18.0 13.0 7.5 15.0 0.8

0.068

13.0 11.0 6.5 10.0 0.6 13.0 11.0 6.5 10.0 0.6 13.0 12.5 7.0 10.0 0.6 18.0 14.0 8.0 15.0 0.8

0.1

13.0 12.5 7.0 10.0 0.6 13.0 12.5 7.0 10.0 0.6 18.0 11.0 6.0 15.0 0.8 18.0 15.0 8.5 15.0 0.8

0.15

13.0 12.5 8.0 10.0 0.6 13.0 12.5 8.0 10.0 0.6 18.0 14.0 8.0 15.0 0.8 24.0 16.5 9.0 20.5 0.8
