Remarks

•I

S is positive when IP flows in the direction of the arrow.

•Temperature of the primary conductor should not exceed

90°C.

•Dynamic performances (di/dt and response time) are best

with a single bar completely filling the primary hole.

•In order to achieve the best magnetic coupling, the primary

windings have to be wound over the top edge of the device.

•This is a standard model. For different versions (supply

voltages, turns ratios, unidirectional measurements...),

please contact us.

Mechanical characteristics

•General tolerance

± 0.2 mm

•Primary through-hole

12.7 x 7 mm

•Fastening & connection of secondary

3 pins

0.63 x 0.56mm

Recommended PCB hole

0.9 mm

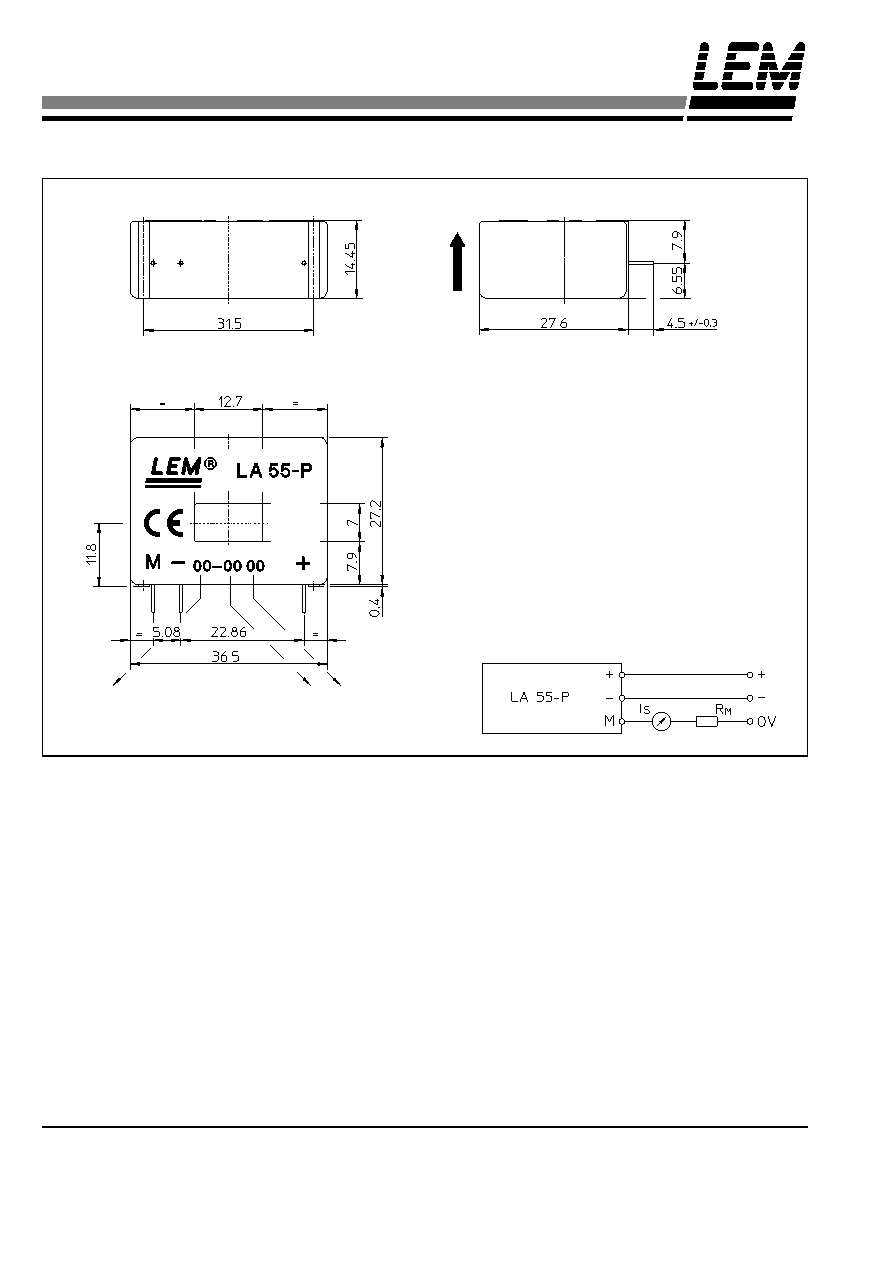

Dimensions LA 55-P (in mm. 1 mm = 0.0394 inch)

Bottom view

Front view

Left view

Secondary terminals

Terminal +

: supply voltage + 12 .. 15 V

Terminal -

: supply voltage - 12 .. 15 V

Terminal M : measure

Connection

LEM reserves the right to carry out modifications on its transducers, in order to improve them, without previous notice.

Standard 00

Year Week

or N° SP..

swiss

made
