ADRF5545A

Data Sheet

Rev. A | Page 20 of 20

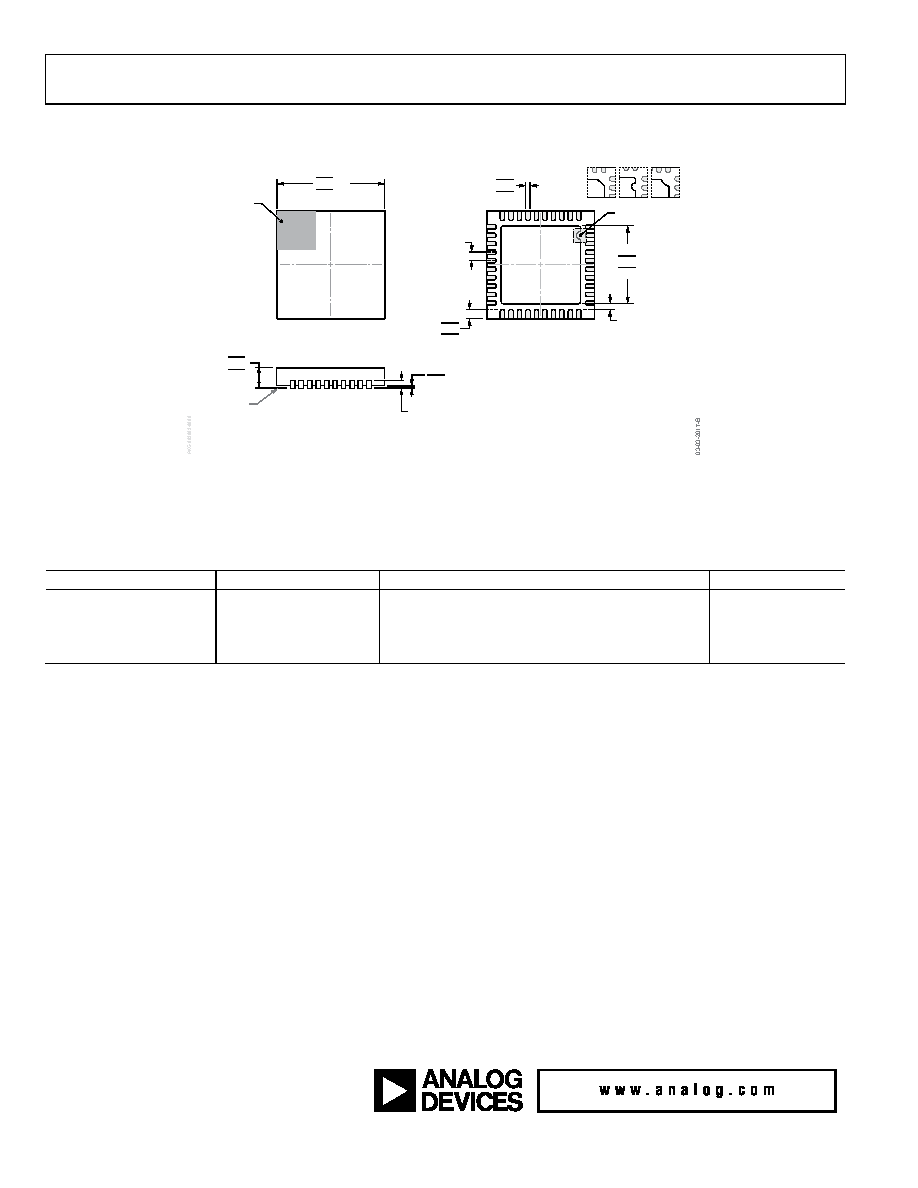

OUTLINE DIMENSIONS

0.50

BSC

BOTTOM VIEW

TOP VIEW

PIN 1

INDICATOR

0.05 MAX

0.02 NOM

0.20 REF

COPLANARITY

0.08

0.30

0.25

0.18

6.10

6.00 SQ

5.90

1.00

0.95

0.85

0.45

0.40

0.35

0.25 MIN

4.70

4.60 SQ

4.50

COMPLIANT TO JEDEC STANDARDS MO-220-VJJD-5

END VIEW

EXPOSED

PAD

SEATING

PLANE

PIN 1

INDIC ATOR AREA OPTIONS

(SEE DETAIL A)

DETAIL A

(JEDEC 95)

Figure 48. 40-Lead Lead Frame Chip Scale Package [LFCSP]

6 mm × 6 mm Body and 0.95 mm Package Height

(CP-40-15)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option

ADRF5545ABCPZN

−40°C to +105°C

40-Lead Lead Frame Chip Scale Package [LFCSP]

CP-40-15

ADRF5545ABCPZN-R7

−40°C to +105°C

40-Lead Lead Frame Chip Scale Package [LFCSP]

CP-40-15

ADRF5545ABCPZN-RL

−40°C to +105°C

40-Lead Lead Frame Chip Scale Package [LFCSP]

CP-40-15

ADRF5545A-EVALZ

Evaluation Board

Z = RoHS Compliant Part.
