1 / 1 page

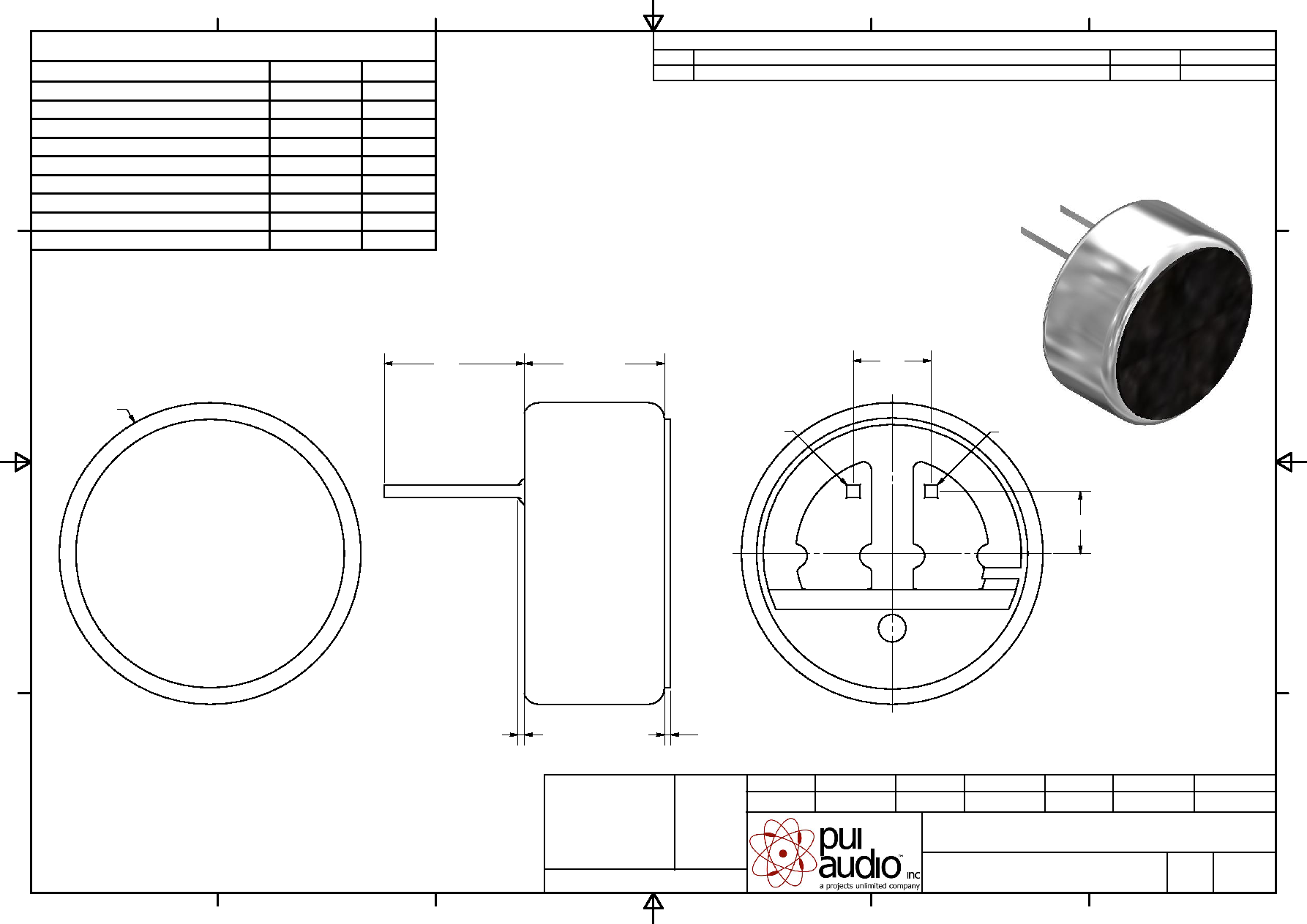

Microphone

AOM-4544P-R

J.D.

C.W.

B.R.

6/27/2014

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

6/27/2014

Date

6/27/2014

Date

6/27/2014

UNLESS OTHERWISE SPECIFIED:

All PURCHASES ARE SUBJECT TO AND

INCORPORATE THE PUI AUDIO TERMS

AND CONDITIONS SALE FOUND AT

http://www.puiaudio.com

/pdf/terms_conditions.pdf

(paper copy available upon request).

DIMENSIONS ARE IN MILLIMETERS,

TOLERANCES ARE 0.5 AND

ANGLES ARE 3 .

AOM-4544P-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

2014/06/27

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

DIRECTIVITY

OMNI

-

SENSITIVTY

-44

2

dB

STANDARD OPERATING VOLTAGE

3

Vdc

MAX OPERATING VOLTAGE

10

Vdc

CURRENT CONSUMPTION (MAX)

0.5

mA

IMPEDANCE

2.2

KOhm

SIGNAL TO NOISE RATIO (MIN.)

60

dB

TERMINAL

-

INTERNAL CAPACITOR

N/A

pF

9.7

0.1

4.5

0.2

4.5

2.5

2

TERM 2 (-)

TERM 1 (+)

2003, Projects Unlimited Inc.

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

0.2

0.1

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.
