Revision 1.0
Page 19 of 44
nRF24AP2-USB Product Specification

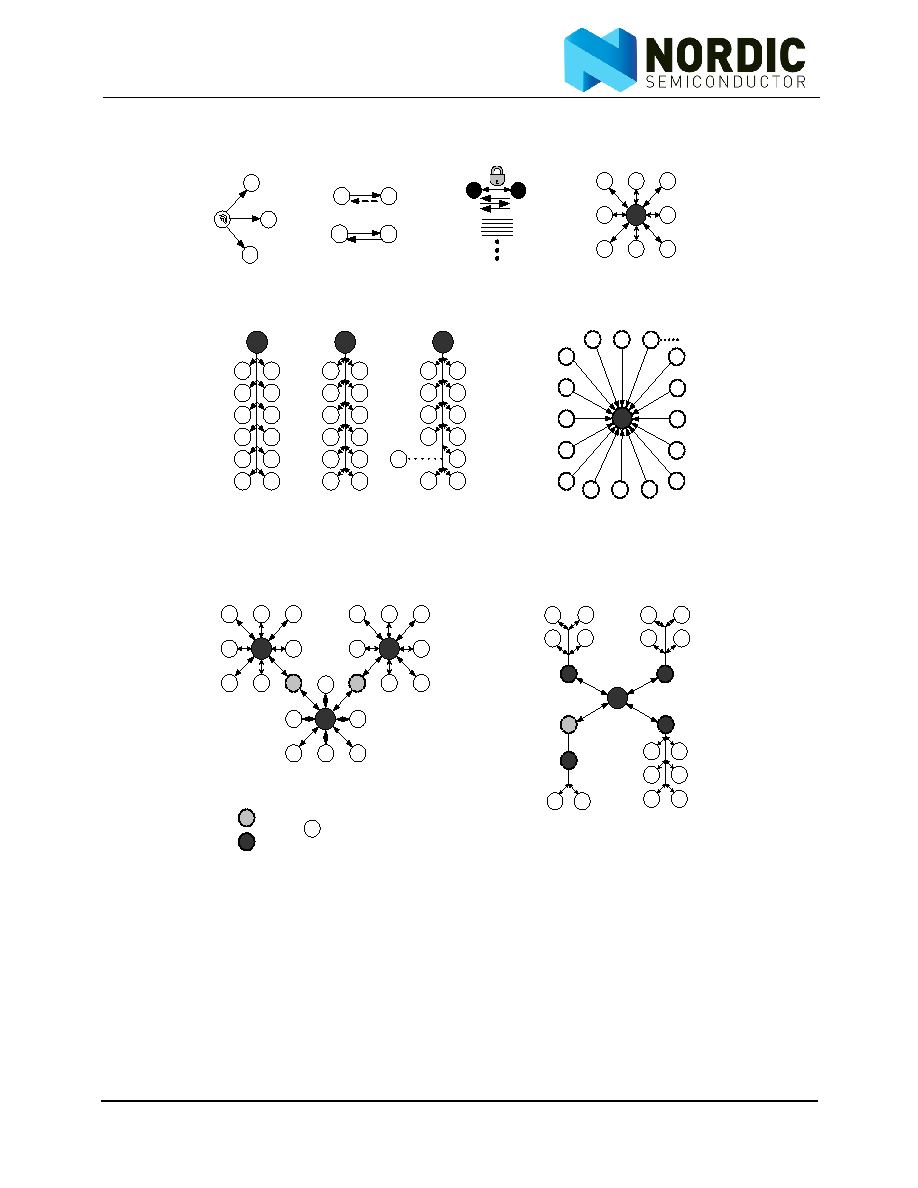

Figure 10. Network topology examples supported by ANT
4.2.7
ANT message protocol
The host microcontroller handles all the configuration and control of the various ANT node and channel
parameters in nRF24AP2 over a simple serial interface, by using the command library. See the document
ANT Message Protocol and Usage for further details on the command library.
