ADAR2001
Data Sheet
Rev. 0 | Page 12 of 39
5
–5
10
40
RF OUTPUT FREQUENCY (GHz)
12 14 16 18 20 22 24 26 28 30 32 34 36 38
–4
–3
–2
–1
0
1
2
3
4
CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 4

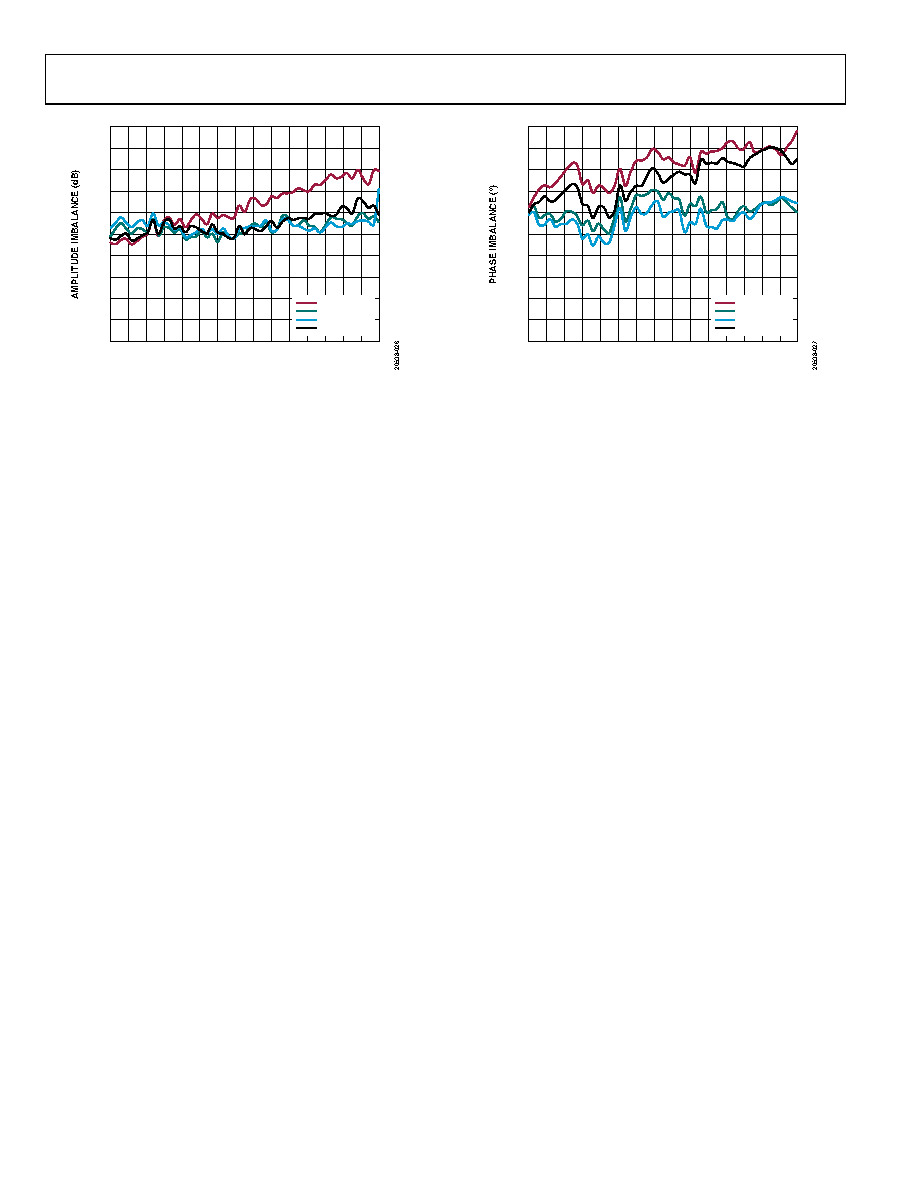

Figure 25. Amplitude Imbalance vs. RF Output Frequency
25
–25
10
40
RF OUTPUT FREQUENCY (GHz)
12 14 16 18 20 22 24 26 28 30 32 34 36 38
CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 4
–20
–15
–10
–5
0
5
10
15
20
Figure 26. Phase Imbalance vs. RF Output Frequency
