Part #:

Revision:

TOP

BROWN wire to Ground and RED wire to Positive

4411 South High School Road, Indianapolis, Indiana 46241 U.S.A · Phone: (317) 612-1000 Fax: (317) 612-1010

www.mspindy.com

Specifications:

Mallory Sonalert Products,Inc.

JR16-R-D

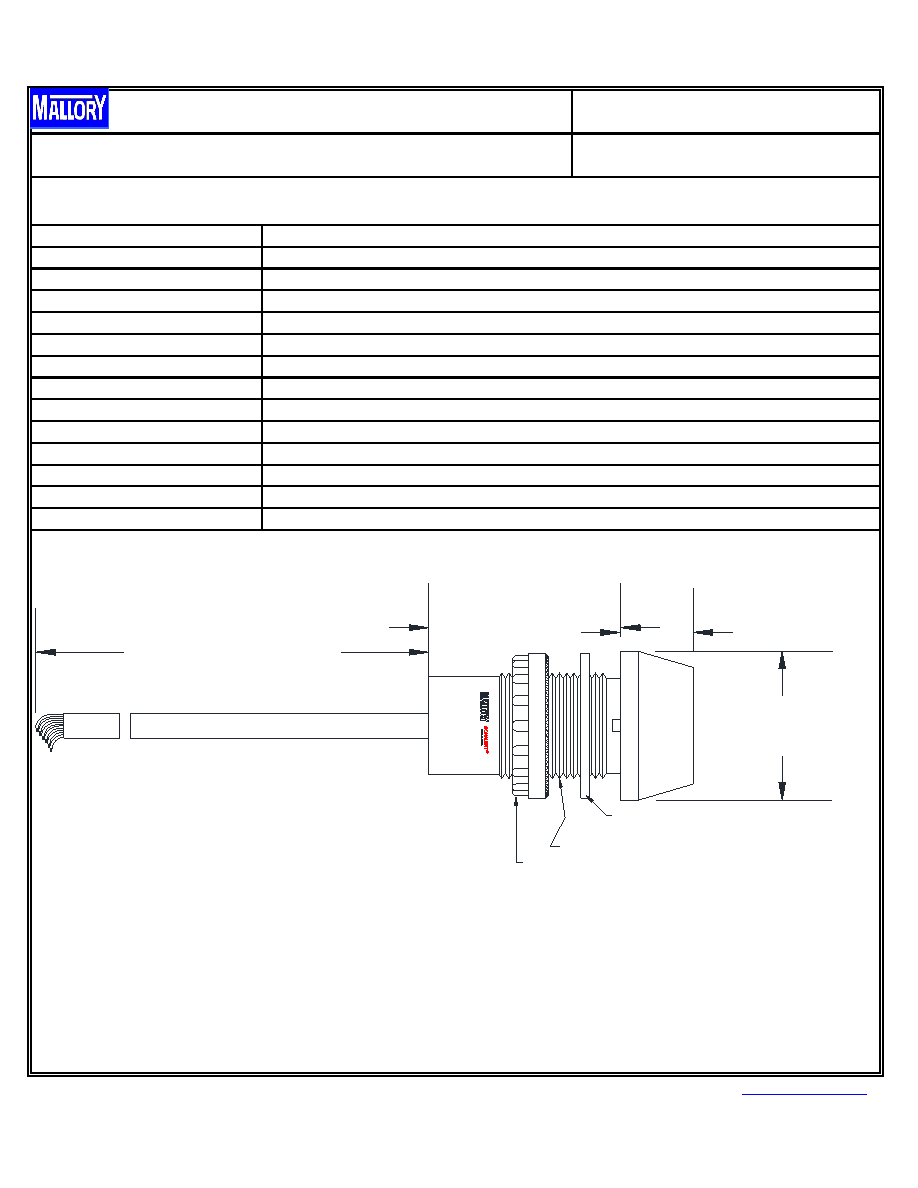

Sales Outline Drawing

A

Voltage Rating

9 to 16 VDC

LED Color

RED

-30° to +60° C

LED Current Draw

60mA MAX

Housing Material

6/6 Nylon, Color: Black

Total Max Current Draw

60mA MAX

Dimensions:

Inches (mm)

cUL Recognized

ROHS Compliant

Mounting

Recommended hole size is 22.5 mm.

Knurled Nut

The max recommended torque is 10 in-lbs.

Cable

Gray, UL Style 21894, 300V, 105°C, 24AWG, Pb-Free Tinned Leads

Top Cap Material

6/6 Nylon, Color: Opaque White

Storage Temperature

-40° to +70° C

Operating Temperature

Connections:

Weight (Typical)

32 grams

NEMA 12

Approved with use of included gasket.

Options

Please contact factory.

0.524 [13.31]

M22 x 1.5 Thread

<0.86 Maj. Dia.

Gasket

Knurl nut

1.381 [35.07]

12±1" [305±25mm]

1.210 [30.73]
