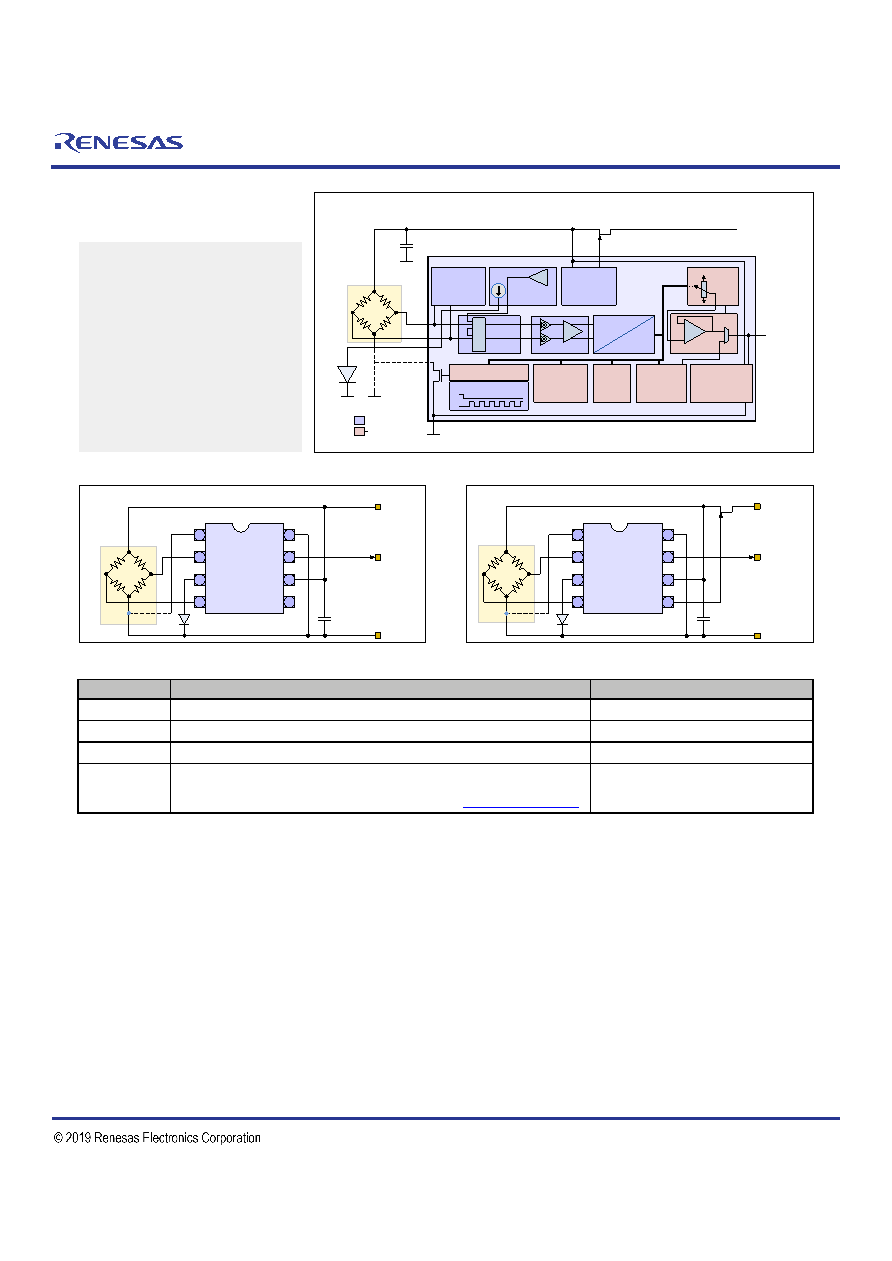

RBicdLite™ Analog Output Sensor Signal

Conditioner with Diagnostic Features

ZSC31015

Datasheet

November 14, 2016

Highly Versatile Applications

in Many Markets Including

 Industrial

 Building Automation

 Office Automation

 White Goods

 Automotive *

 Portable Devices

 Your Innovative Designs

* Not AEC-Q100-qualified.

Analog Block

Digital Block

RBicdLite

ZSC31015

0.1

F

VSS

VBP

12-Bit

DAC

OUTBUF1

ZACwire

Interface

Digital

Core

EEPROM

with Charge

Pump

PREAMP

INMUX

Temperature

Reference

VDD

Regulator

Power Save

POR/Oscillator

VBN

Vgate

SIG

Bsink

(Optional)

VDD (2.7 to 5.5 V)

JFET

(Optional if supply is 2.7 to 5.5 V)

VSUPPLY

5.5 V to 30 V

Sensor

Diagnostics

Ext Temp

Power Lost

Diagnostic

14-Bit ADC

PTAT

Optional

Ext. Diode

for Temp

0 V to 1 V

Ratiometric

Rail-to-Rail

OWI/ZACwire

ZSC31015

Bsink

VBP

ExtTemp

VBN

VSS

Sig

VDD

Vgate

0.1

F

Vsupply

Ground

+2.7 to +5.5 V

OUT

Optional Bsink

ZSC31015

Bsink

VBP

ExtTemp

VBN

VSS

Sig

VDD

Vgate

0.1

F

Vsupply

Ground

+5.5 to +30 V

OUT

Optional Bsink

BSS169

ZSC31015 Block Diagram

Rail-to-Rail Ratiometric Voltage Output Applications

Absolute Analog Voltage Output Applications

Ordering Examples (See section 11 of the data sheet for additional temperature range options.)

Sales Code

Description

Package

ZSC31015EEB

ZSC31015 Die

— Temperature range: -50°C to +150°C

Unsawn on Wafer

ZSC31015EEC

ZSC31015 Die

— Temperature range: -50°C to +150°C

Sawn on Wafer Frame

ZSC31015EEG1

ZSC31015 SOP8 (150 mil)

— Temperature range: -50°C to +150°C

Tube: add “-T” to sales code. Reel: add “-R”

ZSC31015KIT

ZSC31015

ZACwire™ SSC Evaluation Kit: Communication Board, SSC Board, Sensor

Replacement Board, USB Cable, 5 IC Samples (SOP8 150mil)

(ZACwire™ SSC Evaluation Software can be downloaded from www.IDT.com/ZSC31015)

Kit
