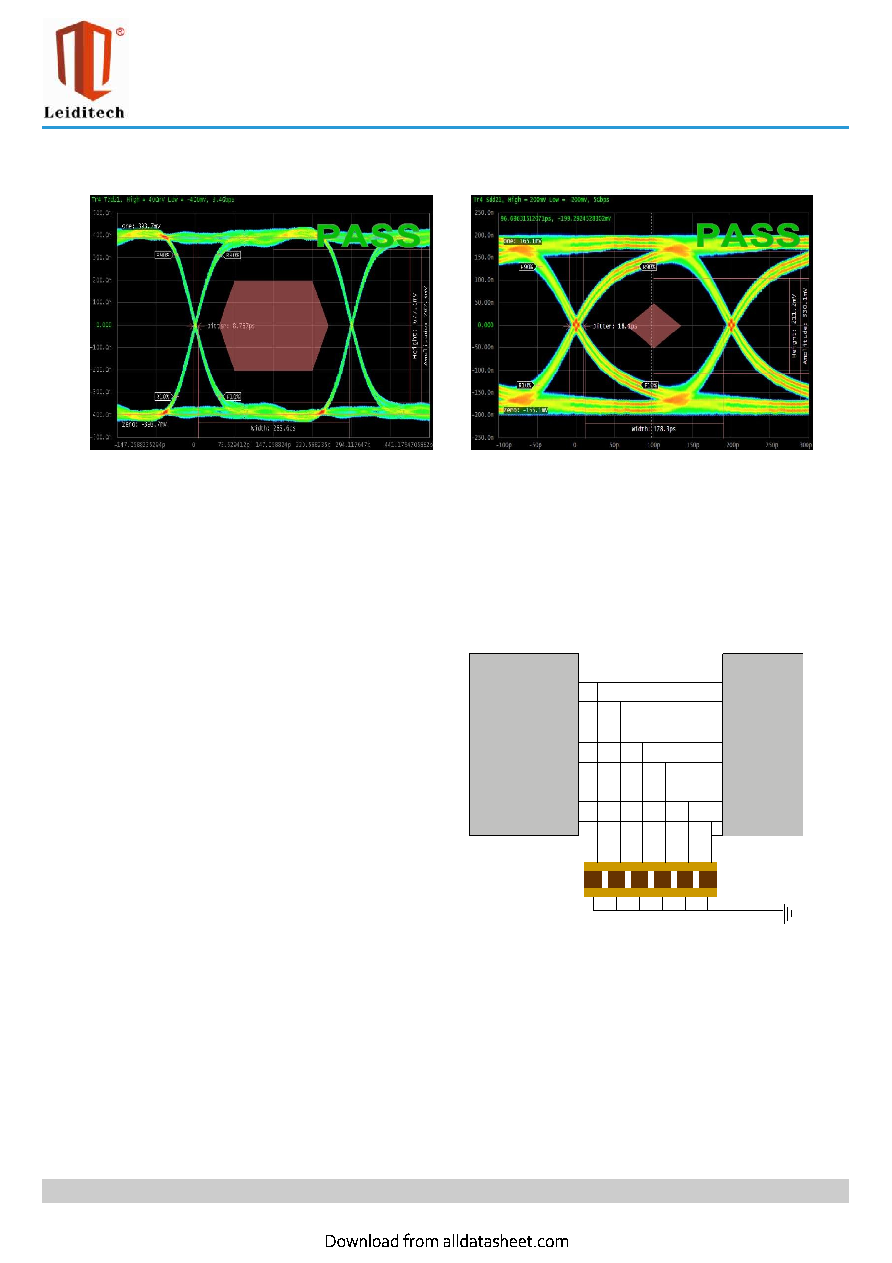

11 Eye Diagram Measurement
HDMI Mask at 3.4 Gbps
USB3.0 Mask at 5.0 Gbps
12 ESD Protection for Signal Line
The PESD is designed for the protection of one bidirectional data line from ESD damage.
Place the PESD as close to the input terminal or connector as possible.
Minimize the path length between the PESD and the protected signal line.
Use ground planes whenever possible.
Signal line to be protected
USB Port
USB 3.0
Host/Controller
Vbus
D-
D+
GND
RX-
RX+
GND
TX-
TX+
PESD1663U005
Rev :
www.leiditech.com
01.06.2015
3/7
