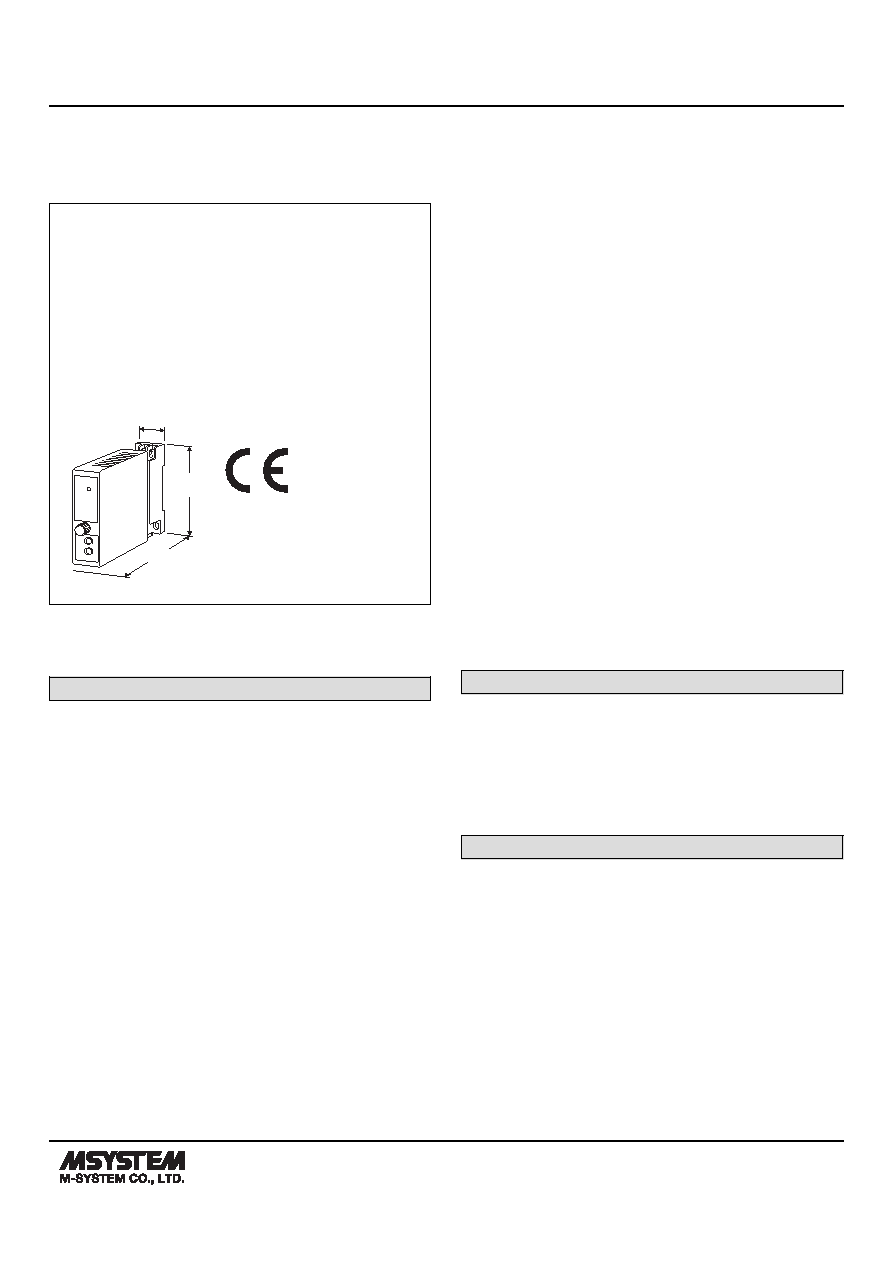

1 / 3 page  MODEL: M2VF3 M2VF3 SPECIFICATIONS ES-5107 Rev.7 Page 1/3 http://www.m-system.co.jp/ Super-mini Signal Conditioners Mini-M Series SIGNAL TRANSMITTER (high-accuracy, ultra-high speed response 30 μsec.) Functions & Features • Converts DC input from a sensor into a standard process signal • Frequency characteristics 12 kHz (-3 dB) • 30-microsecond response Typical Applications • Isolation for a vibration analyzing system • Isolation for Discharge/Charge tester Model SPAN ZERO 23 (.91) 76 (2.99) 124 (4.88) mm (inch) MODEL: M2VF3–[1]4W–R[2] ORDERING INFORMATION • Code number: M2VF3-[1]4W-R[2] Specify a code from below for each of [1] and [2]. (e.g. M2VF3-04W-R/CE/Q) • Special input range (For code 0: e.g. -164 – +164 mV DC) • Specify the specification for option code /Q (e.g. /C01/S01) [1] INPUT Voltage 2W: -100 – +100 mV DC (Input resistance 1 MΩ min.) 4W: -10 – +10 V DC (Input resistance 1 MΩ min.) 5W: -5 – +5 V DC (Input resistance 1 MΩ min.) 8W: -20 – +20 V DC (Input resistance 1 MΩ min.) 0: Specify voltage (Select input range as indicated below) -20 – +20 mV DC -24 – +24 mV DC -40 – +40 mV DC -85 – +85 mV DC -164 – +164 mV DC -200 – +200 mV DC -15 – +15 V DC -25 – +25 V DC -55 – +55 V DC -60 – +60 V DC -300 – +300 V DC * -350 – +350 V DC * -400 – +400 V DC * -600 – +600 V DC * -800 – +800 V DC * * Select ‘/N’ for ‘Standards & Approvals’ code. Multiple installation bases are unable. OUTPUT Voltage 4W: -10 – +10 V DC (Load resistance 2000 Ω min.) POWER INPUT DC Power R: 24 V DC (Operational voltage range 24 V ±10 %, ripple 10 %p-p max.) [2] OPTIONS (multiple selections) Standards & Approvals (must be specified) /N: Without CE /CE: CE marking Other Options blank: none /Q: Option other than the above (specify the specification) SPECIFICATIONS OF OPTION: Q (multiple selections) COATING (For the detail, refer to M-System's web site.) /C01: Silicone coating /C02: Polyurethane coating /C03: Rubber coating TERMINAL SCREW MATERIAL /S01: Stainless steel GENERAL SPECIFICATIONS Construction: Plug-in Connection: M3 screw terminals (torque 0.8 N·m) Screw terminal: Chromated steel (standard) or stainless steel Housing material: Flame-resistant resin (black) Isolation: Input to output to power Overrange input: -5 to +105 % Zero adjustment: -1 to +1 %; multi-turn screwdriver adjustments (front) Span adjustment: 99 to 101 %; multi-turn screwdriver adjustments (front) Power LED: Green LED turns on when the power is supplied. |
