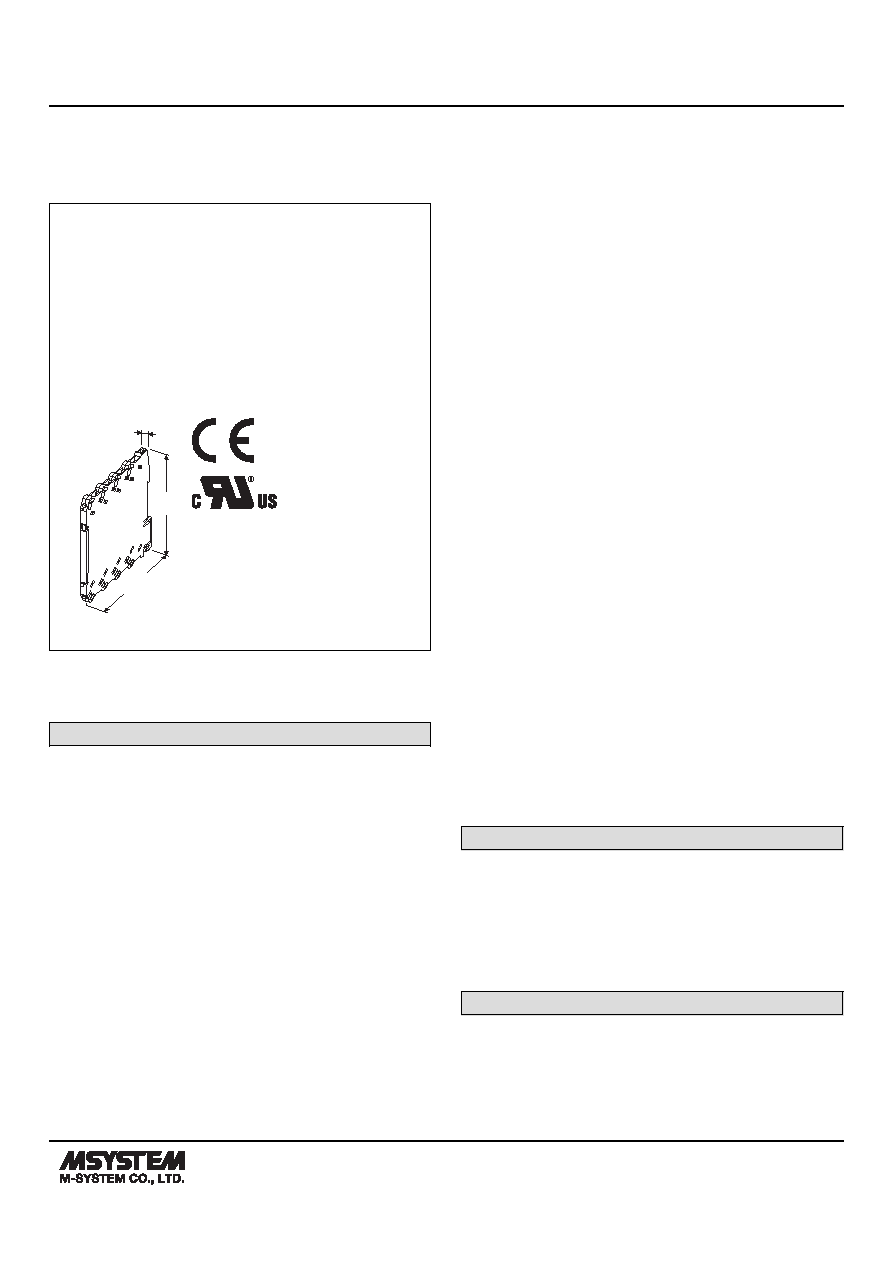

MODEL: M6DXR

M6DXR SPECIFICATIONS

ES-7833 Rev.14 Page 1/4

http://www.m-system.co.jp/

Euro Terminal Ultra-Slim Signal Conditioners M6D Series

RTD TRANSMITTER

(PC programmable)

Functions & Features

• 5.9-mm wide ultra-slim design

• Low profile allows the M6D module mounted in a 120-mm

deep panel

• Accepts direct input from an RTD and provides an

isolated, linearized DC signal

• Linearization and burnout protection

• PC programmable

• High-density mounting

• Power indicator LED

5.9 (.23)

94

(3.70)

102

(4.02)

mm (inch)

MODEL: M6DXR–[1][2]–R[3]

ORDERING INFORMATION

• Code number: M6DXR-[1][2]-R[3]

Specify a code from below for each [1] through [3].

(e.g. M6DXR-4Z1-R/UL/Q)

• Temperature range (e.g. 0 – 100°C)

• Output range (e.g. 4 – 20 mA DC)

• Specify the specification for option code /Q

(e.g. /C01/SET)

[1] INPUT RTD

1: JPt 100 (JIS'89)

(Usable range: -200 to +500°C, -328 to +932°F; min.span: 20°C, 36°F)

3: Pt 100 (JIS'89)

(Usable range: -200 to +650°C, -328 to +1202°F; min.span: 20°C, 36°F)

4: Pt 100 (JIS'97, IEC)

(Usable range: -200 to +850°C, -328 to +1562°F; min.span: 20°C, 36°F)

5: Pt 50 Ω (JIS'81)

(Usable range: -200 to +649°C, -328 to +1200°F; min.span: 20°C, 36°F)

7: Pt 1000

(Usable range: -200 to +850°C, -328 to +1562°F; min.span: 20°C, 36°F)

9: Cu 10 @25°C

(Usable range: -50 to +250°C, -58 to +482°F; min.span: 20°C, 36°F)

0: Specify (Please provide a resistance table.)

(Configurator software is used to change the input type and

range.

Input code 7, 0 cannot be switched to/from other input

types while its temperature range can be changed. It is not

available to switch from input code 1, 3, 4, 5, and 9 to '7' or

'0'. Be aware above.)

[2] OUTPUT

Current

Z1: Range 0 – 20 mA DC

Voltage

V2: Range -10 – +10 V DC

V3: Range -5 – +5 V DC

(Configurator software is used to change output over the

described range of the selected suffix code.

For changing between suffix codes, set the Output Range

Selector on the side of unit before software adjustment.)

POWER INPUT

DC Power

R: 24 V DC

(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[3] OPTIONS (multiple selections)

Standards & Approvals

blank: CE marking

/UL: UL approval, CE marking

Other Options

blank: none

/Q: Option other than the above (specify the specification)

SPECIFICATIONS OF OPTION: Q (multiple selections)

COATING (For the detail, refer to M-System's web site.)

/C01: Silicone coating

/C02: Polyurethane coating

EX-FACTORY SETTING

/SET: Preset according to the Ordering Information Sheet

(No. ESU-7833)

RELATED PRODUCTS

• PC configurator software (model: M6CFG)

Downloadable at M-System’s web site.

A dedicated cable is required to connect the module to the

PC. Please refer to the internet software download site or

the users manual for the PC configurator for applicable

cable types.
