MODEL: 60S

60S SPECIFICATIONS

ES-6612 Rev.3 Page 4/5

http://www.m-system.co.jp/

60S

DLA1

6 7 8

DAL4

60S

DLA1

6 7 8

22LA1

DLA1

60S

6 7 8

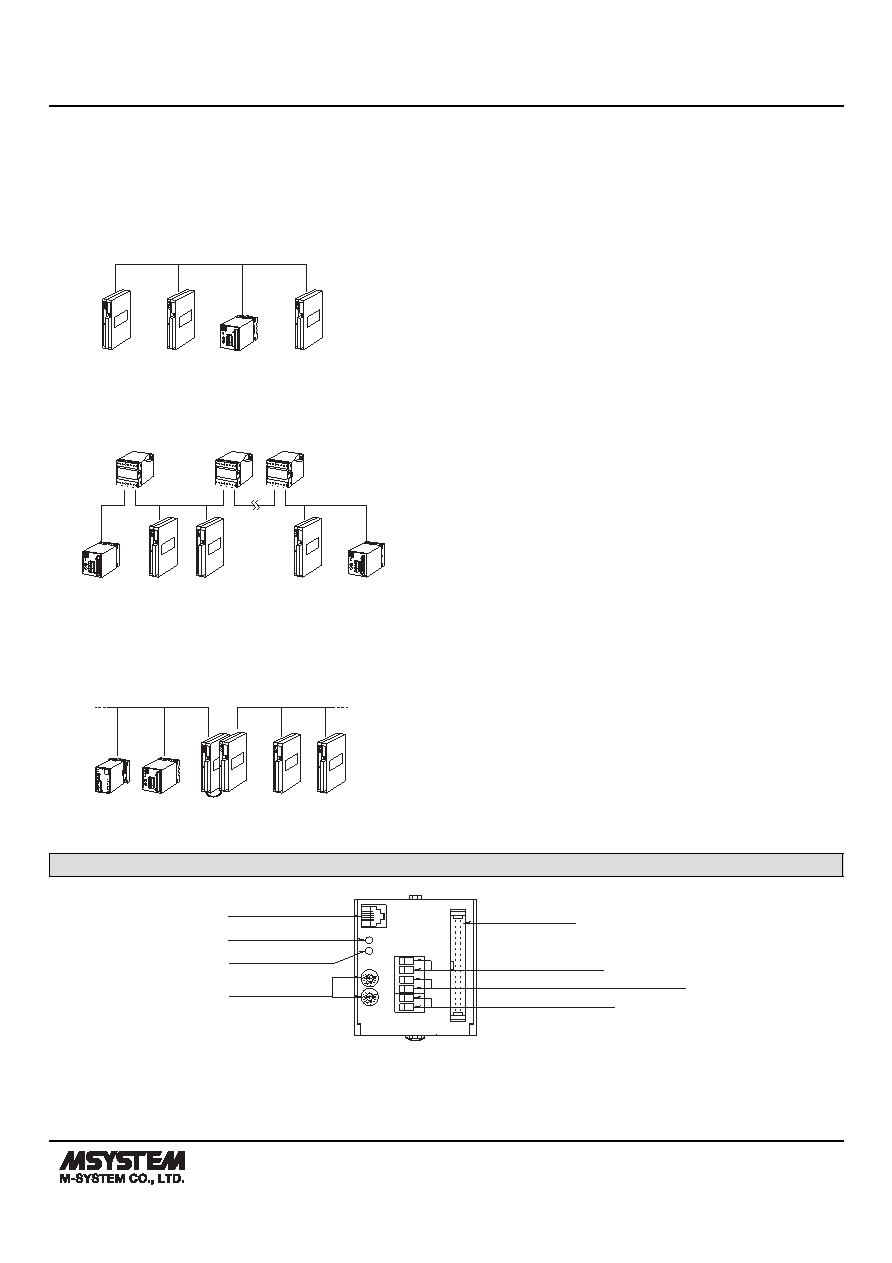

TRANSMISSION LINE CONFIGURATION

The multi-drop transmission line containing 22LA1, DLA1

and 60S modules should meet the following conditions.

Contact M-System's sales office or representatives when

designing.

A) 10 kilometers at maximum in total system.

B) 60S module plus DLA1 units: One multitransmission

line containing a 60S module can consist of a maximum

of 16 units within the total distance of 500 m.

C) 60S modules, DLA1 units plus Repeater (model:

DAL4): DAL4 units can expand the total distance.

(6 DAL4 units max.)

D) 60S module, 22LA1 module plus DLA1 units: The

total distance of a section consisting of 60S and 22LA1

modules is less than 500 meters. They can be connected

to DLA1 units via a DLA1-7 unit.

(Eight DLA1-7 units max.)

EXTERNAL VIEW

CN1

I/O Connector

Power Indicator LED

RUN Indicator LED

Station No. Setting

Rotary Switches

Modular Jack

for Factory Calibration

SIN-NET Terminals

Terminals for Terminating Resistor

RUN Contact Output

PWR

RUN

345

PU-2x

SA1

SA2
