MODEL: 60D
60D SPECIFICATIONS
ES-6604 Rev.15 Page 3/4
https://www.m-system.co.jp/

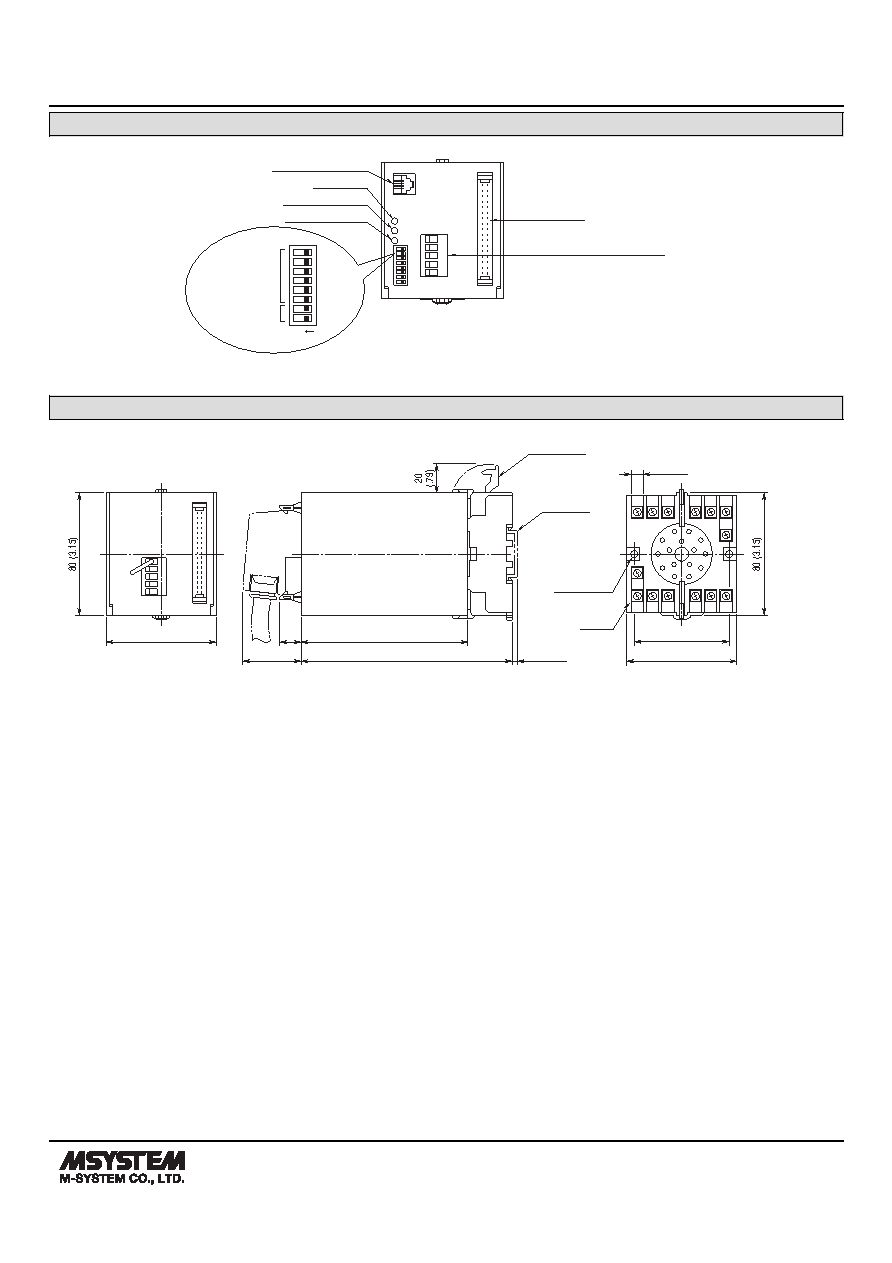

EXTERNAL VIEW
MS
NS
CN1
PWR
I/O Connector
Euro Type Connector Terminal
for DeviceNet
NA1
NA0
NA2
NA3
NA4
NA5
DR0
DR1
ON
Node
Address
Setting
Baud Rate
Setting
NS Indicator LED
MS Indicator LED
Power LED
PU-2x Modular Jack
EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)
14
(.55)
38 (1.50)
72 (2.83)
109 (4.29)
139 (5.47)
[3.3 (.13)]
CLAMP
(top & bottom)
DIN RAIL
35mm wide
•When mounting, no extra space is needed between units.
60 (2.36)
72 (2.83)
7.8 (.31)
2–4.5 (.18) dia.
MTG HOLE
25 (.98) deep
14–M3.5
SCREW
12
5
6
14
11
1
10
15
4
3
2
7
9
8
