MODEL: 60D

60D SPECIFICATIONS

ES-6604 Rev.15 Page 4/4

https://www.m-system.co.jp/

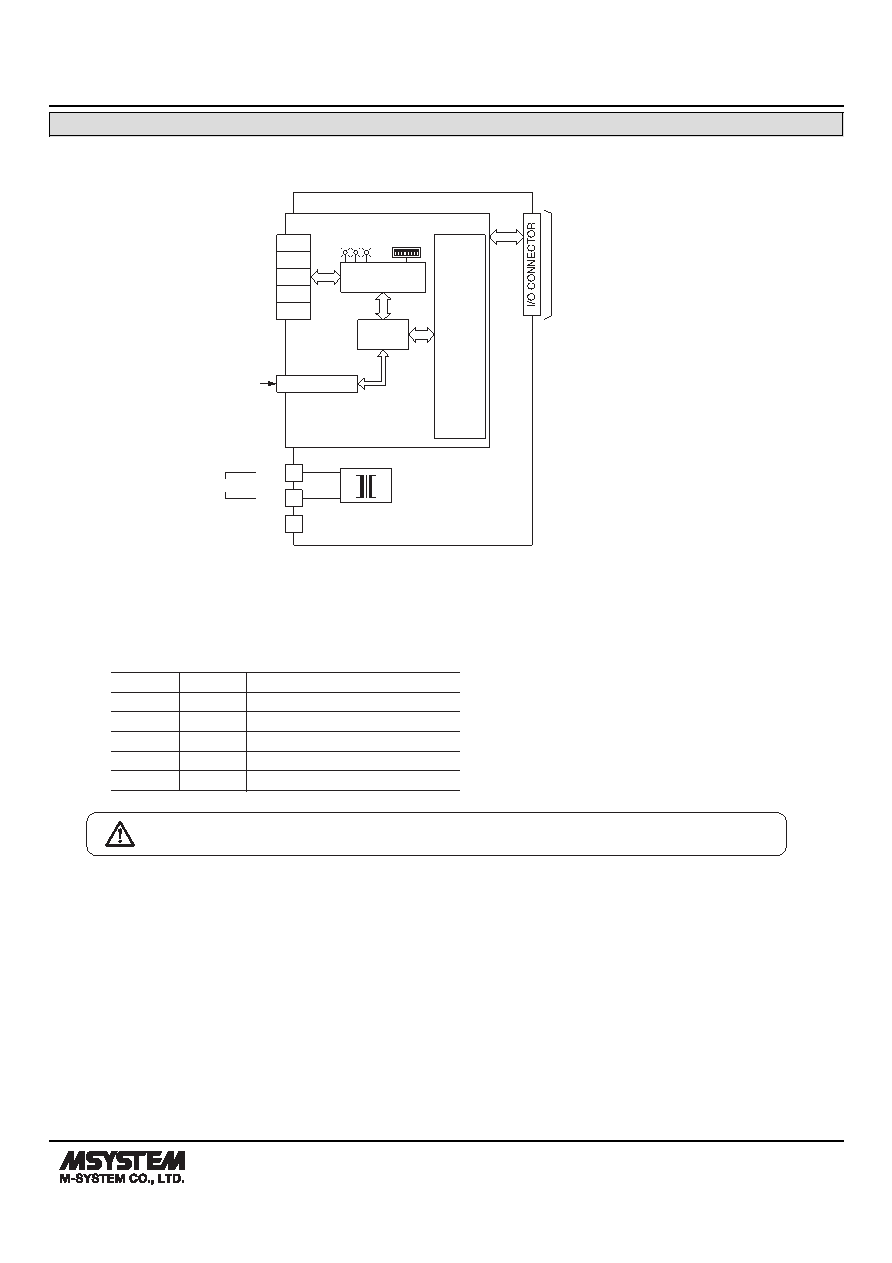

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

Note: In order to improve EMC performance, bond the FG1 terminal to ground.

Caution: FG1 terminal is NOT a protective conductor terminal.

A / D

or

D / A

Conv.

I / O

CPU

DeviceNet

Comm. CPU

SERIAL

TRANSMISSION

LINE

PU-2x

MODULAR JACK

U(+)

V(–)

POWER

7

14

FG1

8

COMMUNICATION MODULE

DIP SW

INDICATOR

LED

V+

CAN_H

Drain

CAN_L

V–

To Other

DeviceNet

Devices

To 10-RACK, 18-RACK etc.

■ CABLE IDENTIFICATION

The following table defines wire insulation colors and

designations. The terminal block is labeled also in

the same colors so that the correct assignment can

be confirmed.

COLOR

DESIG.

DESCRIPTION

black

V –

Power (–)

blue

CAN_L

Signal Low

bare

Drain

Shield

white

CAN_H

Signal High

red

V +

Power (+)

Specifications are subject to change without notice.
