MODEL: LTHZ

LTHZ SPECIFICATIONS

ES-3361 Rev.12 Page 3/3

https://www.m-system.co.jp/

CONNECTION DIAGRAM

U(+)

V(–)

FUSE

LOAD

SOURCE

*The transducer can be powered from the input voltage

when the voltage is sufficiently stable and meets within

the range of auxiliary power supply of the unit specified

in the data sheet/instruction manual.

–

OUTPUT

AUXILIARY POWER*

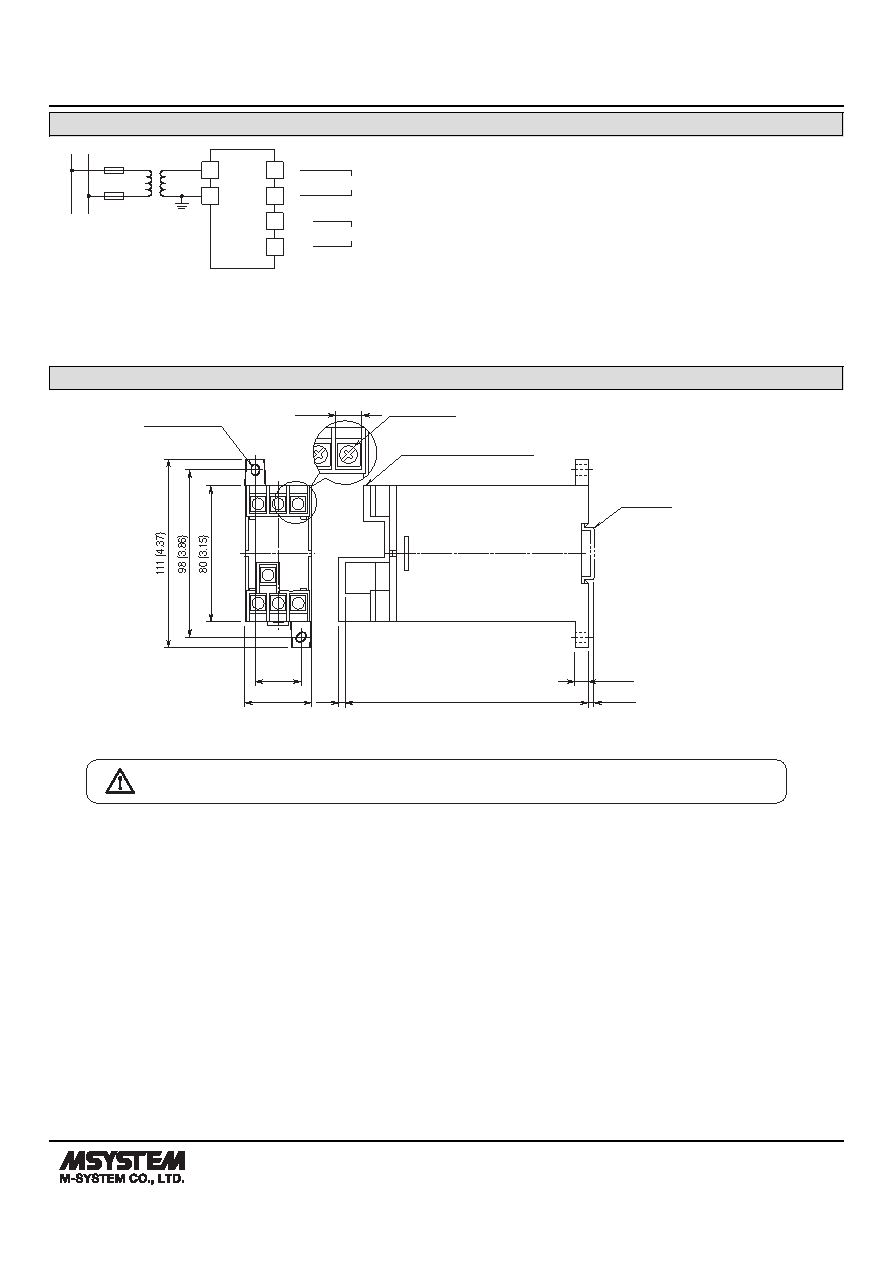

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm [inch]

[4 (.16)]

143 (5.63)

DIN RAIL

35mm wide

8 (.31)

27 (1.06)

39 (1.54)

• When mounting, no extra space is needed between units.

2–M4 MTG HOLE

7–M4 SCREW

10 (.39)

(.12)

TERMINAL COVER (option /T)

Specifications are subject to change without notice.
