MODEL: MDP-JS

MDP-JS SPECIFICATIONS

ES-8132 Rev.11 Page 3/4

http://www.m-system.co.jp/

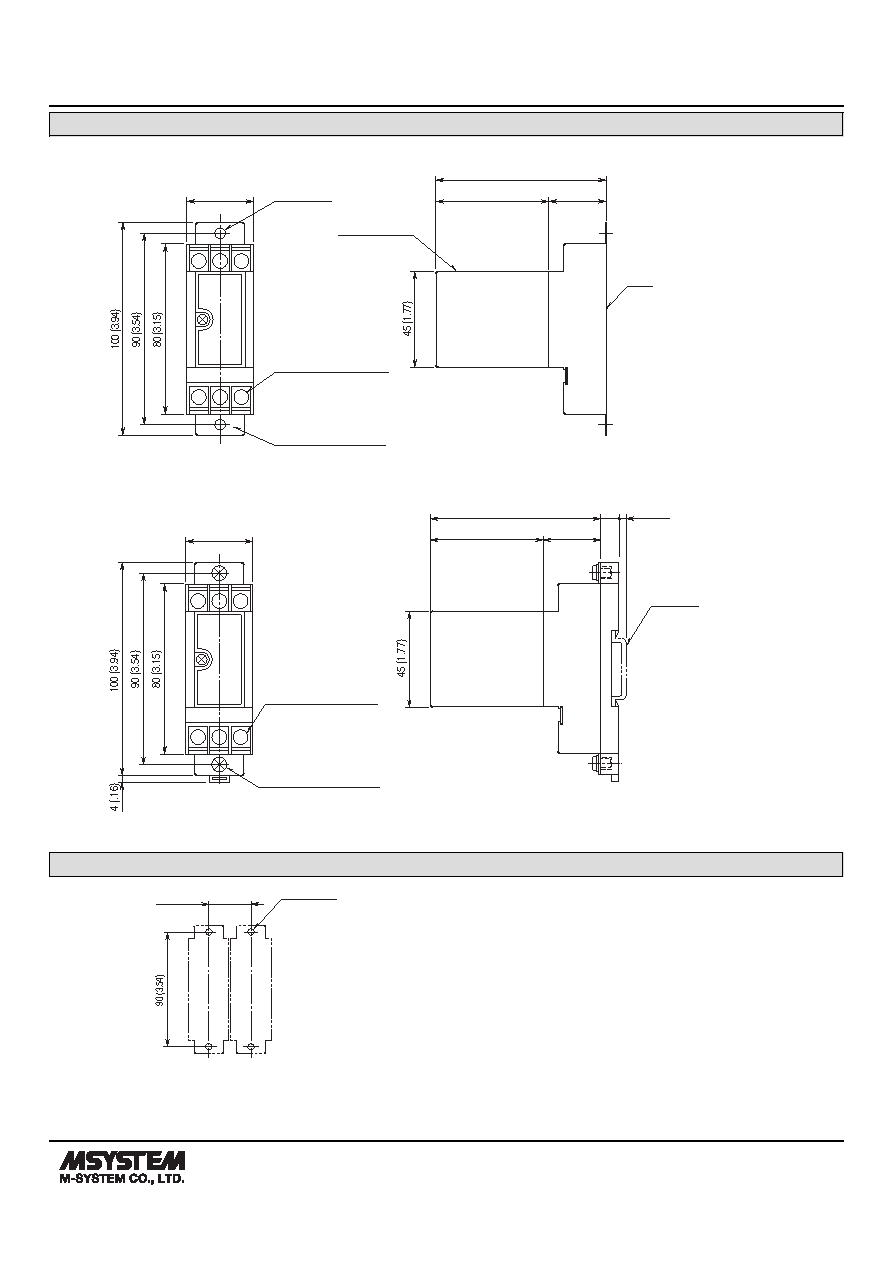

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

B

C

2

3

A

1

31.5 (1.24)

2–5 (.20) dia.

MTG HOLE

6–M4 TERMINAL SCREW

GROUND TERMINAL (G)

(used as mounting bracket)

27 (1.06)

53 (2.09)

80 (3.15)

HEAD ELEMENT

BASE

31.5 (1.24)

6–M4 TERMINAL SCREW

27 (1.06)

53 (2.09)

80 (3.15)

DIN RAIL

35mm wide

B

C

2

3

A

1

8.5

(.33) [3.3 (.13)]

2–M4 MOUNTING SCREW

(used as ground terminal (G))

■ STANDARD

■ WITH DIN RAIL MOUNTING ADAPTER

MOUNTING REQUIREMENTS unit: mm (inch)

33 (1.30) min.

2–M4 SCREW
