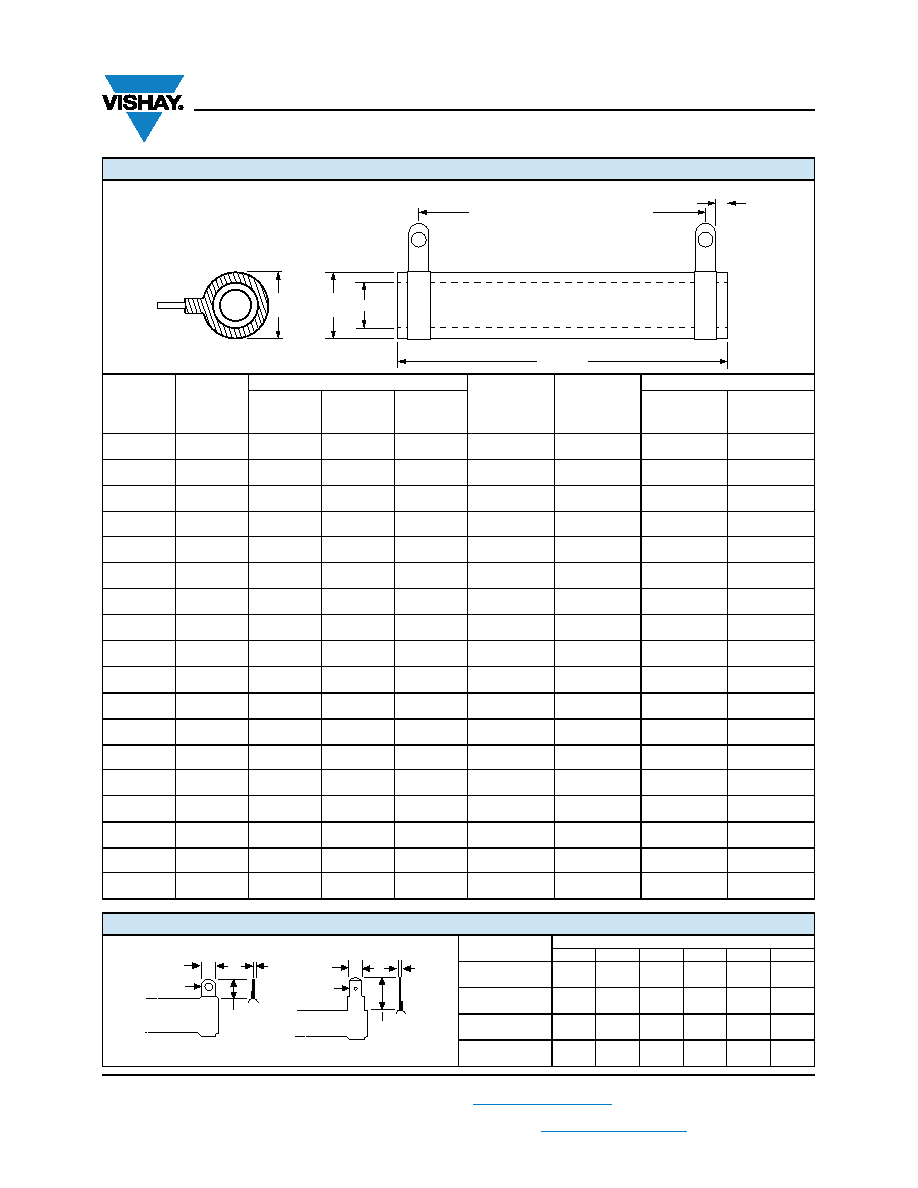

DIMENSIONS in inches (millimeters)

MODEL

A

MAX.

CORE DIMENSIONS

TERMINAL

SETBACK

± 0.031

(0.79)

DISTANCE

CENTER TO

CENTER

(REF.)

TERMINAL DESIGNATION

LENGTH

O.D.

± 0.031

(0.79)

I.D.

± 0.031

(0.79)

STANDARD

OPTIONAL

(QUICK

CONNECT)

FST005

0.406

(10.31)

1.000

(25.40)

0.313

(7.95)

0.188

(4.78)

0.094

(2.39)

0.625

(15.88)

05

14

FST010

0.406

(10.31)

1.750

(44.45)

0.313

(7.95)

0.188

(4.78)

0.094

(2.39)

1.375

(34.93)

05

14

FST020

0.563

(14.30)

2.000

(50.8)

0.438

(11.13)

0.260

(6.60)

0.094

(2.39)

1.625

(41.28)

02

14

FST20A

0.563

(14.30)

2.000

(50.8)

0.438

(11.11)

0.313

(7.94)

0.094

(2.38)

1.625

(41.28)

02

14

FST025

0.688

(17.48)

2.000

(50.8)

0.563

(14.30)

0.313

(7.95)

0.094

(2.39)

1.562

(39.67)

06

15

FST25A

0.906

(23.01)

2.000

(50.8)

0.750

(19.05)

0.500

(12.70)

0.094

(2.39)

1.562

(39.67)

06

15

FST25B

0.770

(19.56)

2.000

(50.8)

0.625

(15.88)

0.453

(11.51)

0.094

(2.39)

1.562

(39.67)

06

15

FST050

0.688

(17.48)

4.000

(101.6)

0.563

(14.30)

0.313

(7.95)

0.094

(2.39)

3.562

(90.47)

06

15

FST50A

0.906

(23.01)

4.000

(101.6)

0.750

(19.05)

0.500

(12.70)

0.062

(1.57)

3.626

(92.10)

06

15

FST50B

0.906

(23.01)

4.500

(114.3)

0.750

(19.05)

0.547

(13.89)

0.125

(3.18)

4.000

(101.60)

06

15

FST075

0.688

(17.48)

6.000

(152.4)

0.563

(14.30)

0.313

(7.95)

0.094

(2.39)

5.562

(141.27)

06

15

FST75A

0.906

(23.01)

6.000

(152.4)

0.750

(19.05)

0.500

(12.70)

0.094

(2.39)

5.562

(141.27)

06

15

FST080

1.313

(33.34)

4.000

(101.6)

1.125

(28.58)

0.750

(19.05)

0.219

(5.56)

2.812

(71.42)

20

15

FST100

0.906

(23.01)

6.500

(165.1)

0.750

(19.05)

0.500

(12.70)

0.125

(3.18)

6.000

(152.40)

06

15

FST130

1.313

(33.35)

6.500

(165.1)

1.125

(28.58)

0.750

(19.05)

0.282

(7.16)

5.374

(136.50)

20

15

FST160

1.313

(33.35)

8.500

(215.9)

1.125

(28.58)

0.750

(19.05)

0.267

(6.78)

7.404

(188.06)

20

15

FST175

1.313

(33.34)

8.500

(215.9)

1.125

(28.58)

0.750

(19.05)

0.219

(5.56)

7.312

(185.72)

20

15

FST200



FST225

1.313

(33.35)

10.500

(266.7)

1.125

(28.58)

0.750

(19.05)

0.266

(6.76)

9.406

(238.91)

20

15

TERMINAL DIMENSIONS in inches (millimeters)

DIMENSIONS

TERMINAL STYLE

20

02

05

06

14

15

WIDTH A

0.375

(9.53)

0.188

(4.76)

0.188

(4.76)

0.250

(6.35)

0.188

(4.76)

0.250

(6.35)

HEIGHT B

0.562

(14.07)

0.393

(9.98)

0.393

(9.98)

0.500

(12.70)

0.563

(14.29)

0.594

(15.08)

DIAMETER C

0.204

(5.18)

0.133

(3.38)

0.133

(3.38)

0.172

(4.36)

0.050

(1.27)

0.065

(1.65)

THICKNESS D

0.020

(0.51)

0.020

(0.51)

0.020

(0.51)

0.020

(0.51)

0.020

(0.51)

0.031

(0.79)

A

O.D.

I.D.

TERMINAL SETBACK

DISTANCE CENTER TO CENTER

LENGTH

D

Styles 14 and 15

B

A

C

B

D

C

A

Style 02, 05, 06,

and 20
